Battery Marking

Battery Marking

Performance
The performance of a car battery is normally expressed as follows:
- Cold cranking amperes, CCA.
- Reserve capacity, RC.
- Capacity, C20 (in certain cases).

Recommended charge current

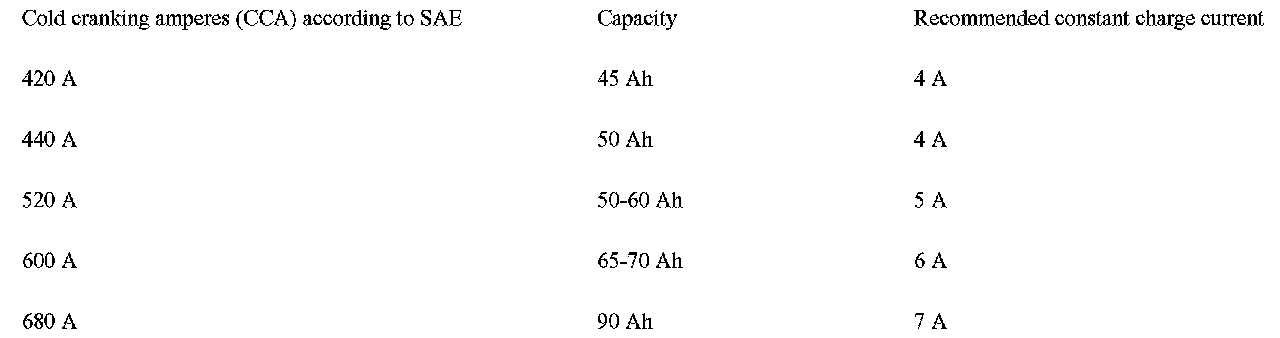

The cold cranking amperes according to the SAE and DIN norms and the corresponding capacity and recommended charge current are shown in the table below

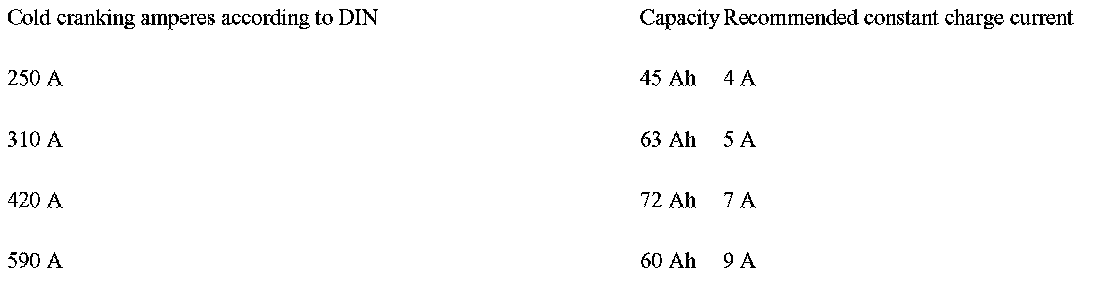

Cold cranking amperes according to the DIN norm and the corresponding capacity and recommended constant charge current

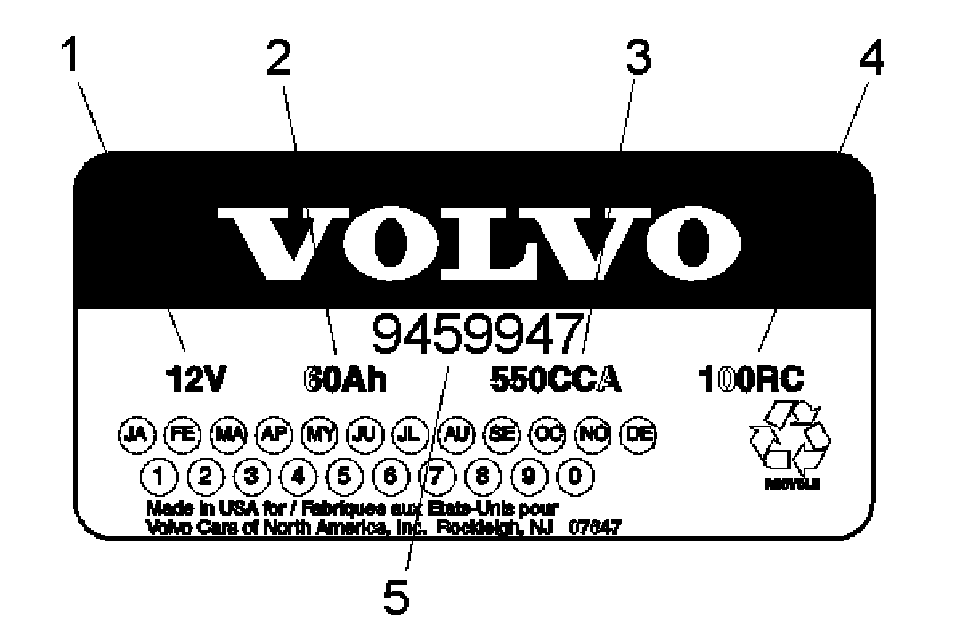

Volvo battery labels

American labels







1. The nominal terminal voltage of the battery (12 V)*
2. Capacity (60 Ah)
3. Cold cranking amperes, CCA (550 A)
4. Reserve capacity, RC (100 min)
5. Volvo part number (9459947).

* 12 V is the nominal terminal voltage. This means that the battery has a stand-by voltage of 12.72 V when fully charged. Note that a battery with a stand-by voltage of 12 V is only charged to approximately 35% of capacity.
