Pressure, Vacuum and Temperature Specifications

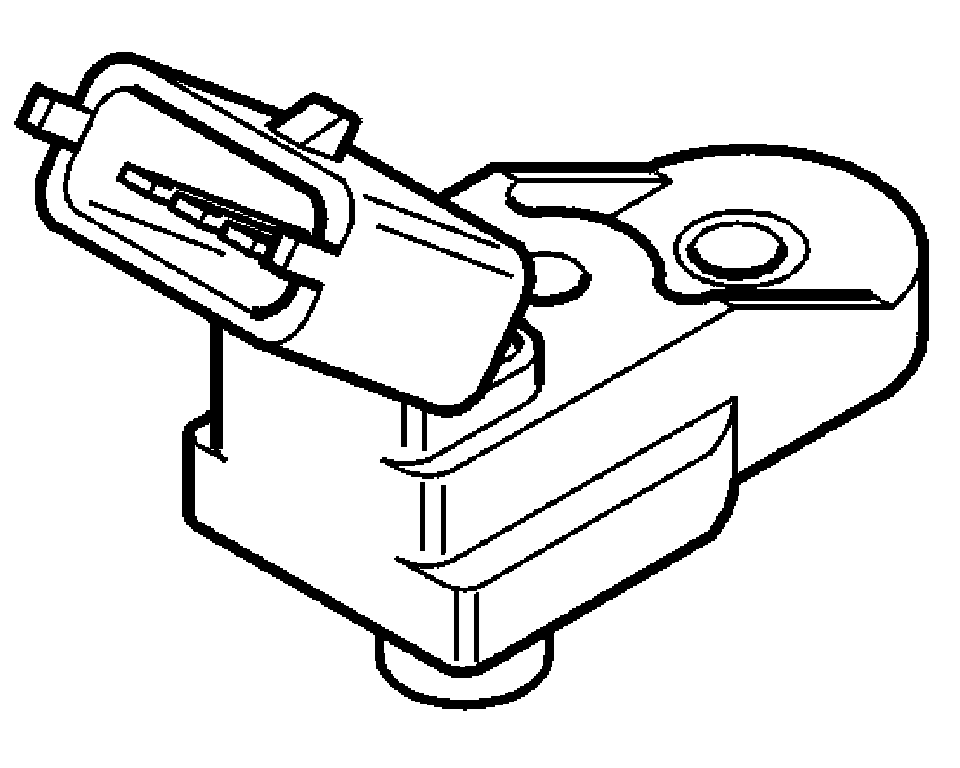

Boost Pressure Sensor







Piezo resistive lineal pressure sensor. Measurement range 20.0-250 kPa.

P (kPa) V/(Volts)
90.0 1.69
101.3 1.90
150.0 2.80
200.0 3.71
