Oxygen Sensor: Specifications

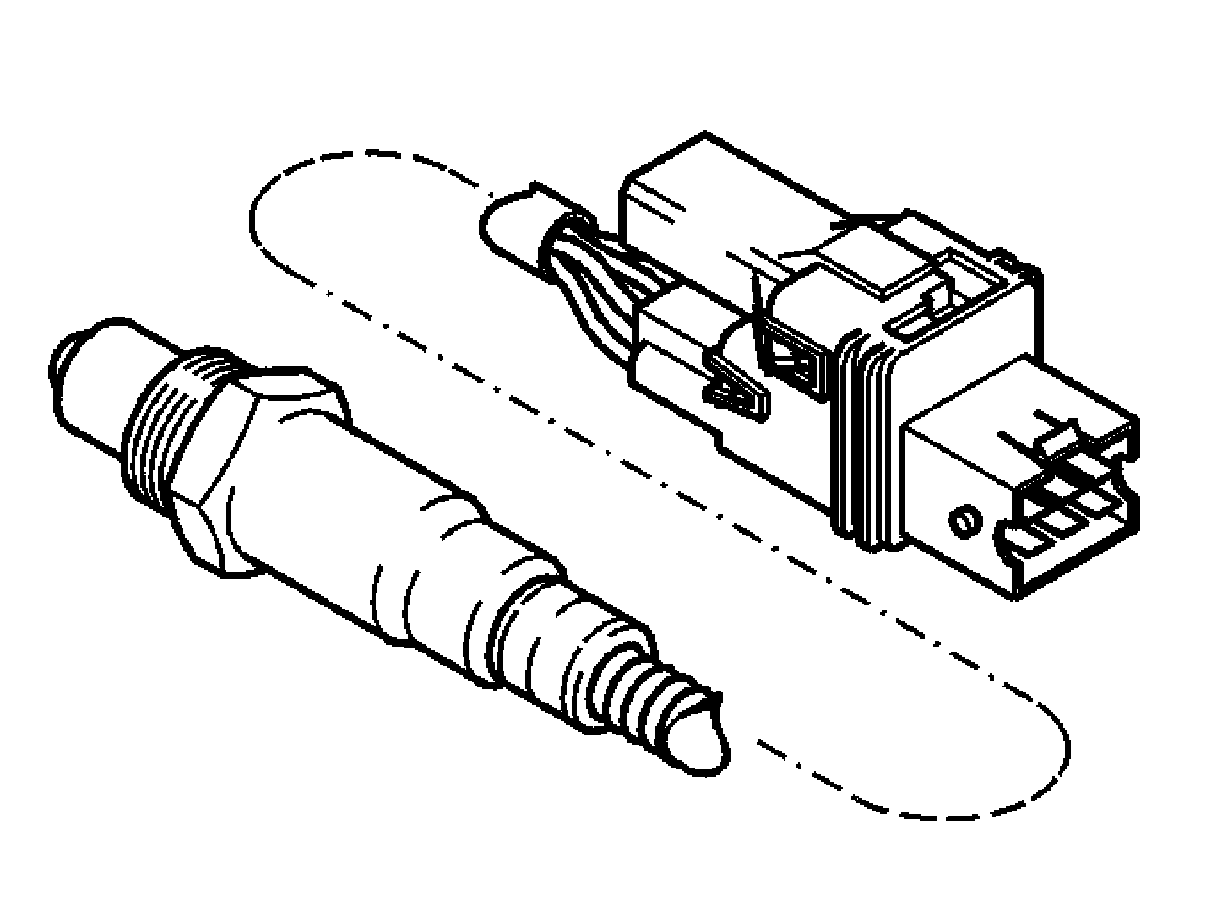

Front Heated Oxygen Sensor (HO2S)







Linear probe

Preheating, front heated oxygen sensor (HO2S)







Resistance approximately 3 Ohms (at 20 degree C)

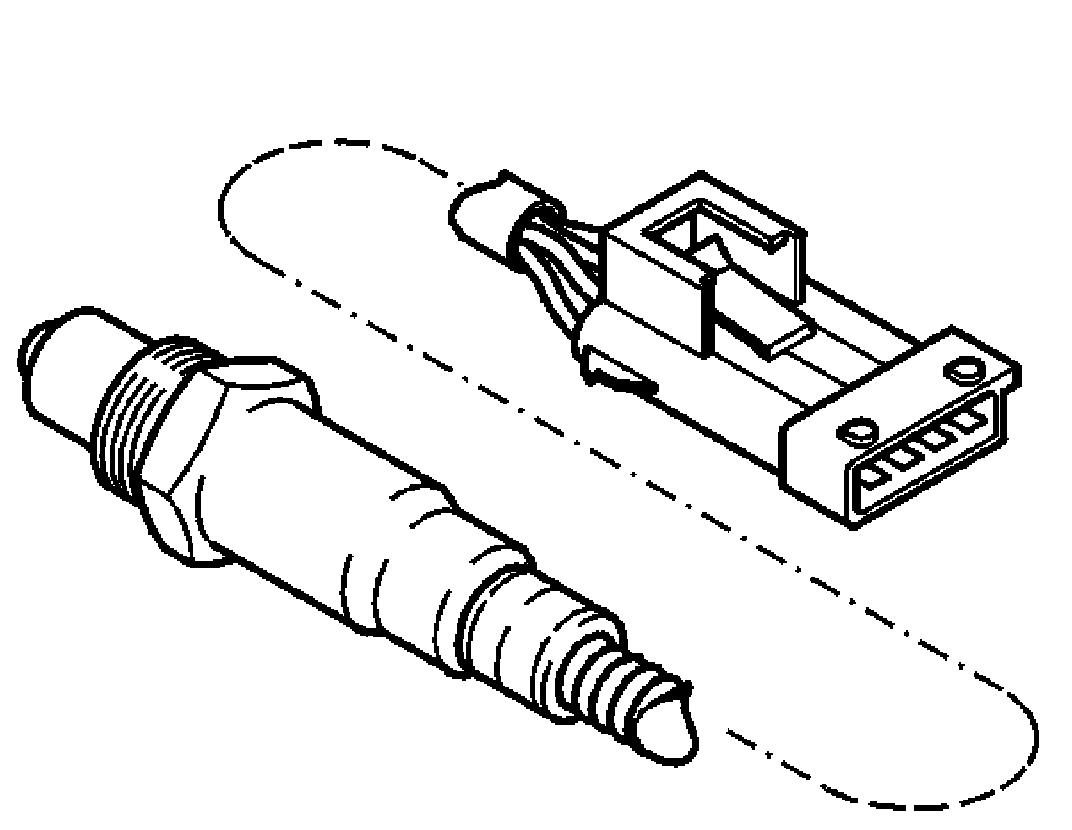

Rear heated oxygen sensor (HO2S)







Binary probe

Preheating, rear heated oxygen sensor (HO2S)







Resistance approximately 10 Ohms (at 20 degree C)
