Backup Lamp Switch: Service and Repair

Back-up lamp switch, replacing

Removal

Removing the back-up lamp switch, gearbox M56 and M58

Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.




- Ignition off
- Remove the air cleaner (ACL) housing
- Disconnect the connector
- Clean around the back-up lamp switch.
- Remove the back-up lamp switch.

Installation

Note! For tightening torques, see Tightening torque Tightening Torque.

Installing back-up lamp switch, gearbox M56 and M58
Install the back-up lamp switch.

Installing the leads




Install the cables in the connector with the opening for the primary lock facing up as illustrated. Press in the secondary lock.

Joining cables

Splice the new connector with cables to the existing wiring. See: Joining the cables Joining the Cables

Installing connectors




Install the connector with cables on the back-up lamp switch.

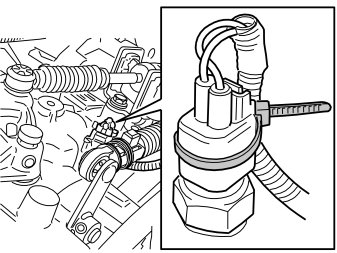

Install a tie-strap as illustrated so that the cable harness is not in contact with the gear selector cable.

Install the air cleaner (ACL) housing.
Test the function.
