Parking Brake Release Switch: Service and Repair

Parking brake switch, replacing

Removal

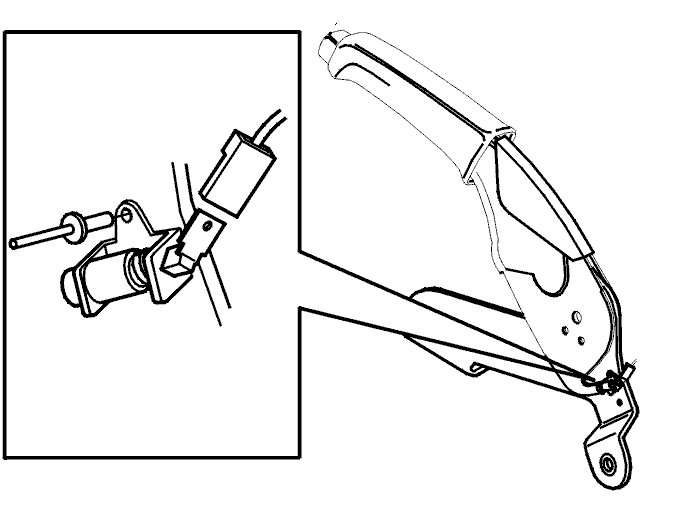

Parking brake switch




- Remove the parking brake lever. See Replacing the parking brake lever Replacing the Parking Brake Lever
- Cut or grind off the rivet head. Remove the remainder of the rivet
- Remove the parking brake switch.

Installation

Parking brake switch
- Rivet the parking brake switch into position. Use pop rivet (937881)
- Install the parking brake lever. See Replacing the parking brake lever Replacing the Parking Brake Lever.
