SRS Connector

Removing the SIPS bag control module connector







NOTE: Take care when separating the connectors.

- If the connector breaks the whole cable harness must be replaced.

NOTE: Always replace the clip if it has been removed.

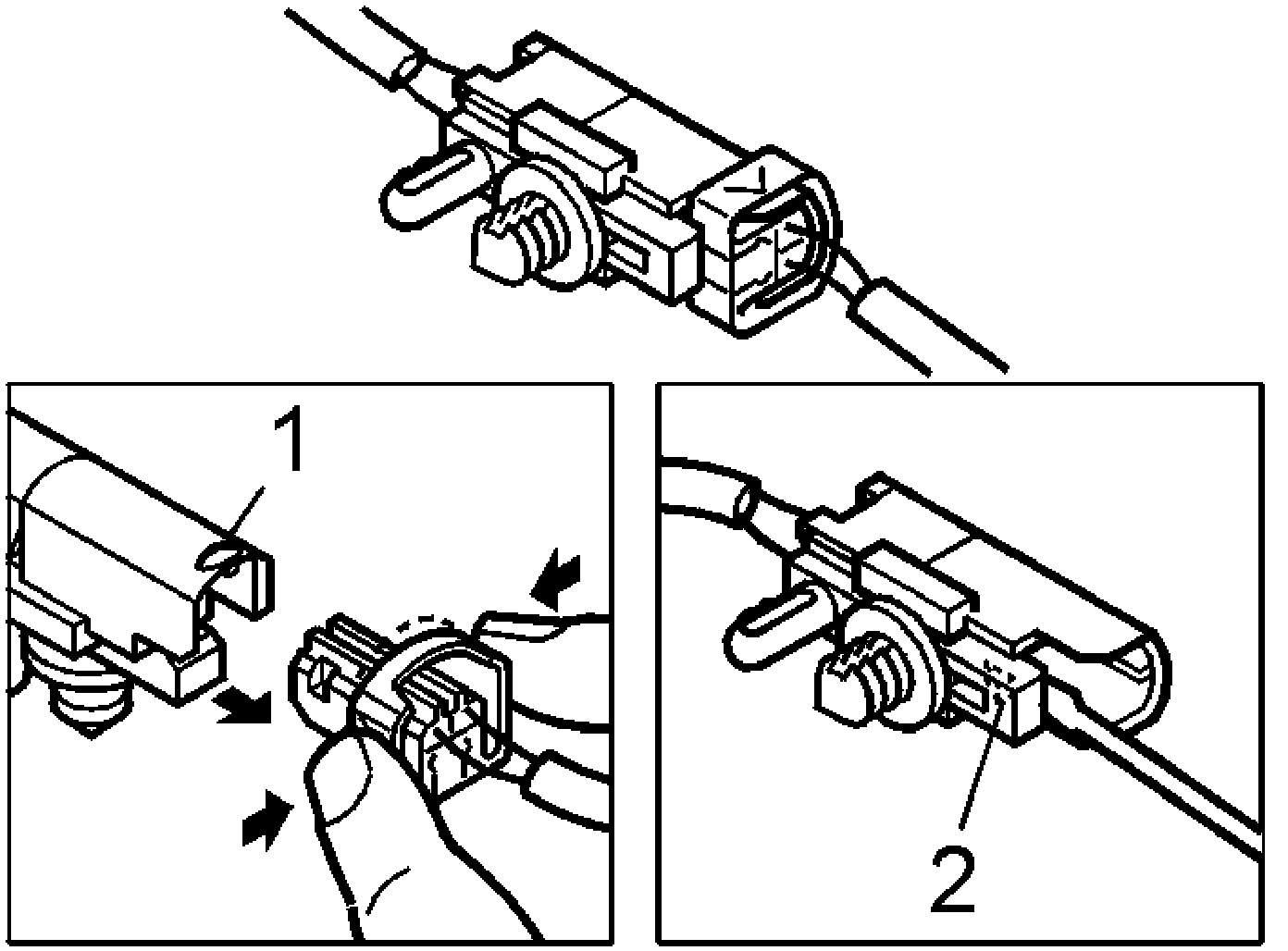

- Press on the side so that the bag goes over the edge (1).
- Separate the connector.
- Bend the clip at the front edge (2).
- Move the clip backwards.
- Remove clip.

Install:
In reverse order.
