Signal Specification, Supplemental Restraint System Module (SRS)

Signal specification





Note! It is important to connect the breakout box and check the ground terminals before taking readings.

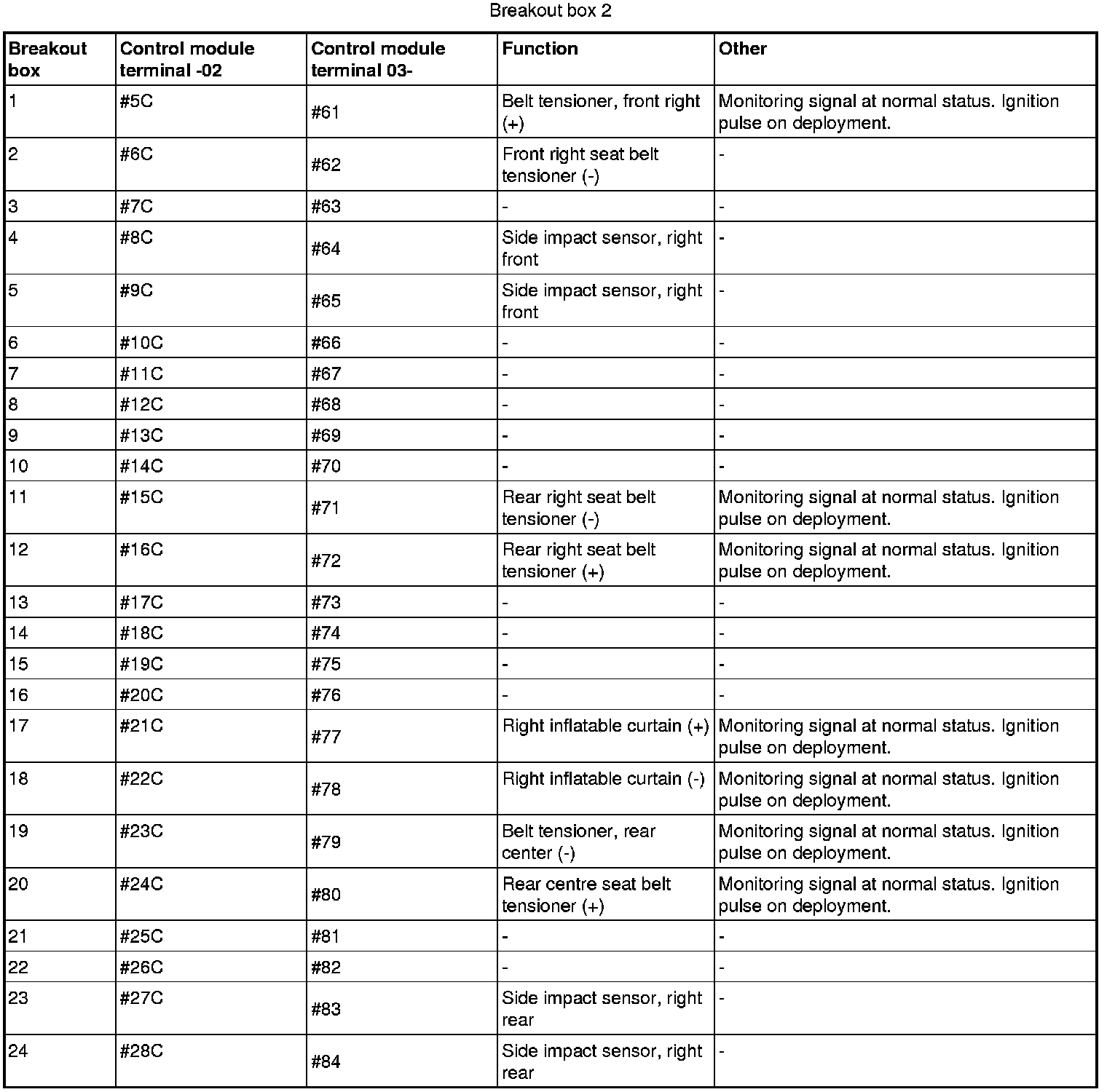

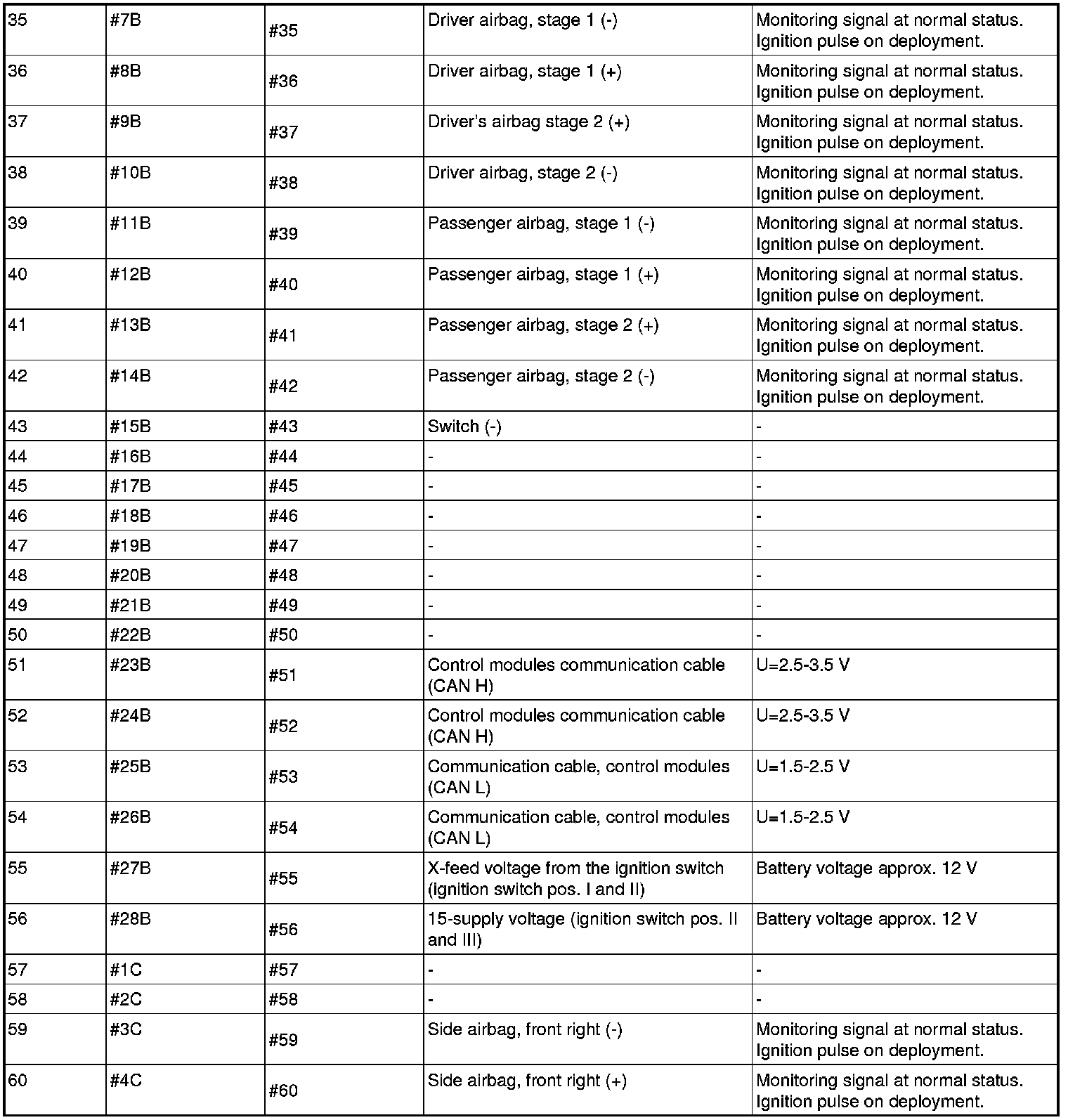

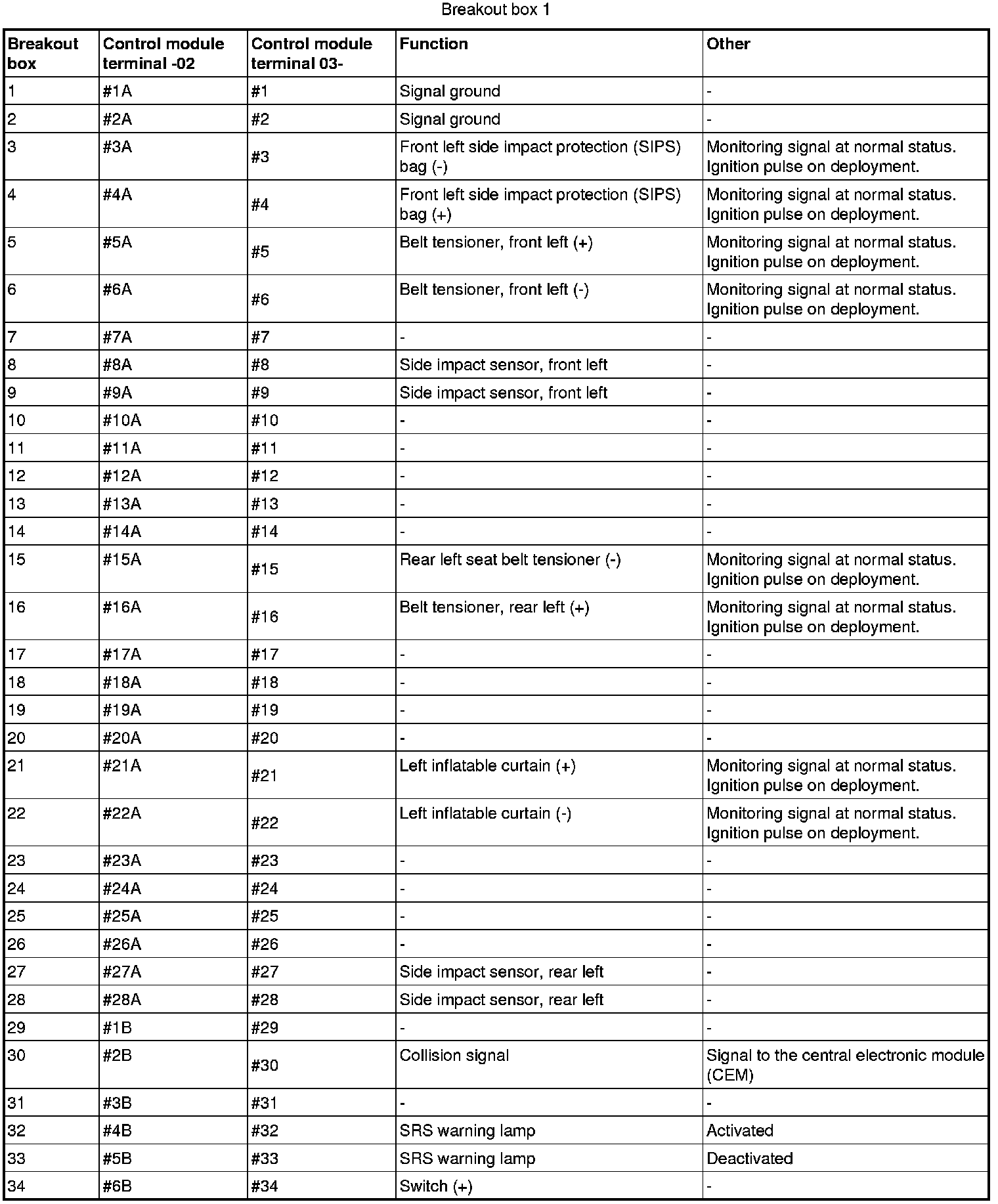

Two breakout boxes are required to take readings from the SRS control module.

Note! The terminals for connector C are split between breakout boxes 1 and 2.From model year 2003, the connectors are numbered 1-84.

- Terminals #1A-#28A correspond to terminals #1-#28
- Terminals #1B-#28B correspond to terminals #29-#56
- #1C-#28C correspond to #57-#84
