Air Bag Systems: Service Precautions

Seat Belts And Other Retention Systems

SRS safety equipment

WARNING: The car has pyrotechnical airbags and seat belt tensioners. The components in the SRS system must be treated very carefully during repair.

This is to help prevent:
1. Personal injury when carrying out repairs
2. Damage to or malfunction of the SRS system.

WARNING: The SRS system must always be worked on by a qualified workshop.

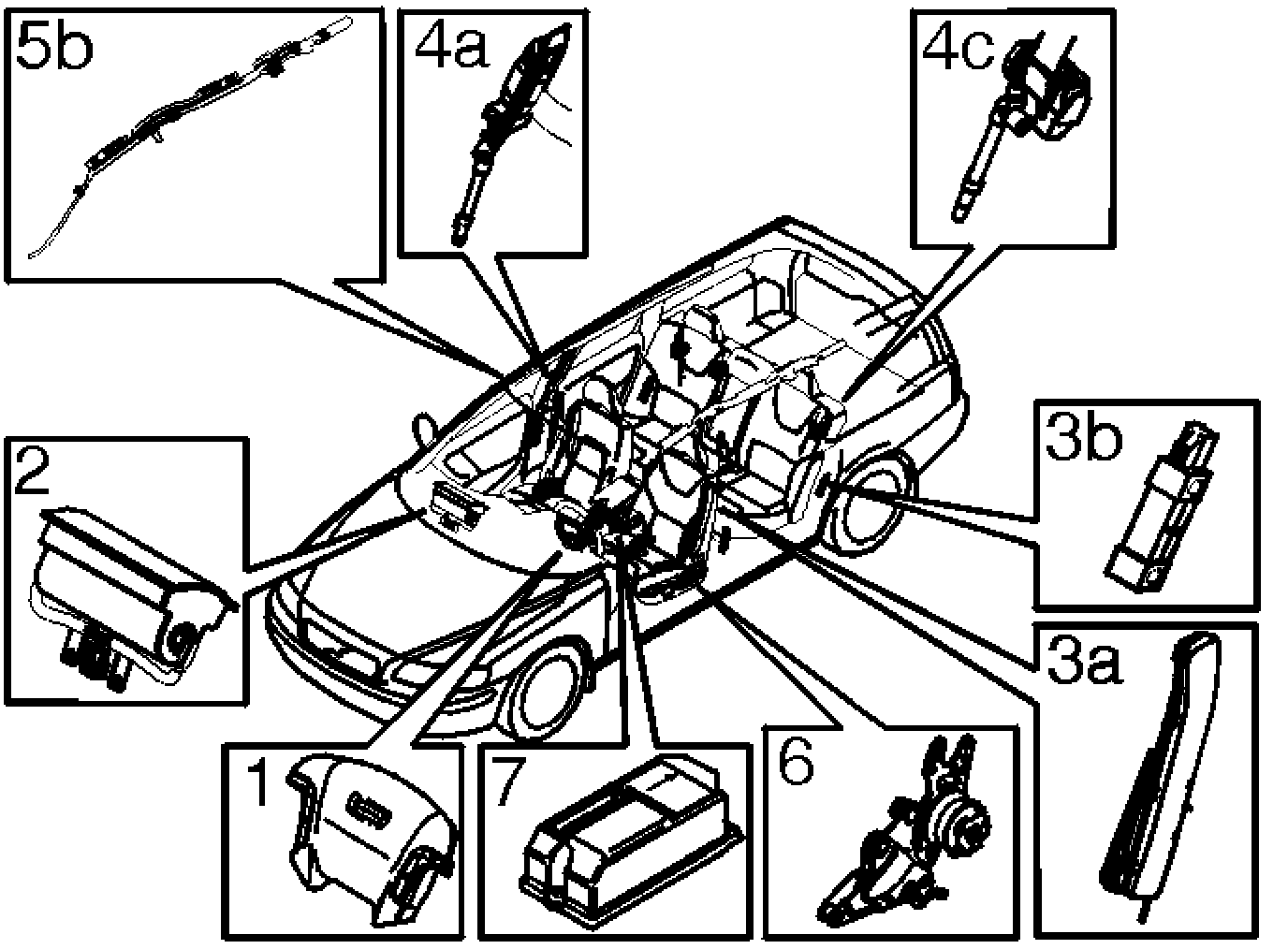

Location of components







1. The steering wheel module.
2. The passenger airbag module.
3a-b. SIPS module (Side Impact Protection System) and Sensors in B- and C-posts
4a. Seat belt with seat belt tensioner, front seat
4c. Seat belt with seat belt tensioner, Rear seat
5b. IC, Inflatable Curtain
6. WHIPS (Whiplash Protection System).
7. The SRS control module.
