Driver's Airbag

Driver's Airbag

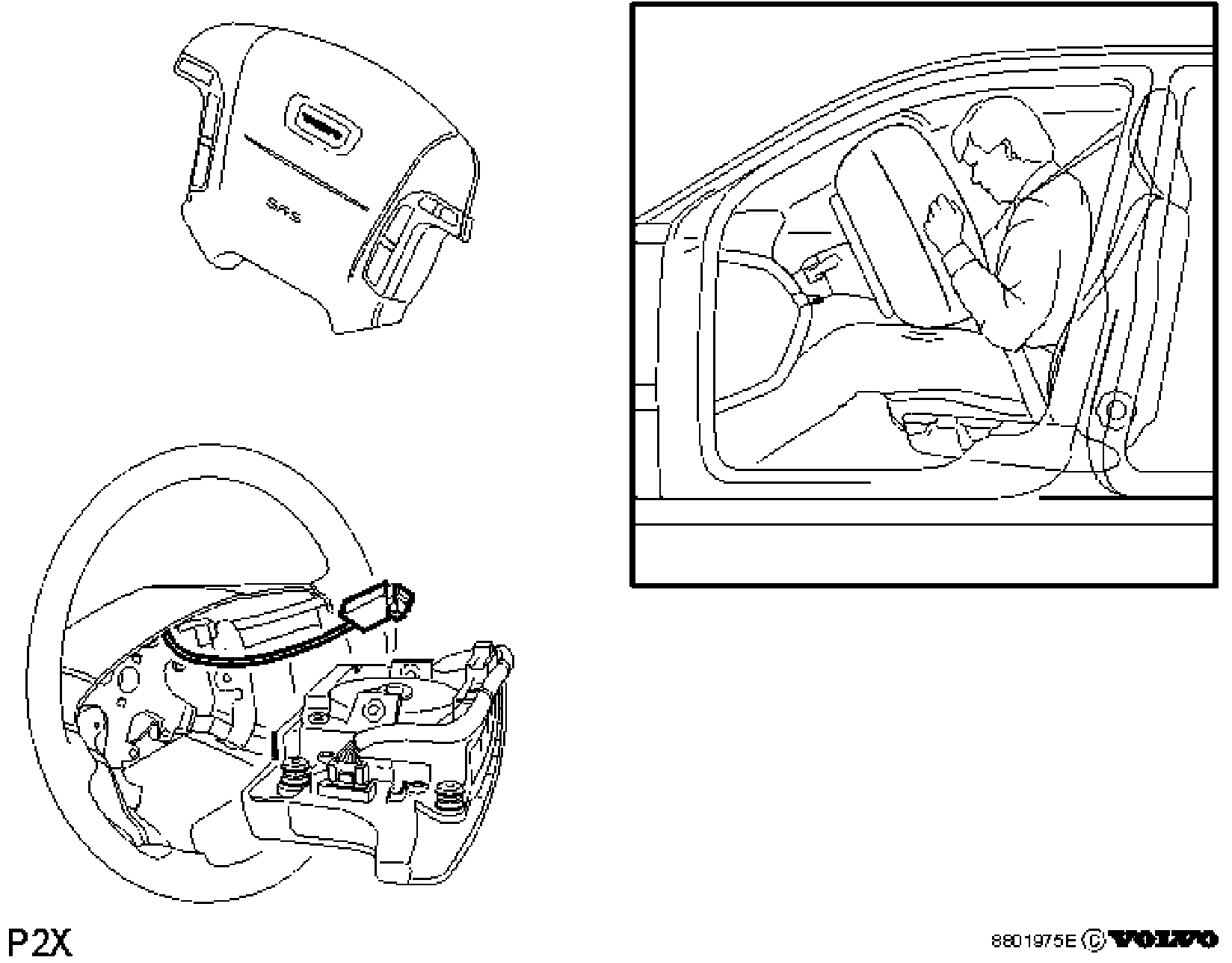

Airbag module
- A new type of pyrotechnic powder charge is used (60 g). It is a more environmentally friendly alternative than natriumaziden which was used previously.
- The shape and mounting of the airbag are completely new. The bracket for operating the horn is now secured to the airbag module which results in less play and gives a better positioning.
- The airbag module is available in three different colors and six different versions, depending on the keypad. The airbag module is available with the following keypad combinations:
- without keypads
- with cruise control keypad
- with audio keypad
- with audio and carphone keypad
- with audio and cruise control keypad
- with audio, carphone and cruise control keypad.
- The air bag is approximately 67 liters when deployed.
- A new type of connector with secondary snap lock is used to connect the airbag to the SRS system.
