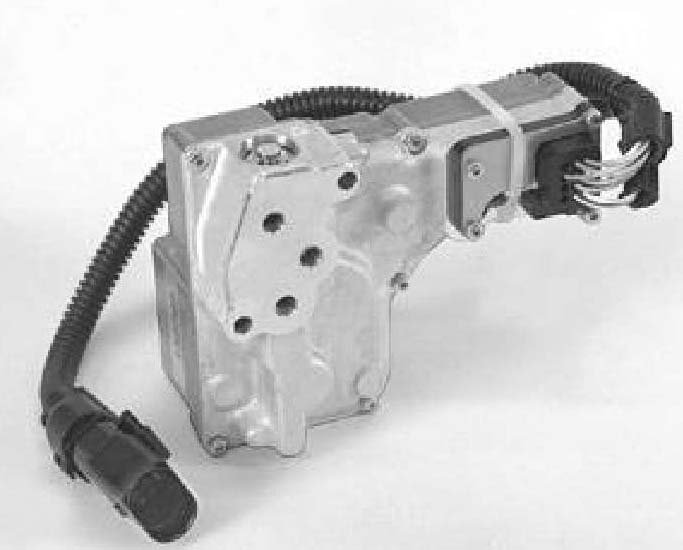

Signal Specification, Control Module For Four Wheel Drive

Signal specification, control module for four wheel drive

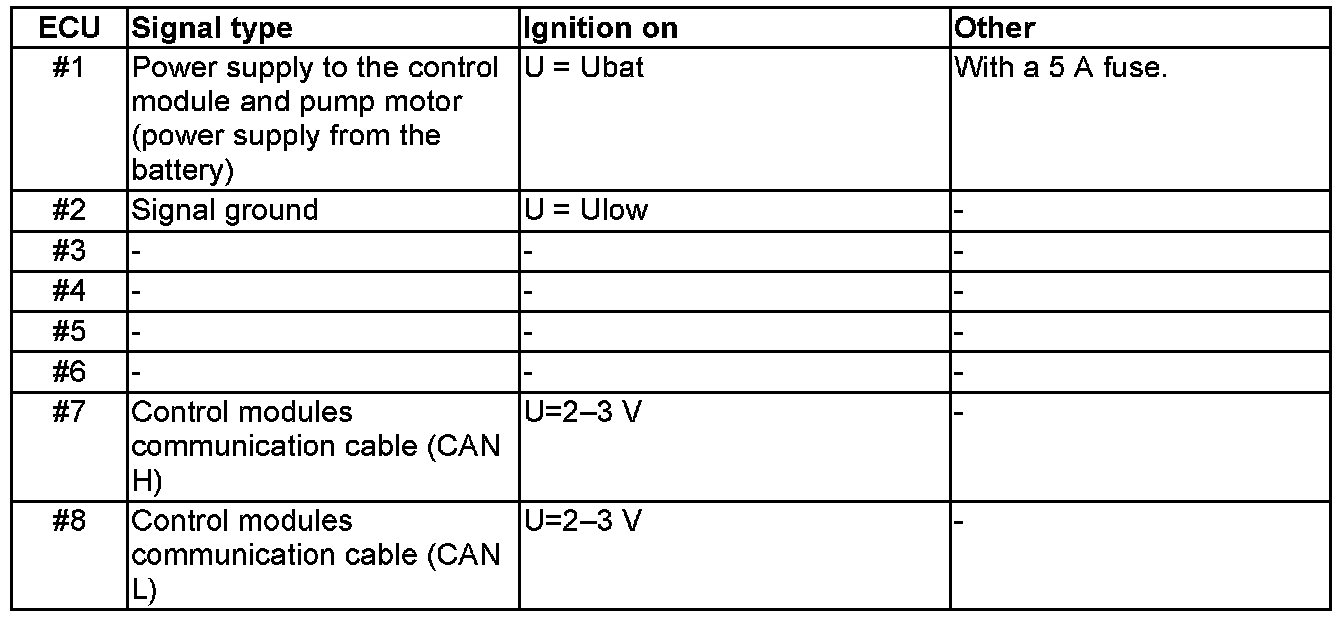

All the values indicated are taken between the terminal in column 1 and terminal #2 (ground). Terminals 3, 4, 5, and 6 are not used.
