Connector B, Transmission

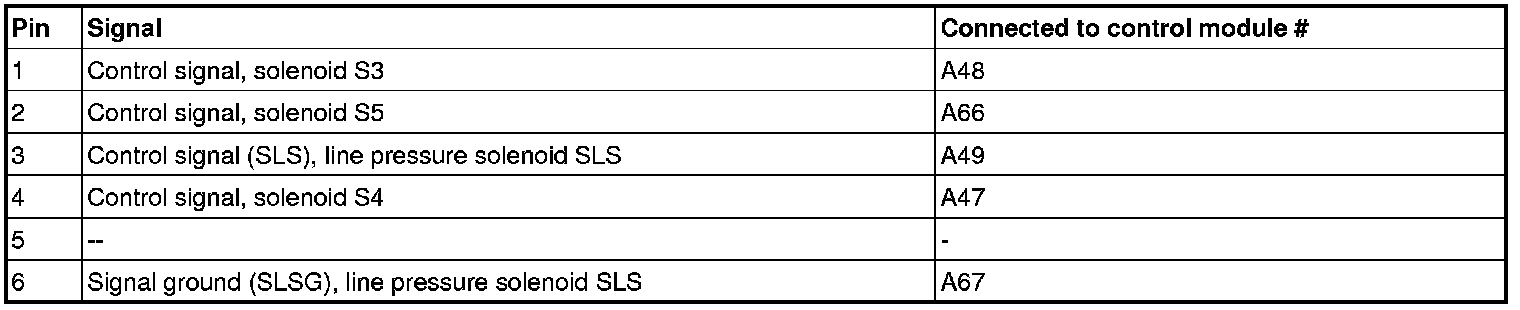

Connector B, transmission

6-pin connector
Control module terminals #A1-#A60 correspond to #A1-#A60 on the breakout box, #A61-#A70 correspond to #B1-#B10 on the breakout box.
