Connector A, Transmission






ConnectorA, transmission

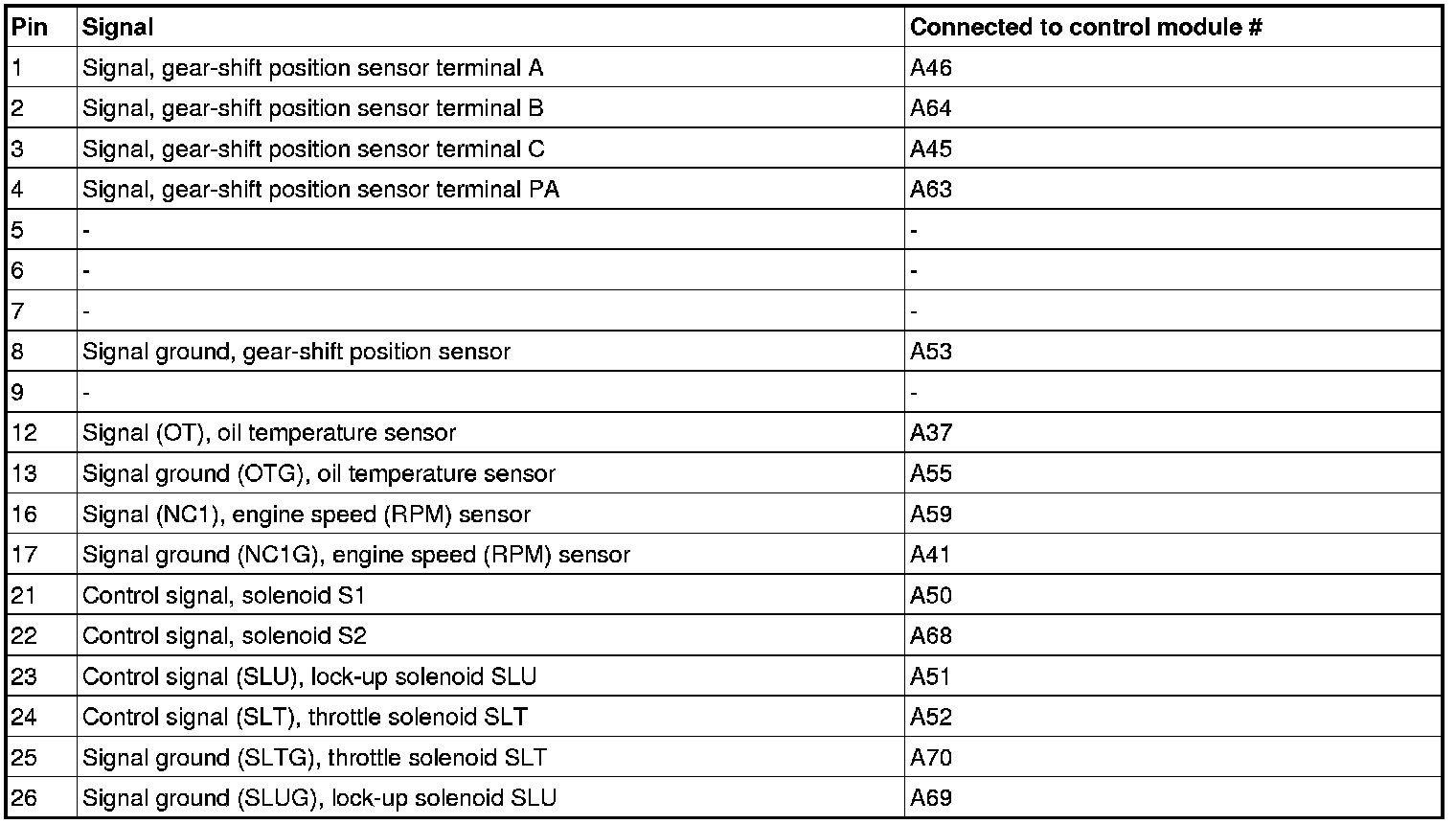

4-way, 26-pin connector




Control module terminals #A1-#A60 correspond to #A1-#A60 on the breakout box, #A61-#A70 correspond to #B1-#B10 on the breakout box.
