Component Specifications

Component Specifications

NOTE: As the illustrations in this service information are used for different model years and / or models, some variation may occur. However, the essential information in the illustrations is always correct.

Pressure Regulator





Line pressure 380 kPa


Mass Air Flow (MAF) Sensor





B52x4 Tx, B6xx4 Sx
Mass air flow (MAF) sensor resistive film. Measurement range 0 -640 kg/h.

Q (kg/h) (Volts)
12.0 1.31
15.0 1.39
30.0 1.69
60.0 2.11

B6284 Tx
Mass air flow (MAF) sensor resistive film. Measurement range 0 - 850 kg/h.

Q (kg/h) V (Volts)
15.0 1.34
30.0 1.63
60.0 2.01
120.0 2.56

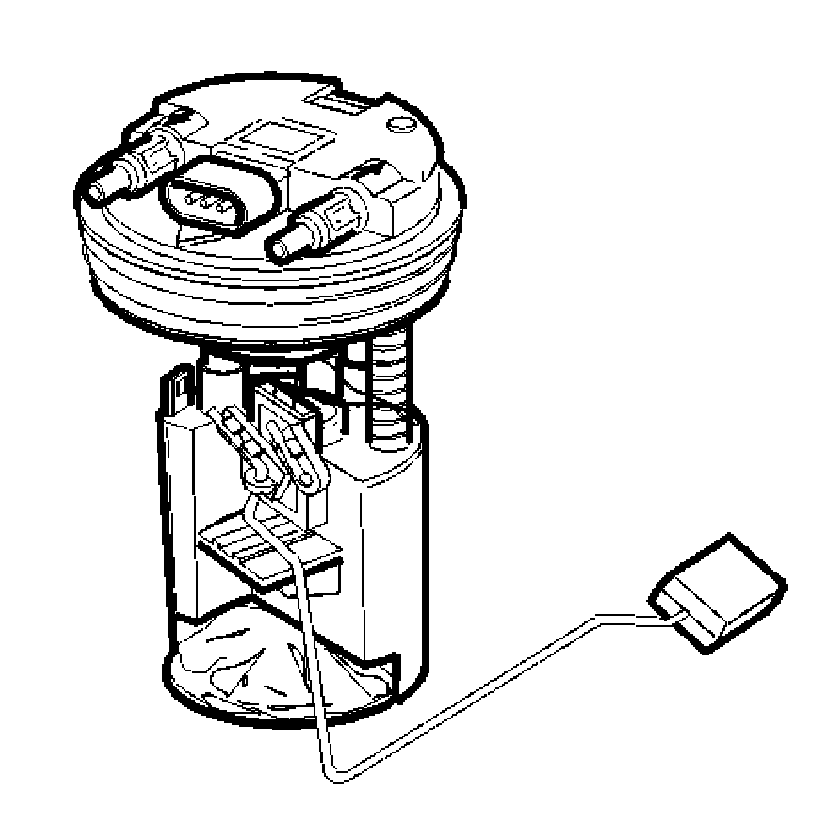

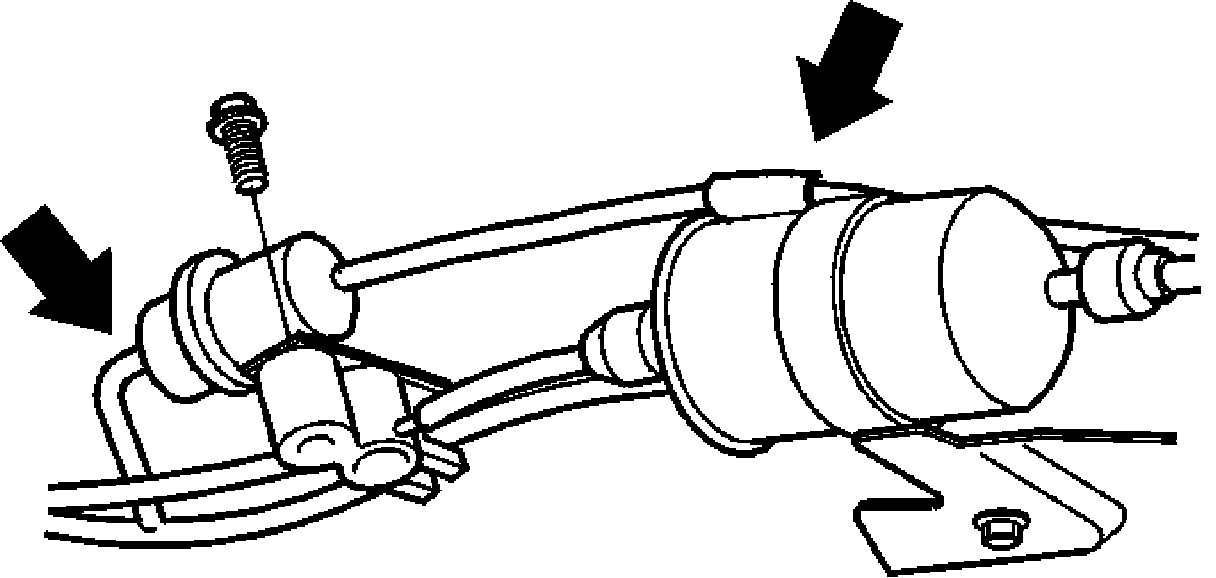

Fuel Pump





Pump capacity at line pressure of 380 kPa and 13 V 125 l/min.

Electrical / power consumption at a line pressure of 380 kPa and 13 V is maximum 7.5 A

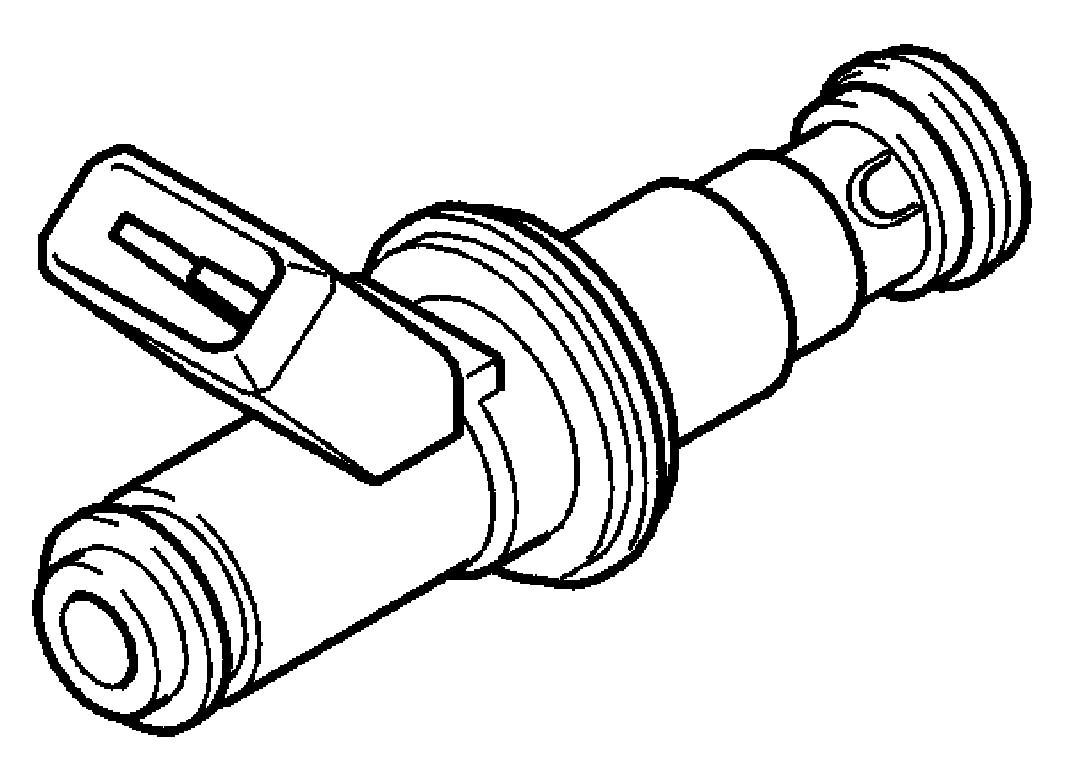

Injector





Coil resistance approximately 12 Ohms (at 20 degree C).

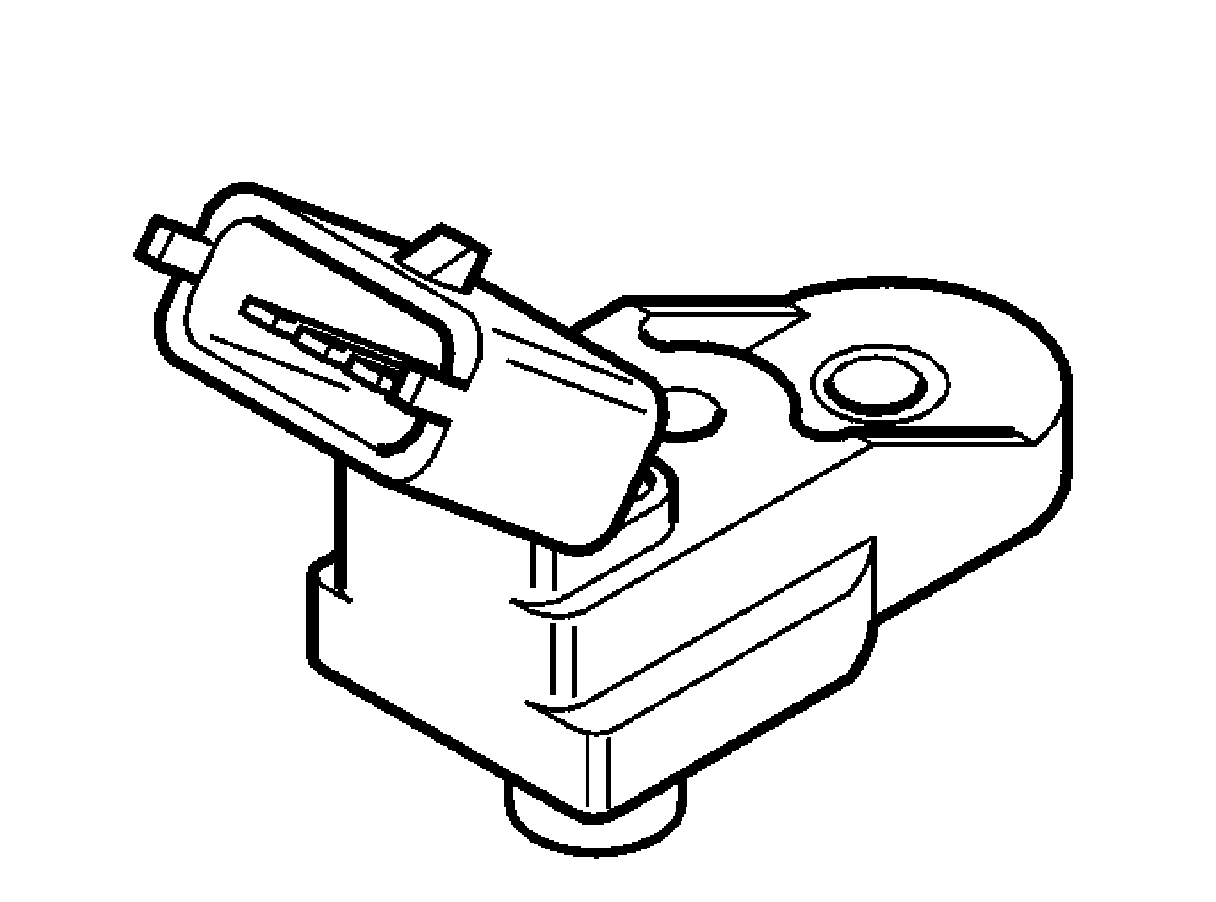

Boost Pressure Sensor





Piezo resistive lineal pressure sensor. Measurement range 20.0-250 kPa.

P (kPa) V /(Volts)
90.0 1.69
101.3 1.90
150.0 2.80
200.0 3.71

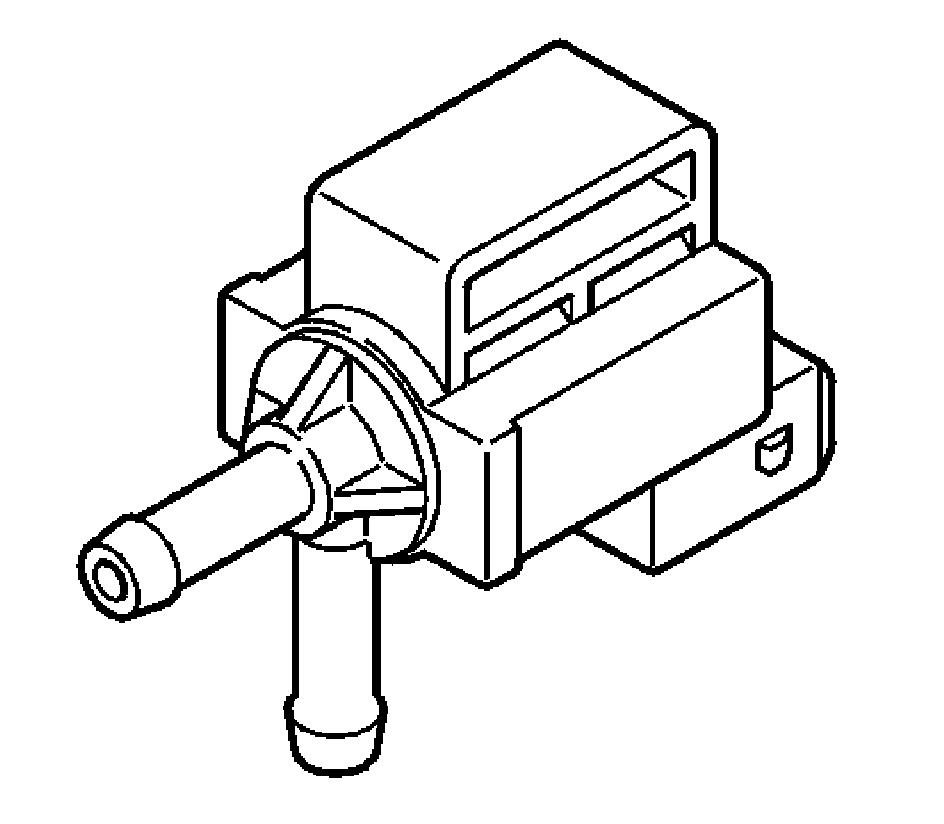

Turbocharger (TC) Control Valve





Pulse ratio valve. Resistance 29.7 Ohms

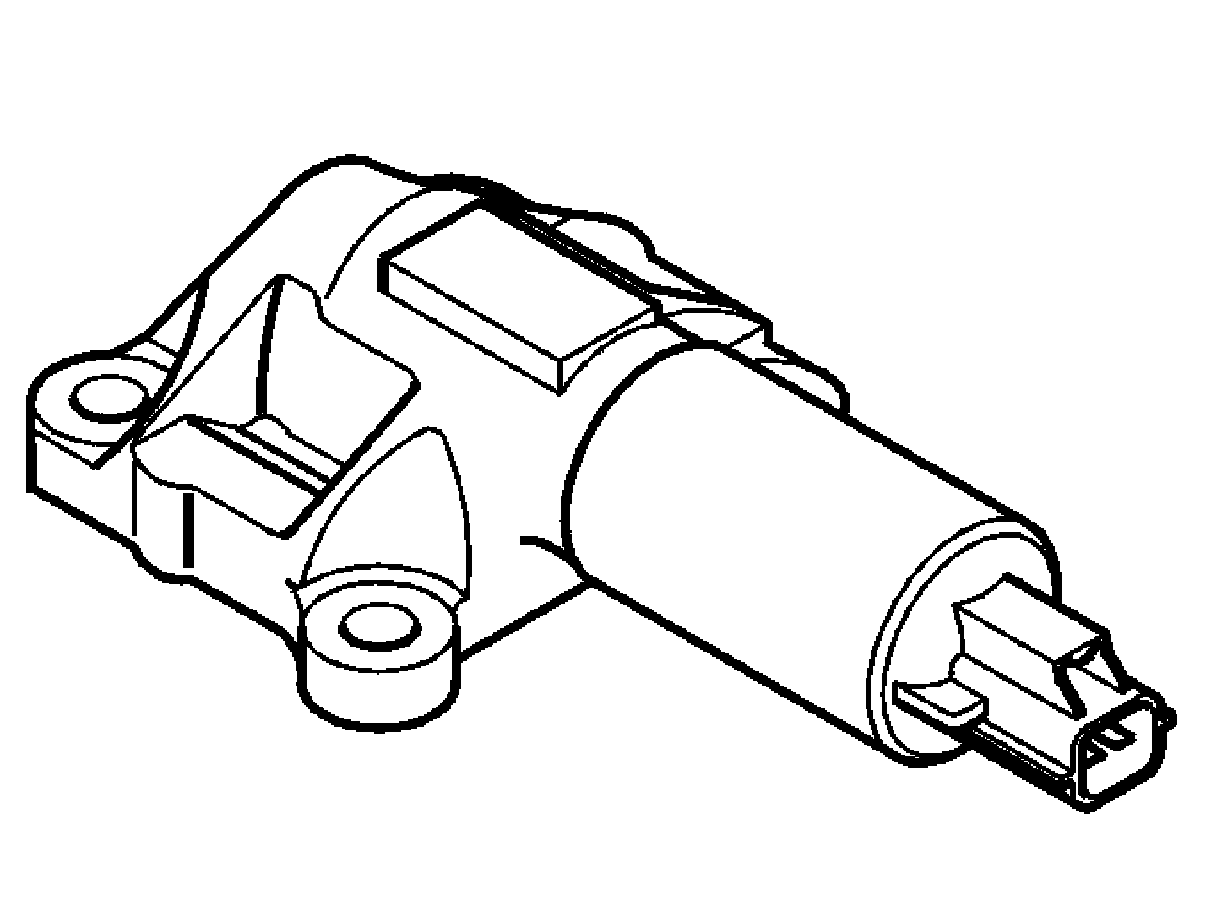

Camshaft Reset Valve





Pulse ratio valve. Resistance 3.7 Ohms

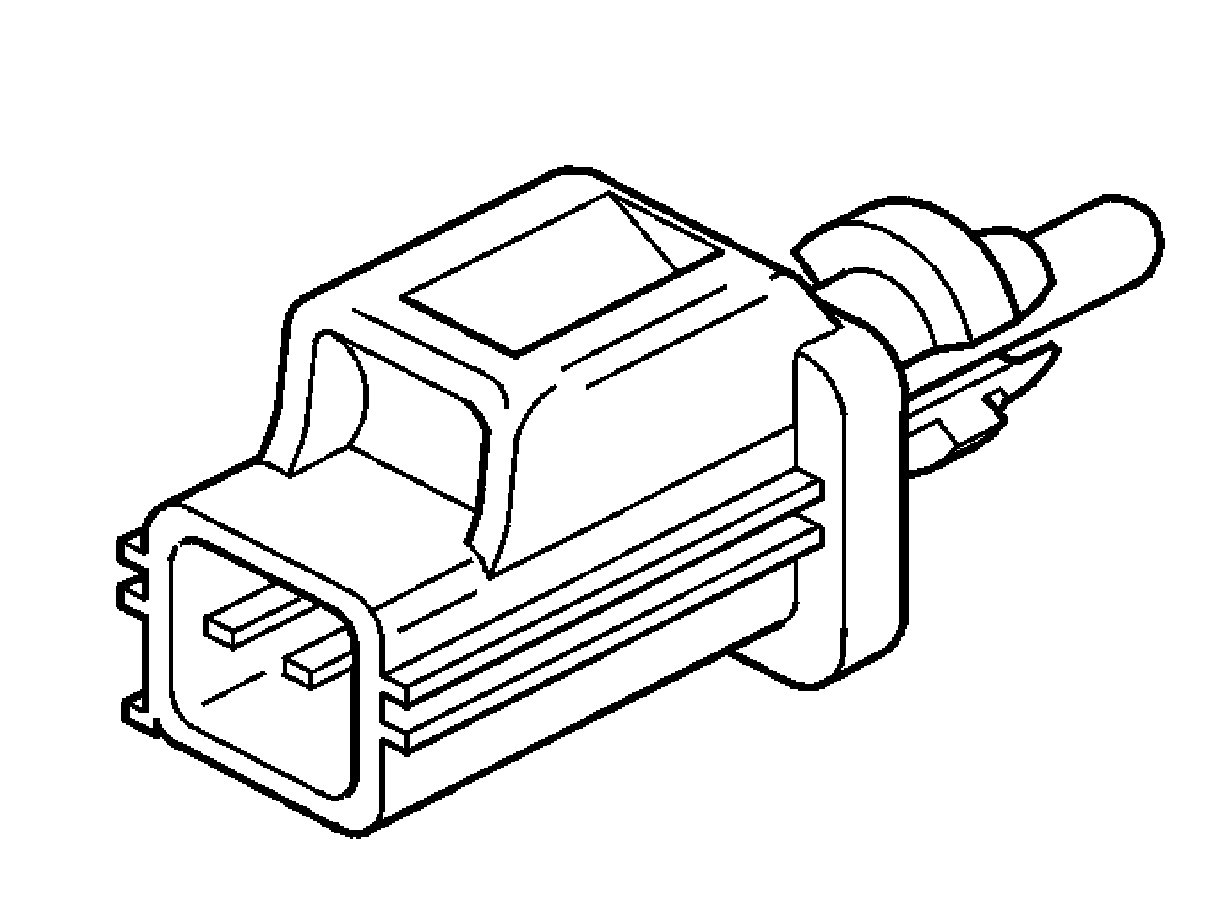

Intake Air Temperature Sensor





B52x4Tx, B6284Tx
NTC resistance.

Temperature (degree C) R (Ohms) V (Volts)
0 15931 4.30
10 9672 3.94
20 6068 3.50
30 3923 3.00
40 2603 2.50

B6xx4Sx
NTC resistance.

Temperature (degree C) R (Ohms) V (Volts)
0 5500 3.40
10 3600 2.90
20 2420 2.40
30 1660 1.94
40 1200 1.57

Engine Coolant Temperature (ECT) Sensor





NTC resistance.

Temperature (degree C) R (Ohms) V (Volts)
0 5740 2.65
10 3700 2.10
20 2450 1.62
40 1150 0.92
80 318 0.29
100 184 0.17

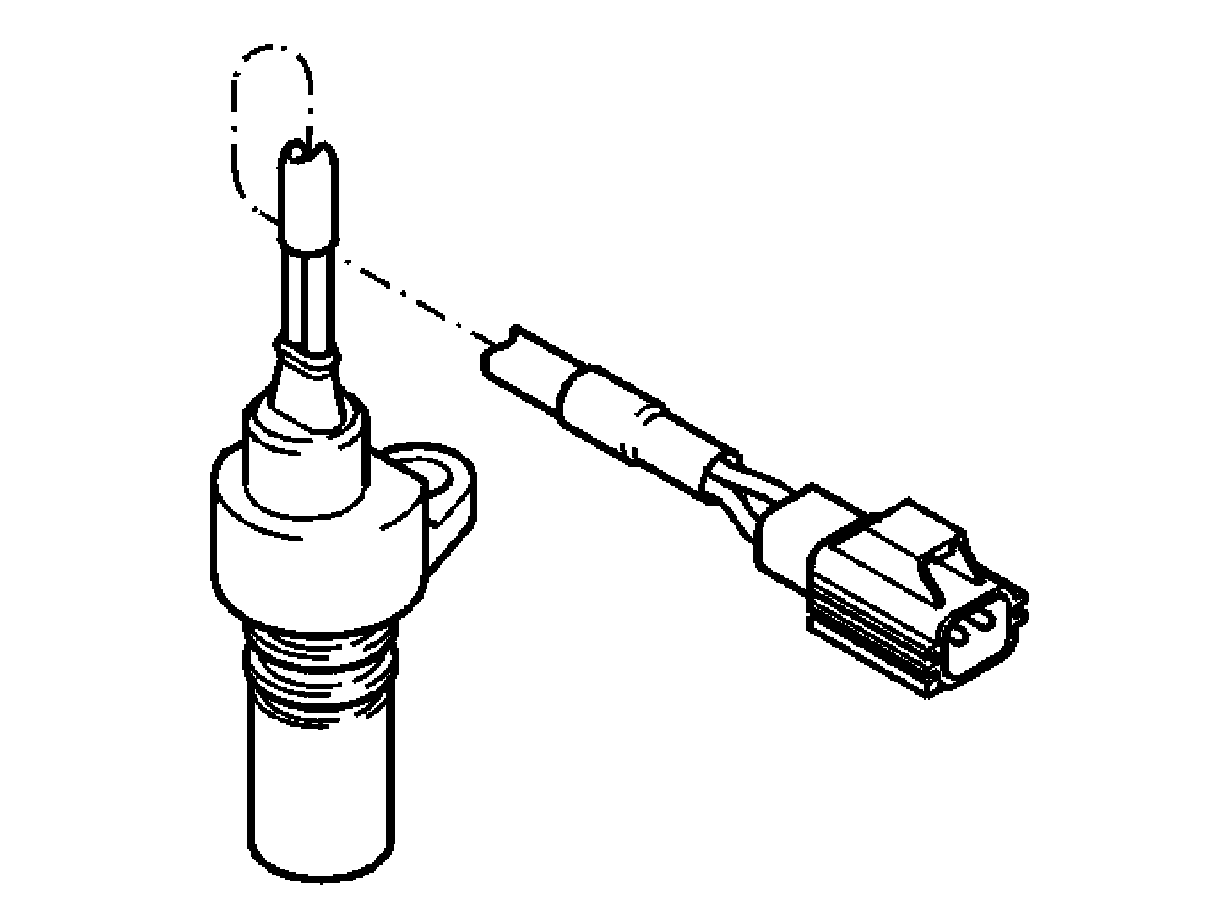

Engine Speed (RPM) Sensor





Resistance 125.5 ± 17 Ohms

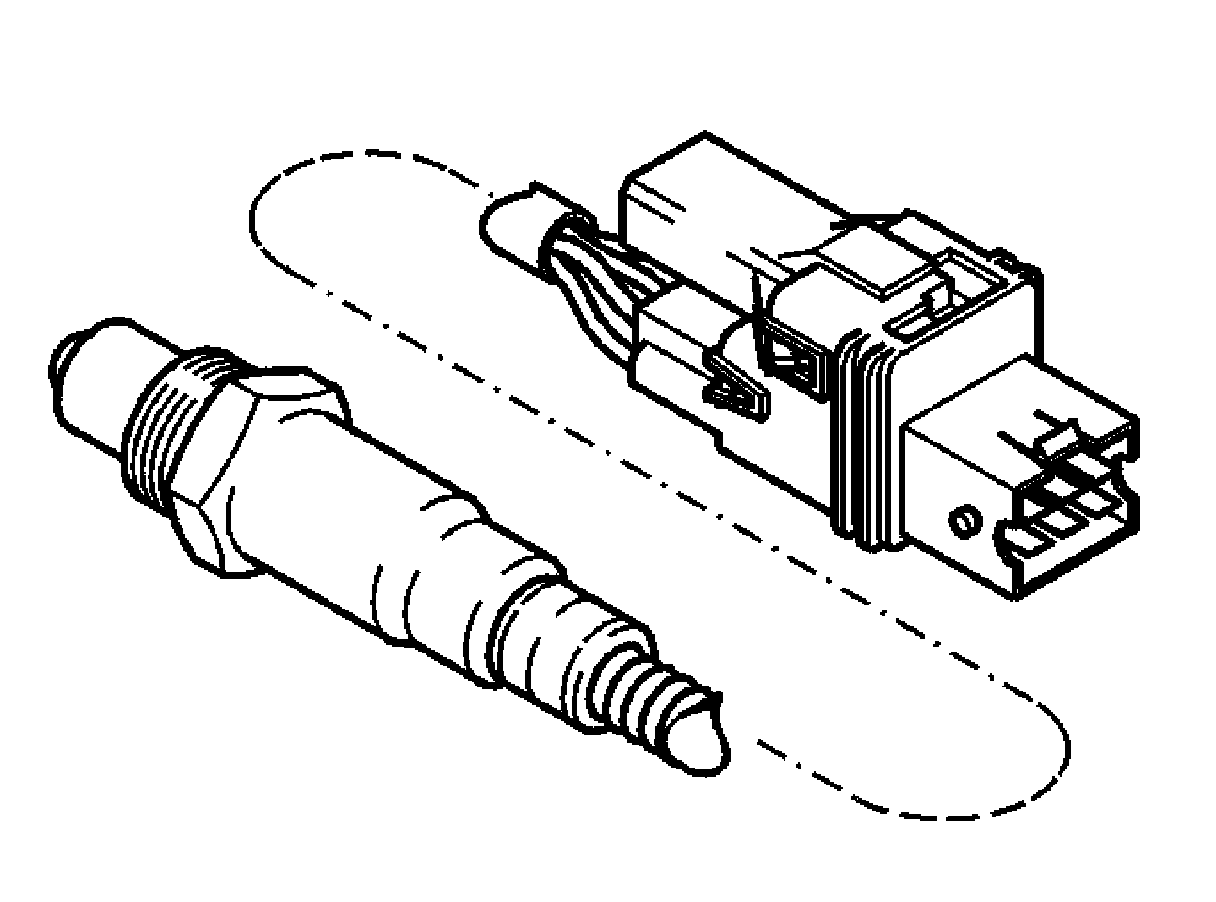

Preheating, Front Heated Oxygen Sensor (HO2S)





Resistance approximately 3 Ohms (at 20 degree C)


Preheating, Rear Heated Oxygen Sensor (HO2S)





Resistance approximately 10 Ohms (at 20 degree C)


Outer Temperature Sensor





NTC resistance.

Temperature (degree C) R (Ohms) V (Volts)
0 6318 4.32
10 3857 3.97
20 2424 3.54
25 1941 3.30
30 1513 3.00

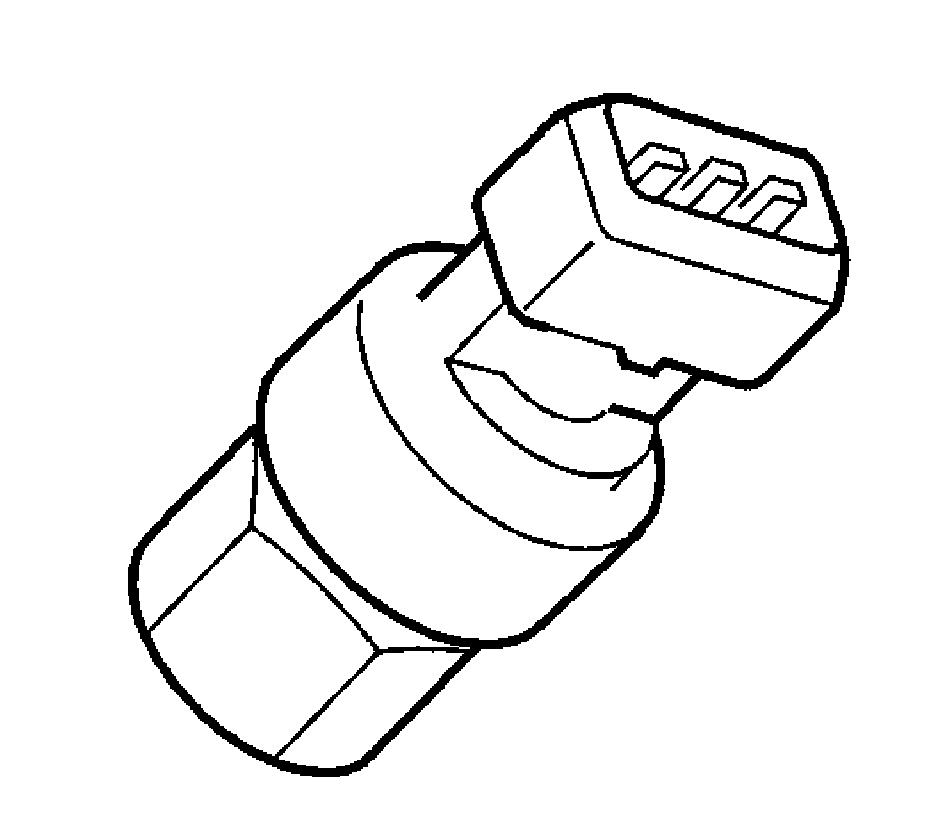

A/C pressure sensor





Linear pressure sensor. Measurement range 0-3100 kPa.

V (Volts) P (kPa)
0.25 0
1.00 517
2.00 1206
3.00 1894
4.75 3100

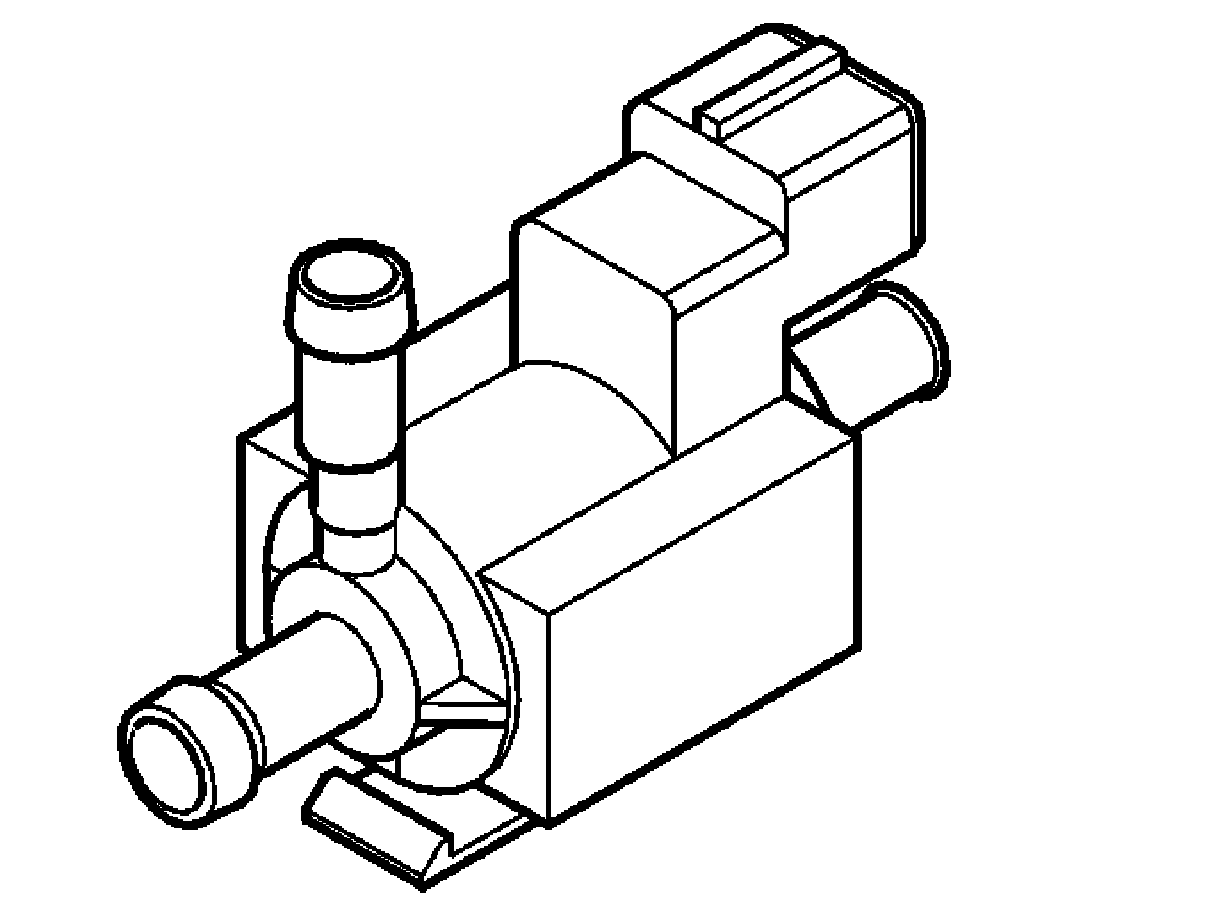

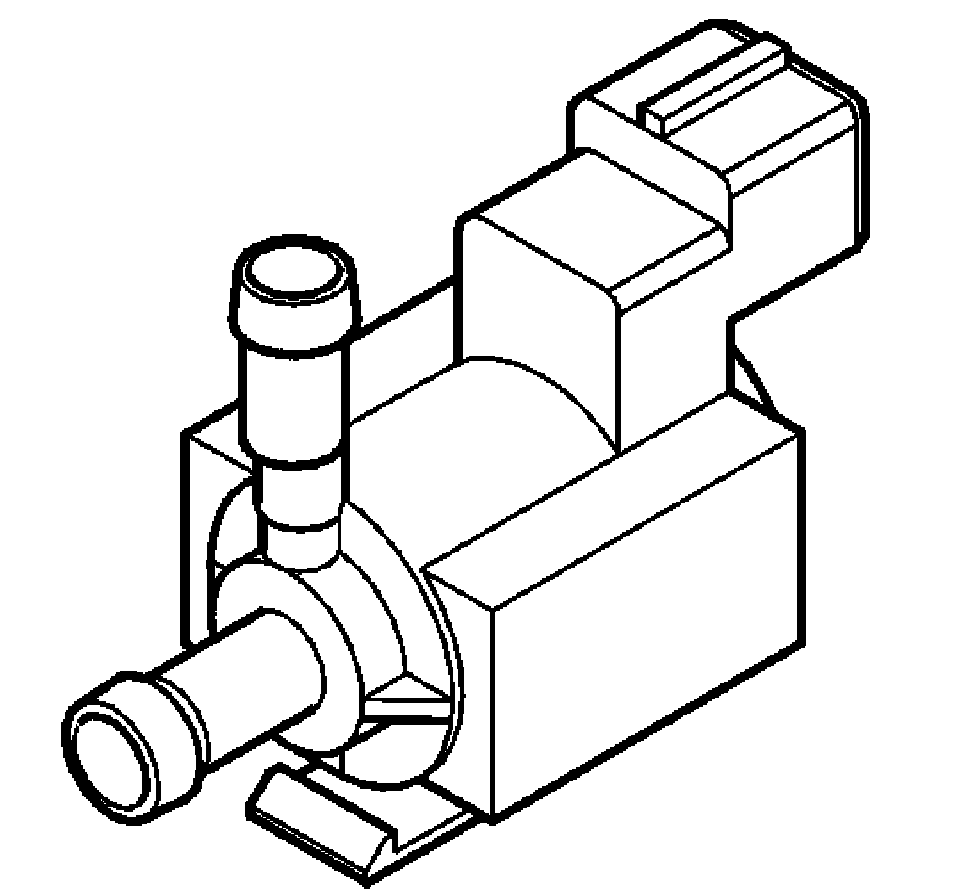

Canister Purge (CP) Valve





Pulse width modulated valve. Resistance 29.7 ± 1.4 Ohms


EVAP Canister Shutoff Valve





Solenoid valve. Resistance 17 ± 1 Ohms


Fuel Tank Pressure Sensor





Piezo electric lineal pressure sensor.

P (kPa) V /(Volts)
-2.0 1.70
-1.5 2.10
0 3.30
0.5 3.70

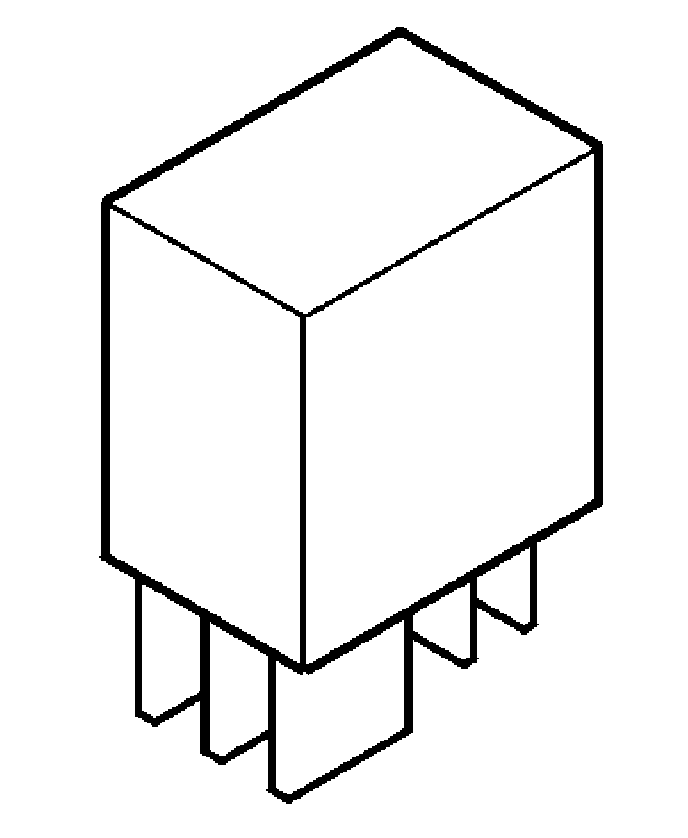

Air Conditioning (A/C) Relay





Mechanical relay. Resistance coil 96 Ohms between terminals #2 and #4

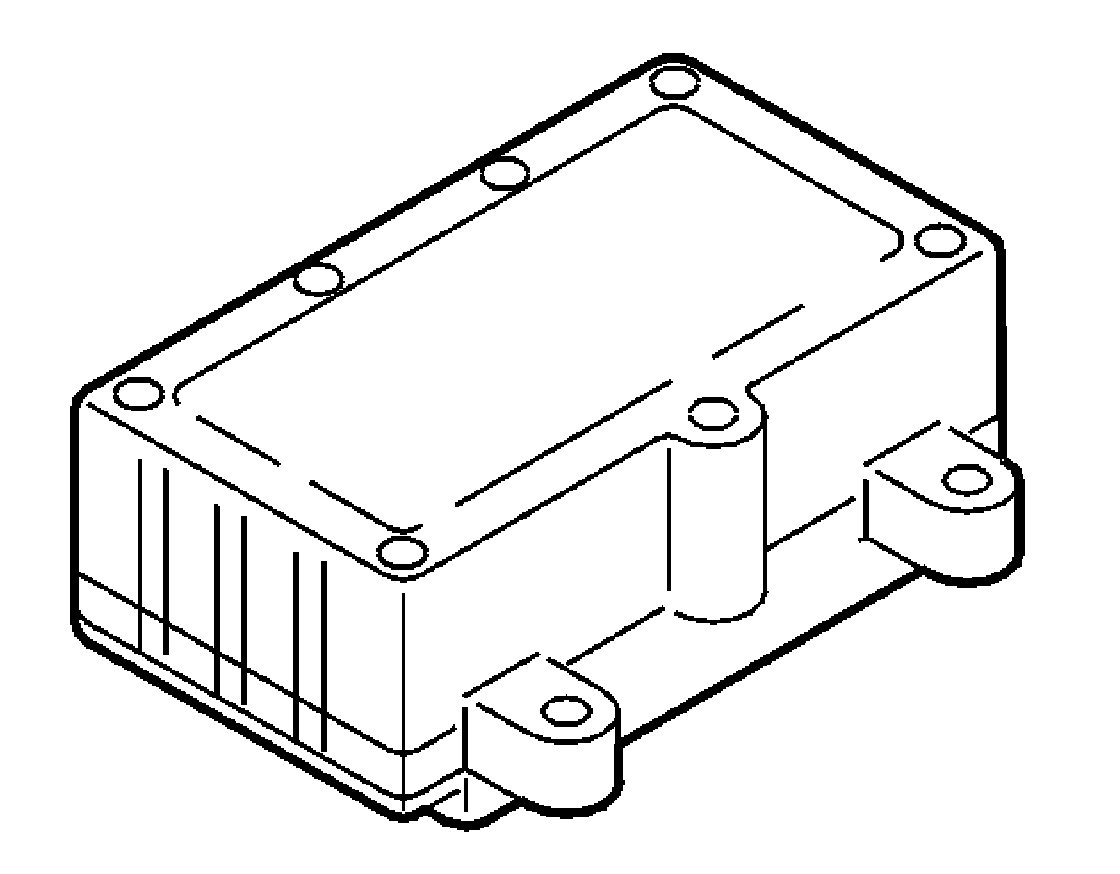

Engine Cooling Fan (FC) Control Module





PWM controlled discharge module with variable output voltage and diagnostics


System Relay (2/32)





Mechanical relay. Resistance 80 Ohms

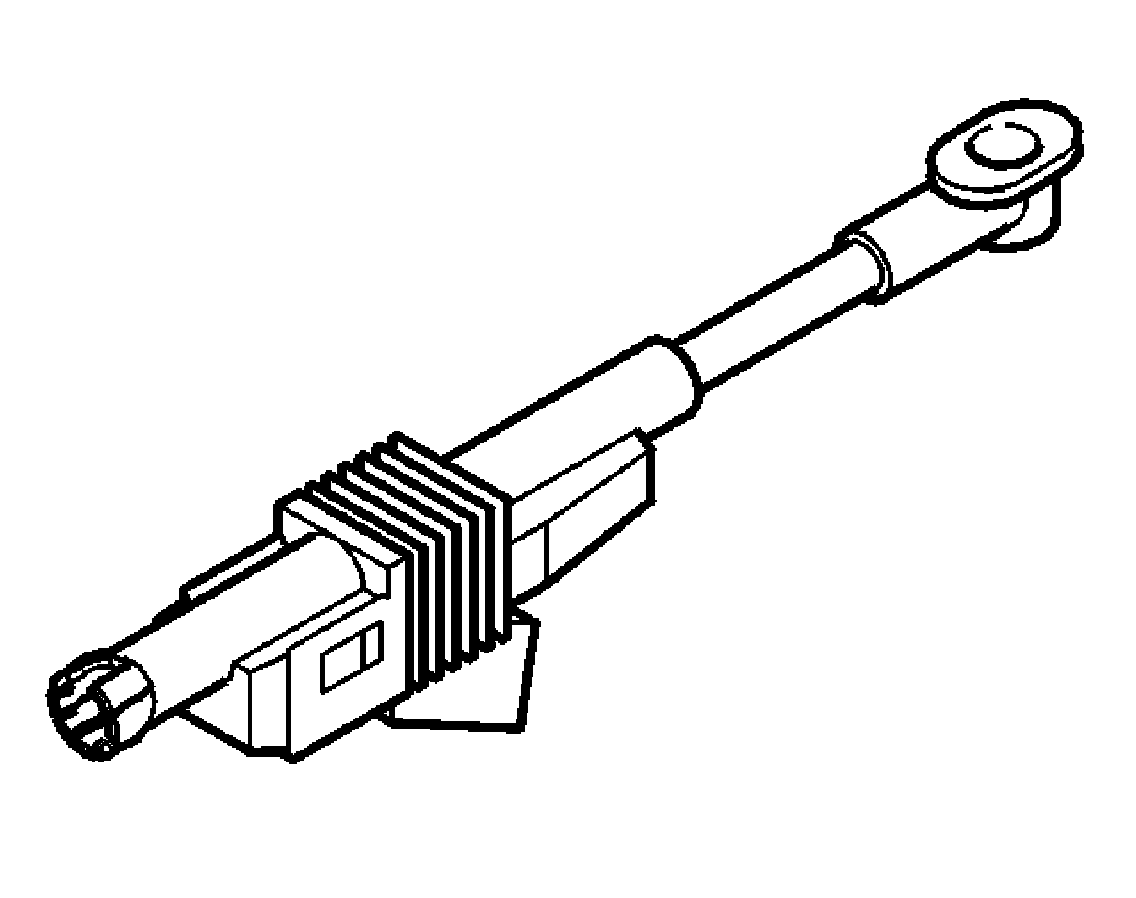

Clutch pedal sensor





Self-adjusting.

Position (mm) R (Ohms)
0 1500-2500
25 1000-2000
50 750-1750
100 500-1000

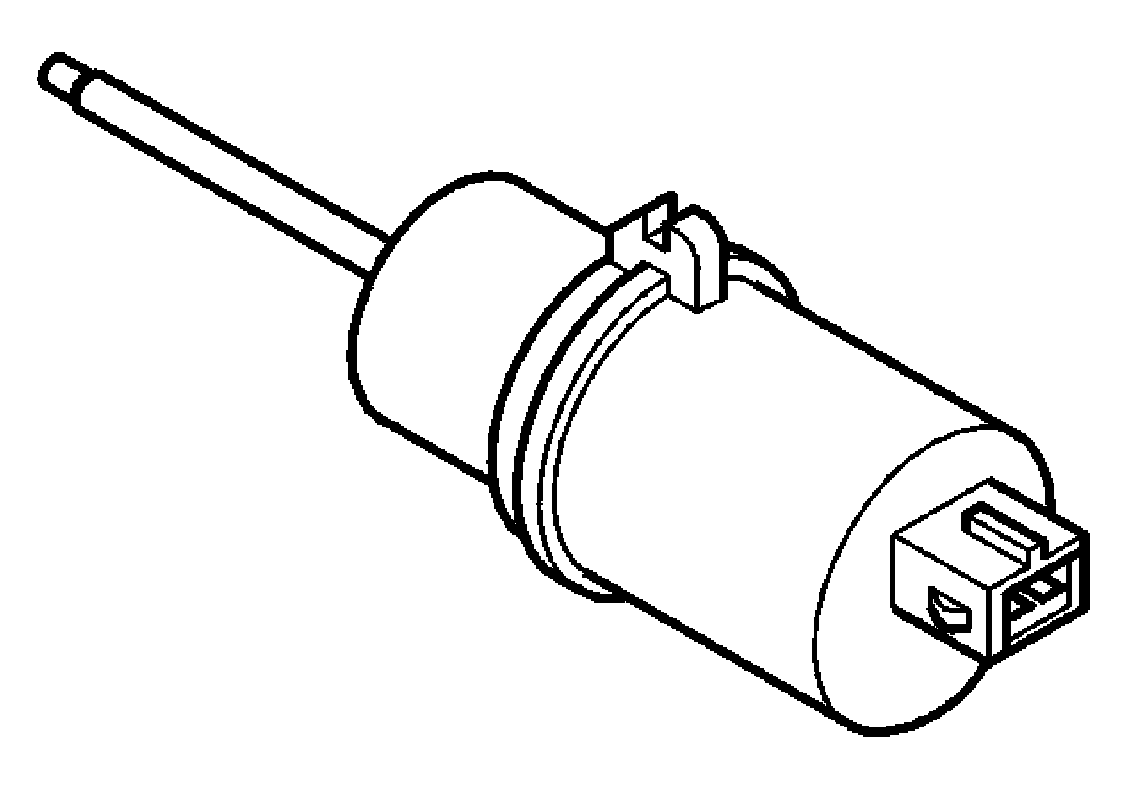

Brake Pedal Sensor





Self-adjusting.

Position (mm) R (Ohms)
0 1300-2100
20 1000-1800
30 900-1700
50 600-1400
