11D-E/no. Fuses In Cargo Area/Compartment
11D-E/no. Fuses In Cargo Area/Compartment

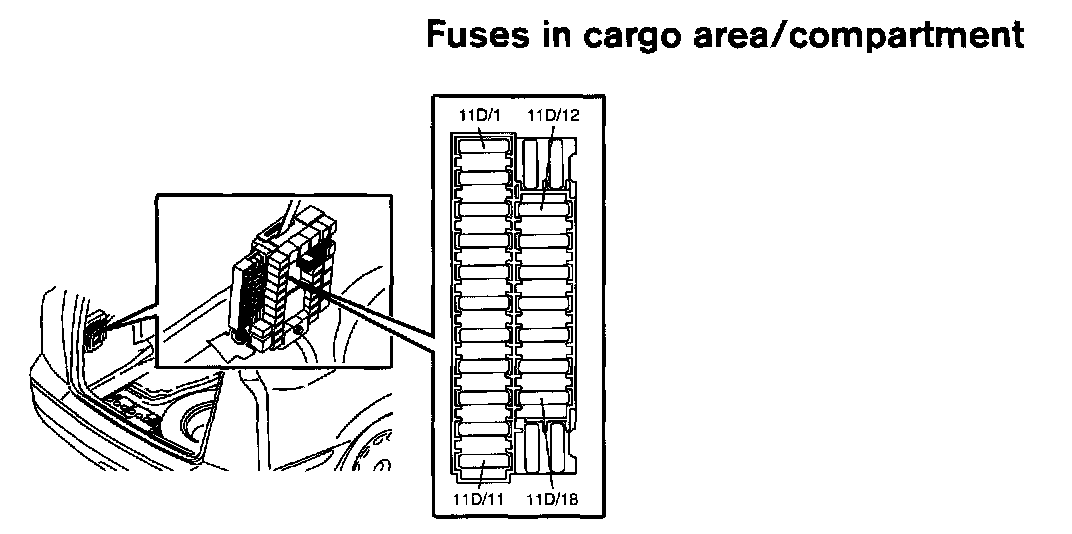

Cargo Compartment Fuses:

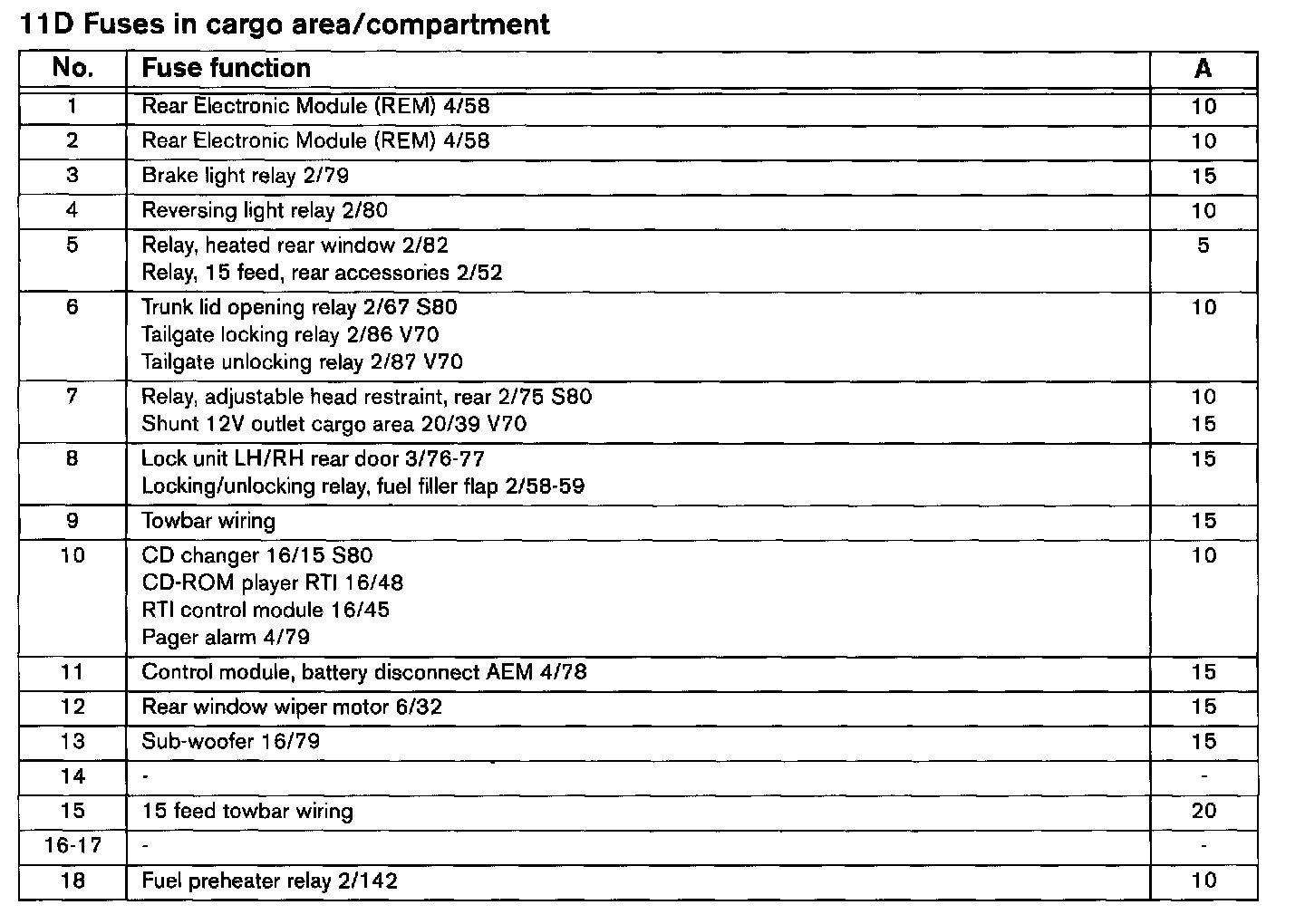

11D/1-18:

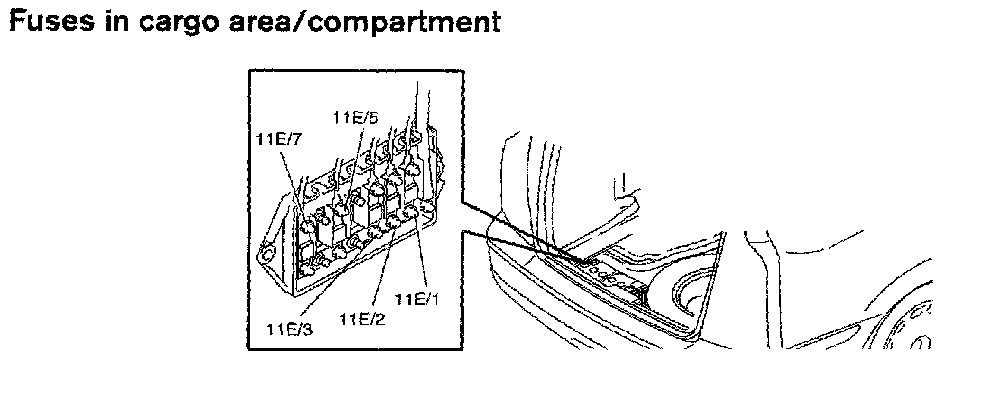

Cargo Compartment Fuses:

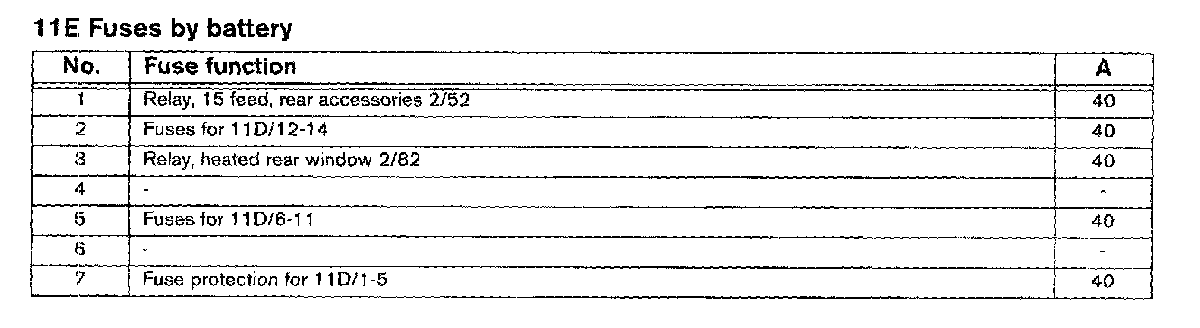

11E/1-7 Fuses By Battery:
