Computers and Control Systems: Locations

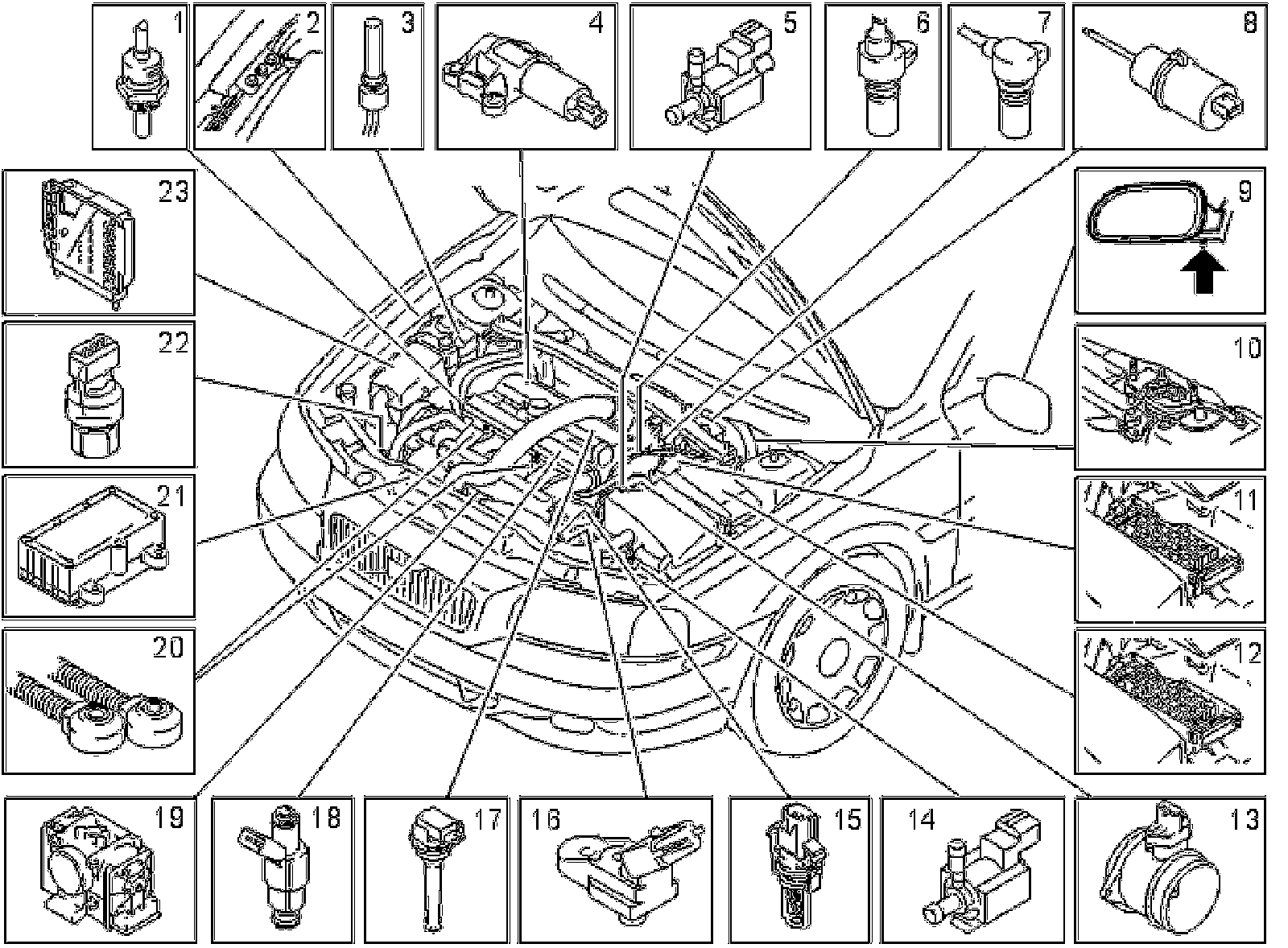

Location Of Components







1. Engine coolant temperature (ECT) sensor
2. Ground terminal
3. Coolant level sensor
4. Camshaft reset valve
5. Turbocharger (TC) control valve
6. Engine speed (RPM) sensor
7. Camshaft position sensor (CMP)
8. Brake pedal sensor
9. Outer temperature sensor
10. Power supply terminal
11. Fusebox
12. Relay box
13. Mass air flow (MAF) sensor
14. Canister purge (CP) valve
15. Intake air temperature sensor
16. Boost pressure sensor
17. Ignition coil
18. Injector
19. Throttle unit
20. Knock sensor (KS)
21. Engine cooling fan (FC) control module
22. A/C pressure sensor
23. Engine control module (ECM).
