Input Signals
Input Signals

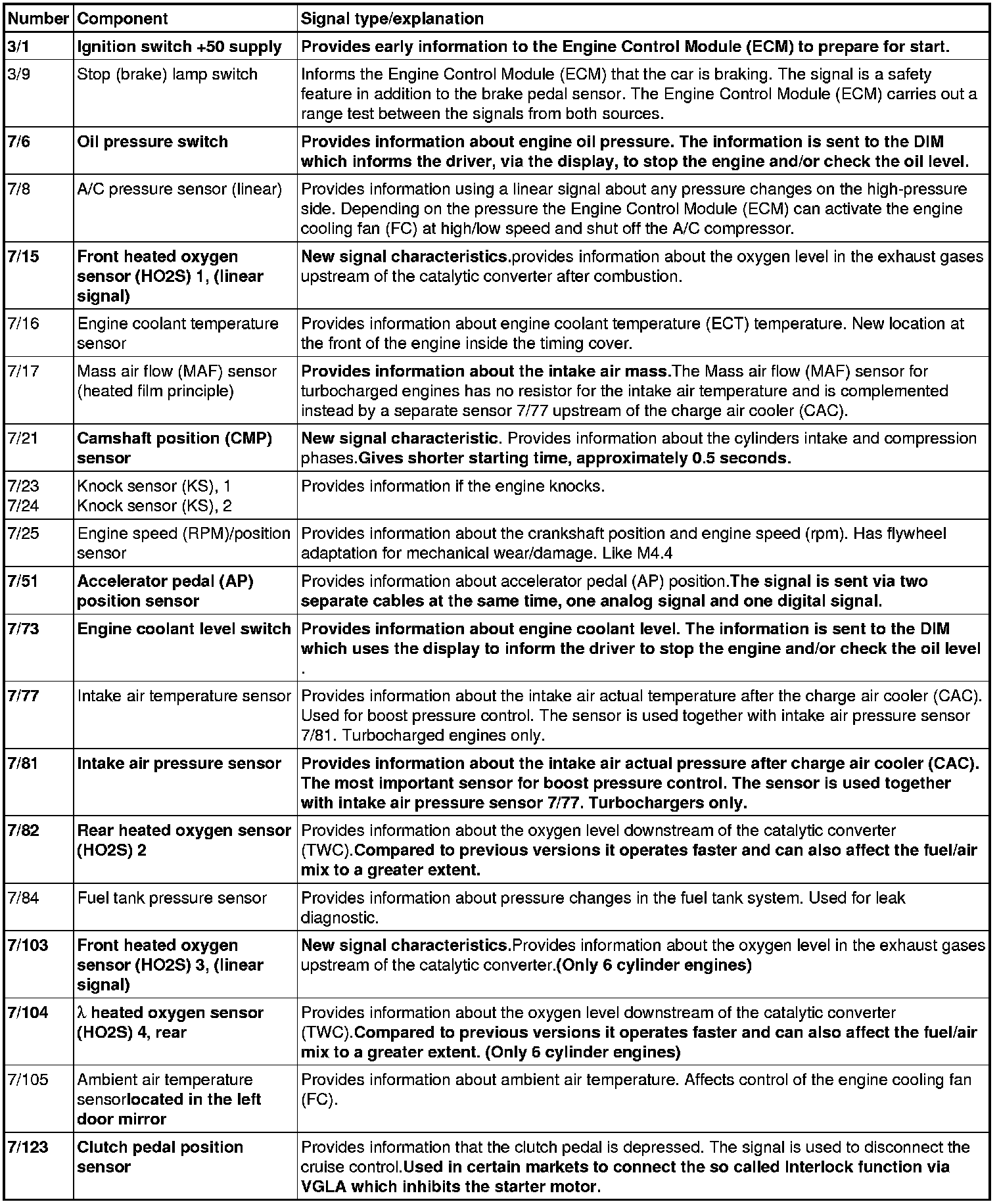

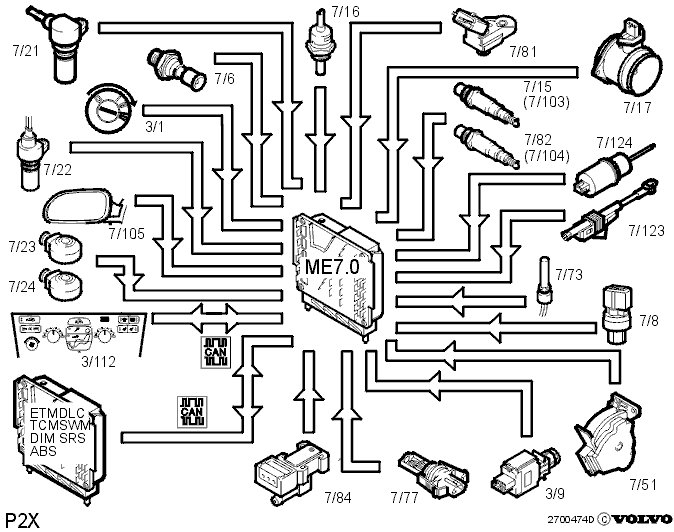

Input signals
Sensors and functions which are different to previous types are marked in
bold text
.
