Home >> Volvo >> 2001 >> V70 XC AWD L5-2.4L Turbo VIN 58 B5244T3 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Description and Operation >> Engine Management System >> Functions/Components Controlled

Functions/Components Controlled

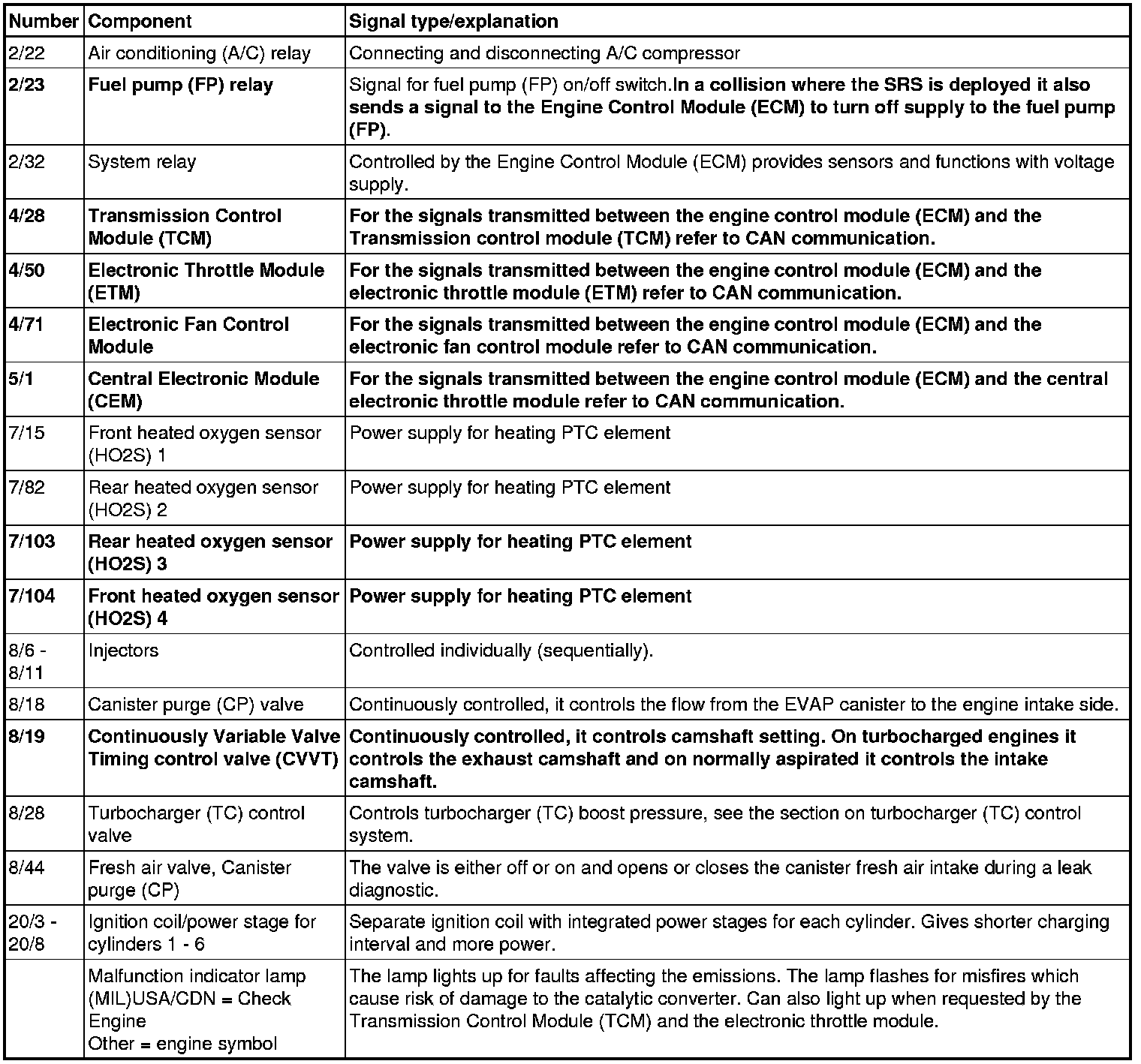

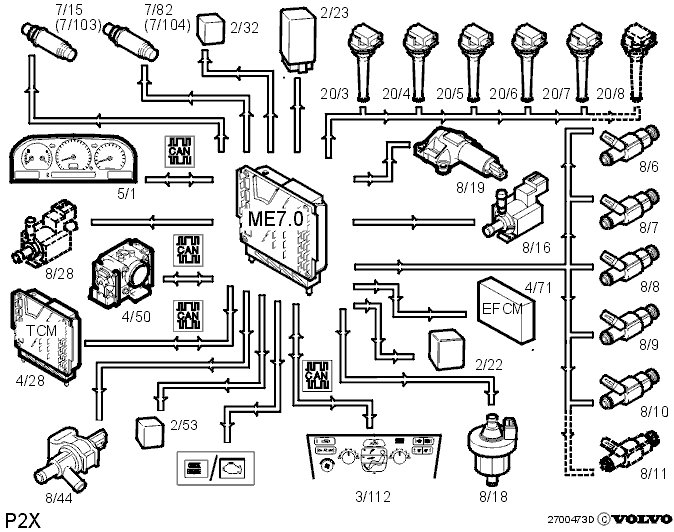

Functions/components controlled




Sensors and functions which are different to previous types are marked inbold text.
