Parking Light, Tail Lights and License Plate Lighting
Parking Light, Tail Lights and License Plate Lighting

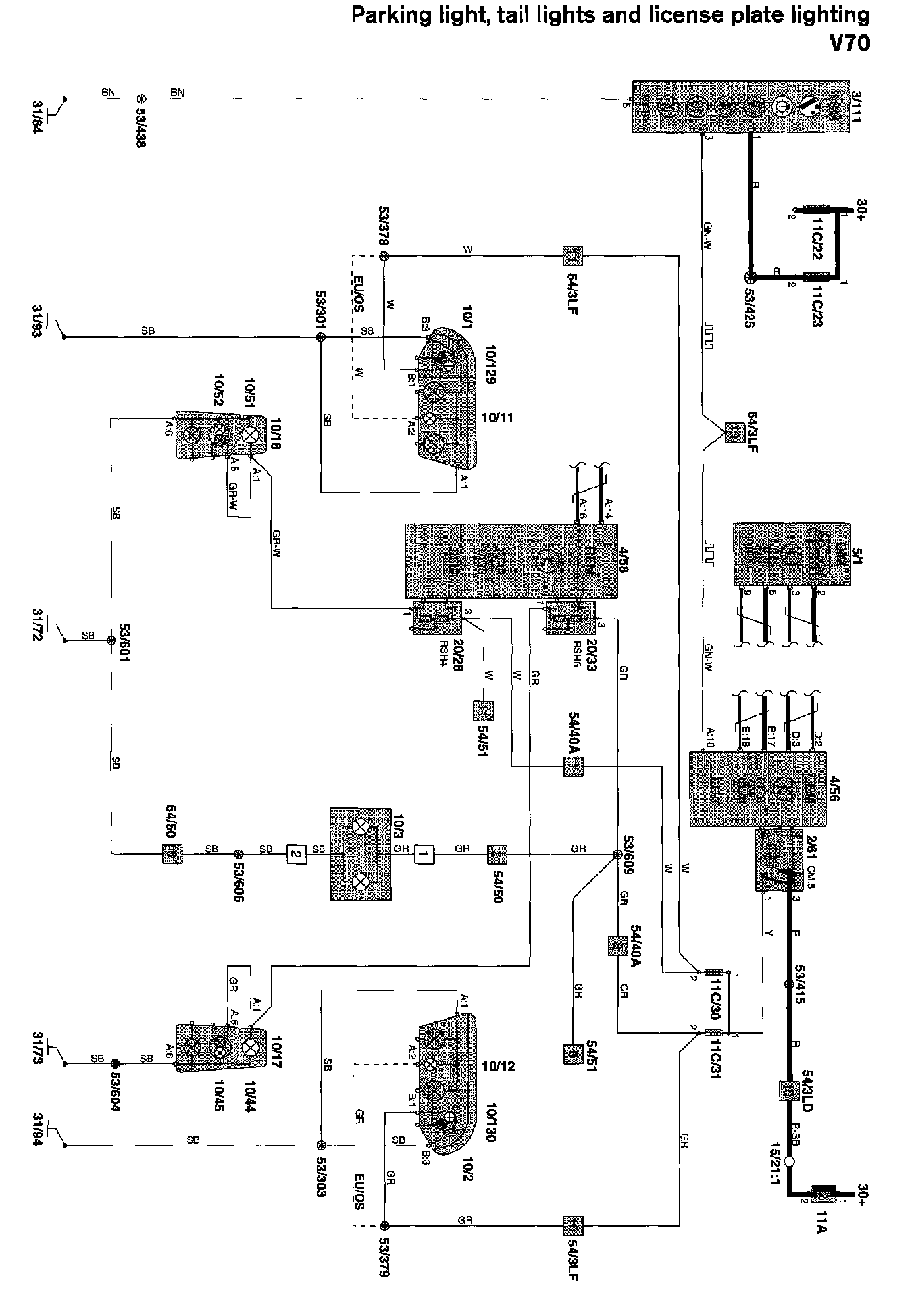

Parking Light, Tail Lights And License Plate Lighting:
Diagram Legend
Diagram Legend
