High and Low Beam and Auxiliary Light Cables
High and Low Beam and Auxiliary Light Cables

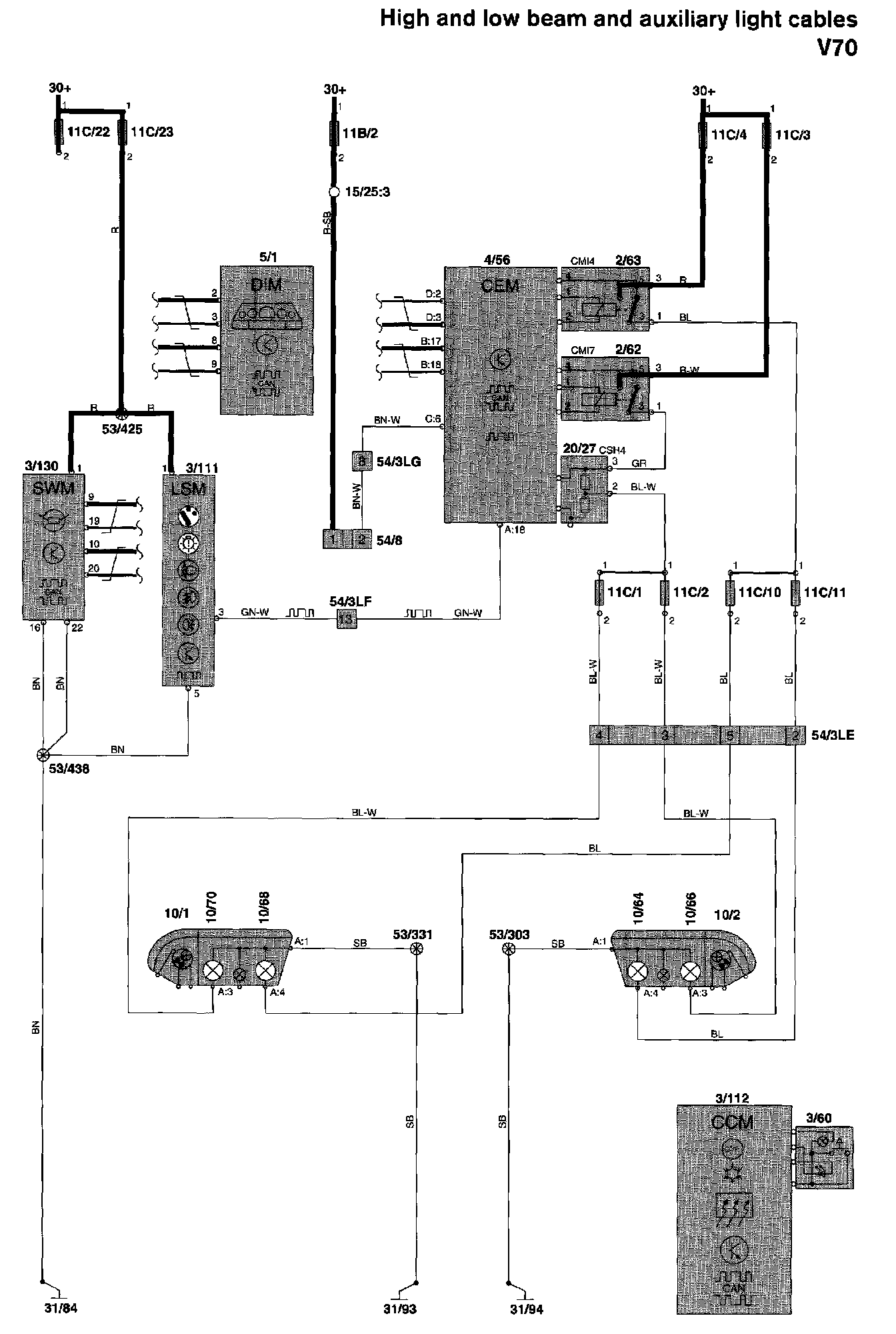

High And Low Beam And Auxiliary Light Cables:
Diagram Legend
Diagram Legend
