Bulb, Courtesy Light, Replacing

Bulb, Courtesy Light, Replacing

Removal

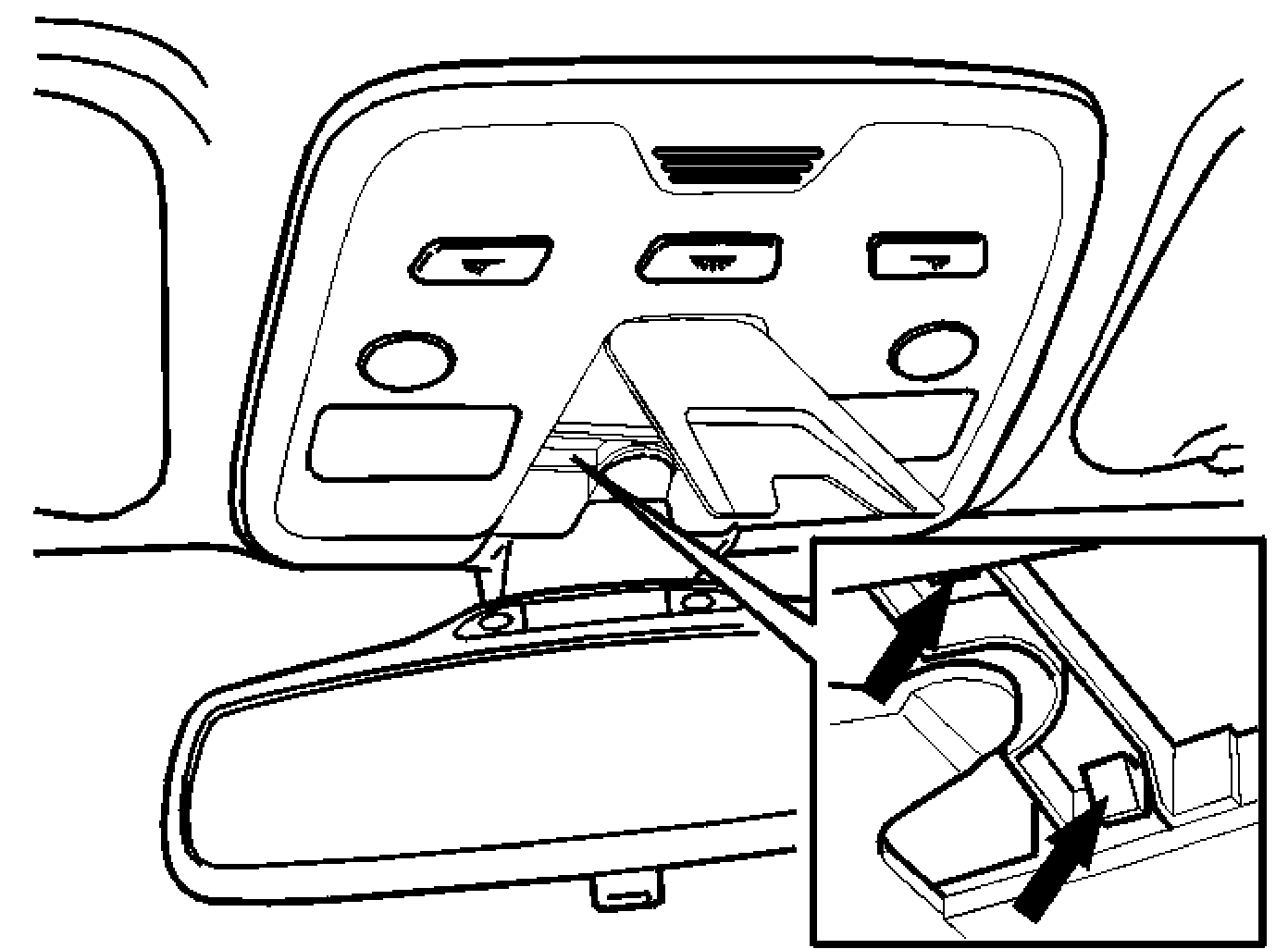

Lens and bulb







- Fold down the cover.
- Press the catches outwards. Remove the lens.
- Remove the bulb. Use a weatherstrip tool or similar.

Installation

Lens and bulb
- Install the bulb
- Press the lens into place
- Press the cover into place.
