Interior Lighting

Removal

Preparations
Remove the interior lighting and the switch for the sun roof.

NOTE: The rear view mirror (upper electronic module) does not need to be removed.

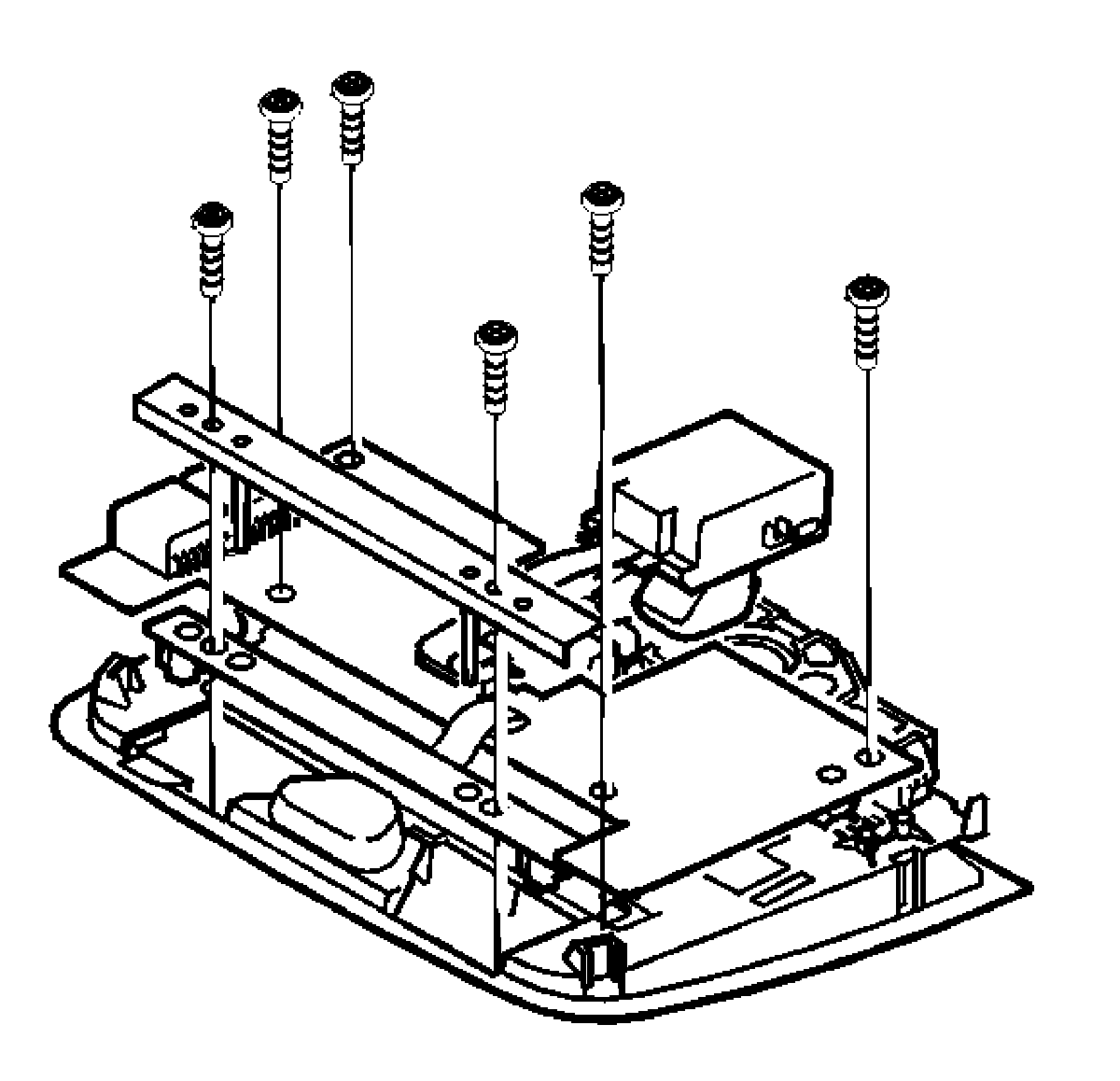

Interior lighting, switch







- Remove the bulbs
- Remove the screws
- Remove the back piece from the switch
- Detach and remove the printed circuit board and switch.

Installation

Interior lighting, switch
In reverse order.
