Front Courtesy Lamp

Removal

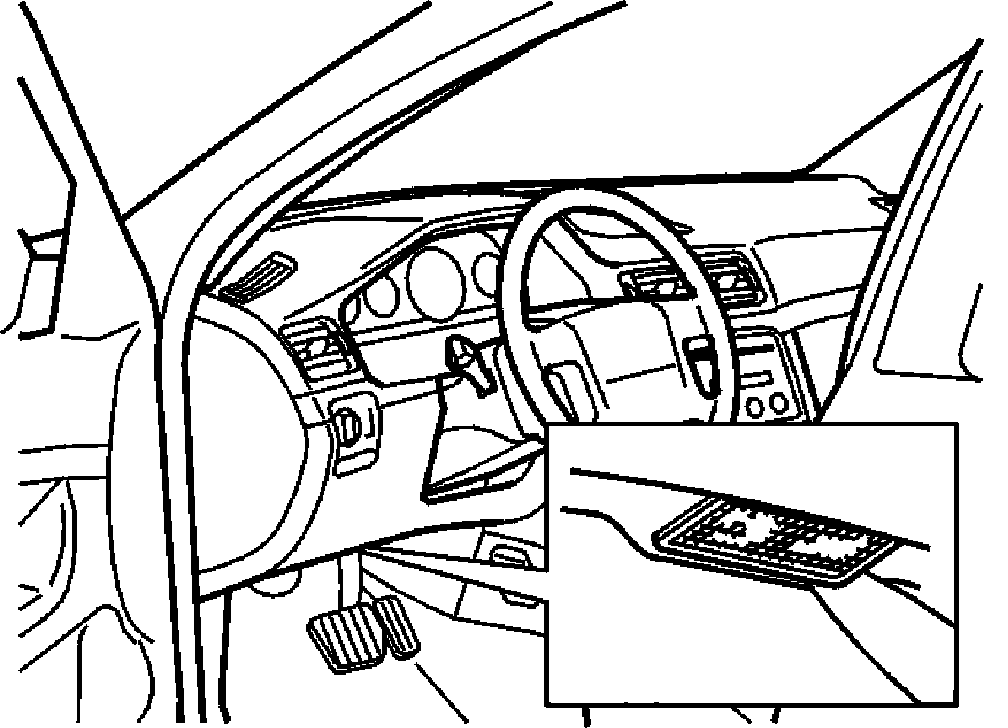

Courtesy lamp and bulb







- Carefully turn the inner edge of the lamp lens until the lamp releases. Use a weatherstrip tool
- Disconnect the connector
- Remove the bulb.

Installation

Courtesy lamp and bulb
In reverse order.
