Instrument Panel

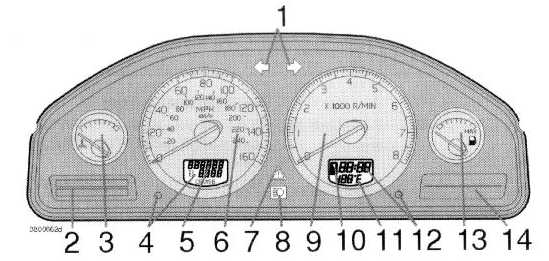

Instrument Panel:




1. Turn signal indicators - right - left.

2. Text window.

The text window displays information and warning messages.
Text Window

3. Temperature gauge.

The pointer should be approximately midway on the gauge when driving. Do not drive the car if the warning light is on. The text window will provide you with additional information. If the engine temperature remains high, check coolant level.

4. Trip odometer.

The trip odometers are used for measuring shorter distances. The right-hand digit gives tenth of a mile/kilometer. Press the button for more than 2 seconds to reset. Change between trip odometers 1 and 2 using one short press on the button.

5. Odometer.

6. Speedometer.

7. Warning symbol.

8. High beam indicator.

9. Tachometer.

Indicates engine speed in thousands of revolutions per minute (rpm). Do not drive for long with the needle in the red section. The engine has an built-in function preventing excessively high engine speeds. When this function operates, you may discern some pulsation, which in that case is quite normal.

10. Gear and driving mode indicator.

The currently selected driving mode is displayed here. If you use the optional Geartronic function on the automatic transmission, the currently selected gear will be displayed.

11. Ambient temperature gauge.

This display indicates the air temperature outside your car. A "snowflake" symbol in the text window is displayed when the temperature is in the range of 23° - 36° F (-5° - +2° C). Please note that this symbol does not indicate a fault with your car.

At low speeds or when the car is not moving, the temperature readings may be slightly higher than the actual ambient temperature.

12. Clock/set button.

Turn the button to set the clock.

13. Fuel gauge.

The fuel tank holds approximately 21.1 US gals (80 liters)*.

When a warning light in the gauge comes on, there are approximately 1.8 US gal. (8 liters) of fuel remaining in the tank.

14. Indicator and warning symbols.
Indicator and Warning Symbols

* 18.5 US gals (70 liters) on V70 AWD, V70 XC and V70 with non-turbo engine.
