Dashboard Vent, Side Defroster (Passenger Side)

Dashboard Vent, Side Defroster (Passenger Side)

Removal







- Fold down the glove compartment.

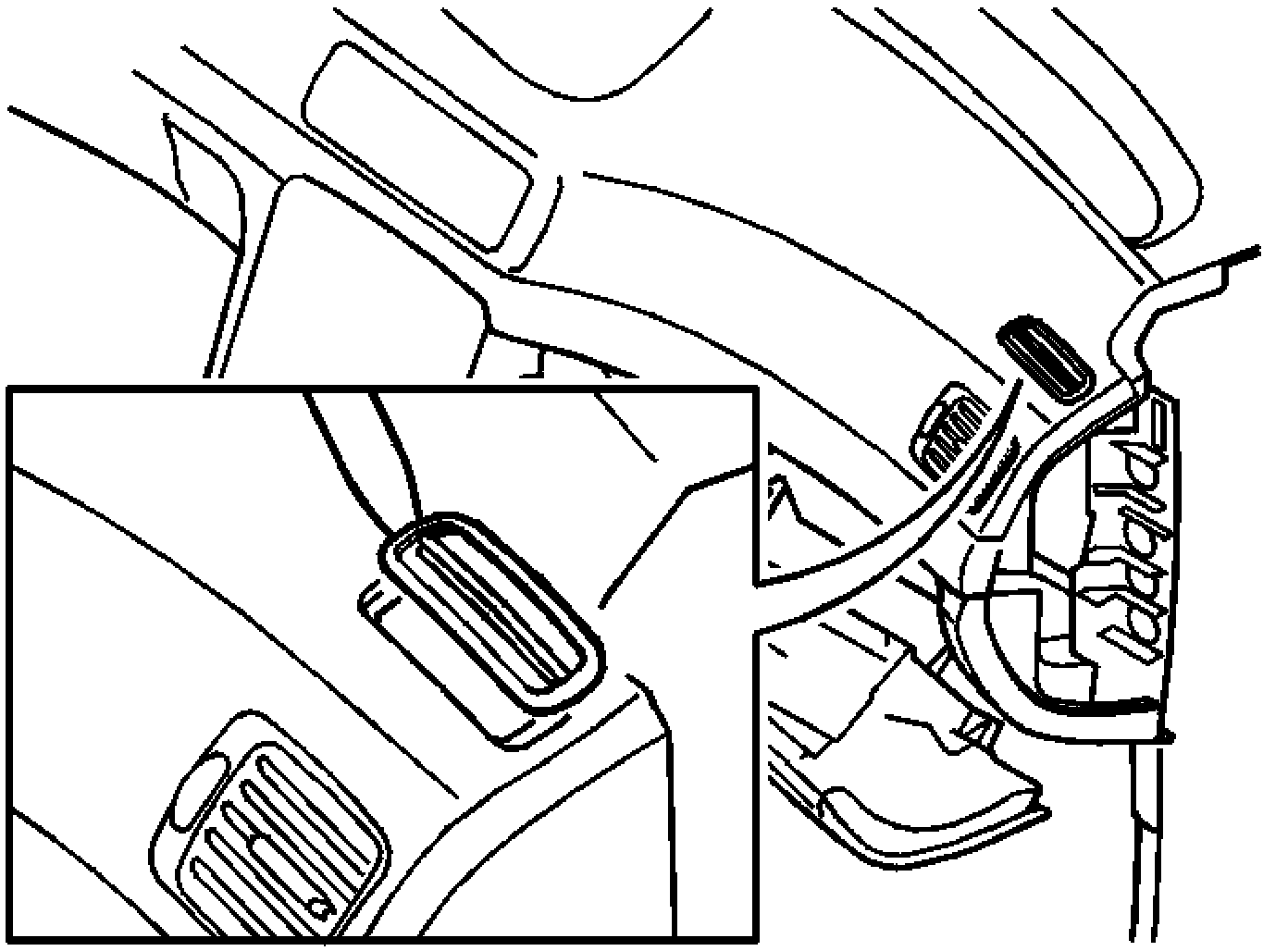

- Position a straightening tool under the outer side of the side vent
- Press the catch by hand and press off the side vent.

Installation
- Position the pipe duct in position through the opening for the glove compartment
- Position the side vent and press it into place
- Fold up the glove compartment so that the catches fasten.
