Tail Pipe

Tail pipe

5 cylinder, 2.4l, 103kW & 125kW




















Tail pipe

Warning! The exhaust system will be hot if the car has been recently driven! Allow the exhaust system to cool before starting work.

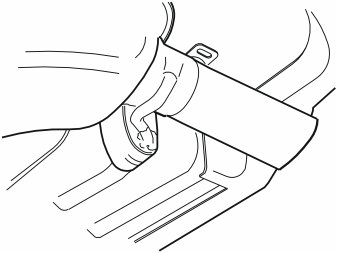

- Clean away any dirt from the rear silencer tail pipe.

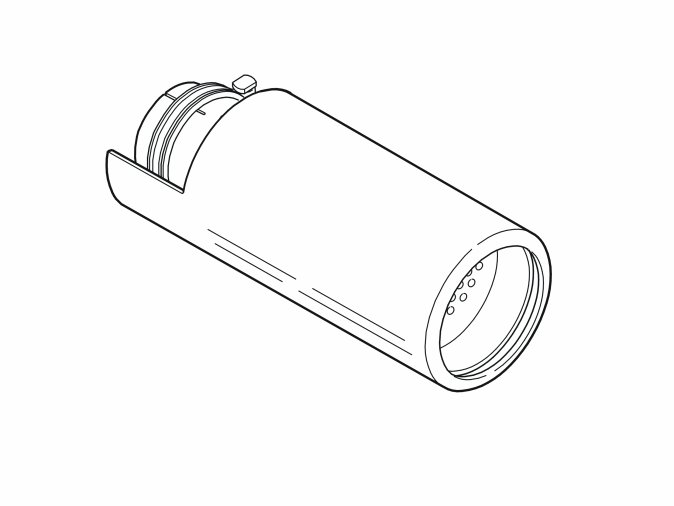

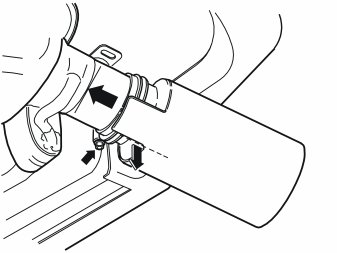

- Thread the new tail pipe over the existing tail pipe for the silencer. Slide the end in towards the edge. The bottom flange edge on the new tail pipe must be in the "6 o'clock" position (straight down) as illustrated
- Tighten the tail pipe using the nut.
