Engine: Tools and Equipment

Sealing Micro-enclosed Screws

NOTE: Micro-enclosed screws are used where the seal requirements are high. Loose screws are replaced or sealed with new sealing compound. Sealant "HYDRAULIC THREADSEAL" has P/N 11 61 056-5 and sealing must be carried out according to the instructions on the packet.

The screws to be sealed with "HYDRAULIC THREAD SEAL" and their positions are shown below.

NOTE: As the illustrations in this service information are used for different model years and/or models, some variation may occur. However, the essential information in the illustrations is always correct.

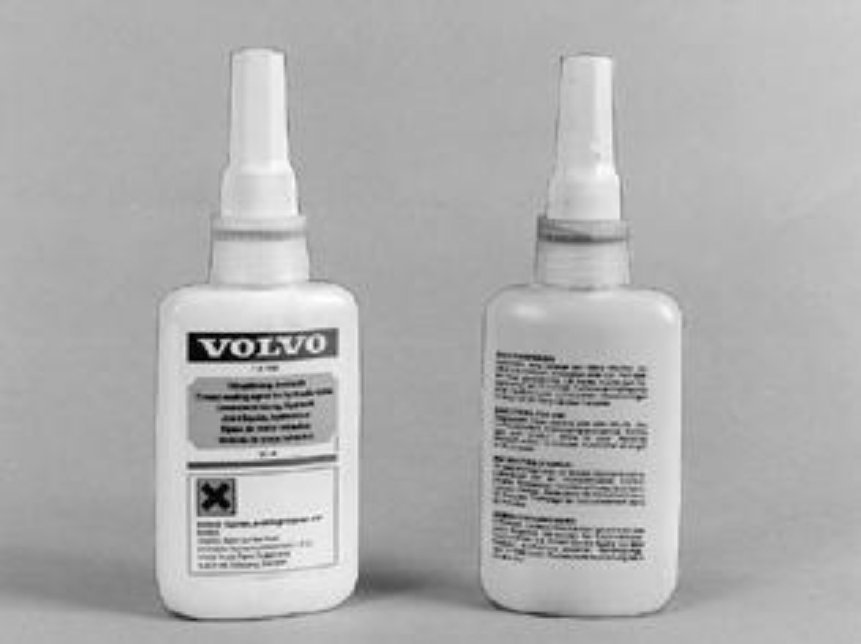

Sealant







"Hydraulic thread sealant"

- P/N 11 61 056-5
- Use a brush and/or the packet spout to apply the sealant to the screw.
- Avoid skin contact with the sealant.

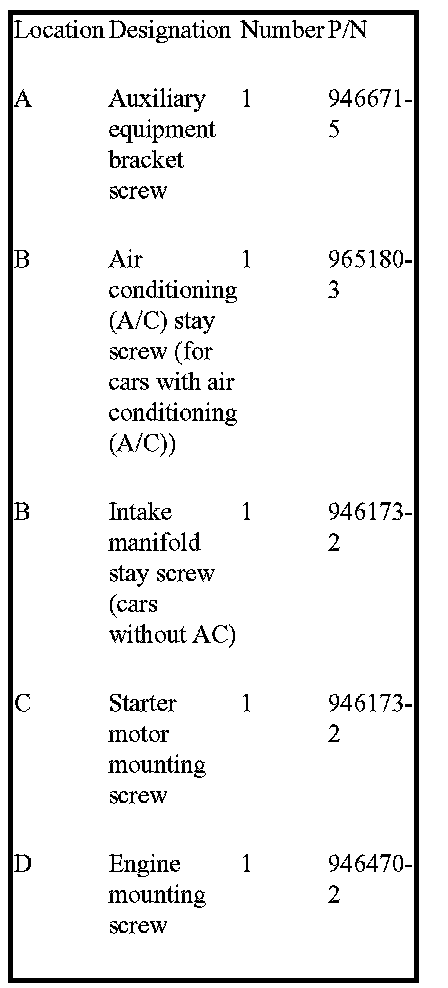

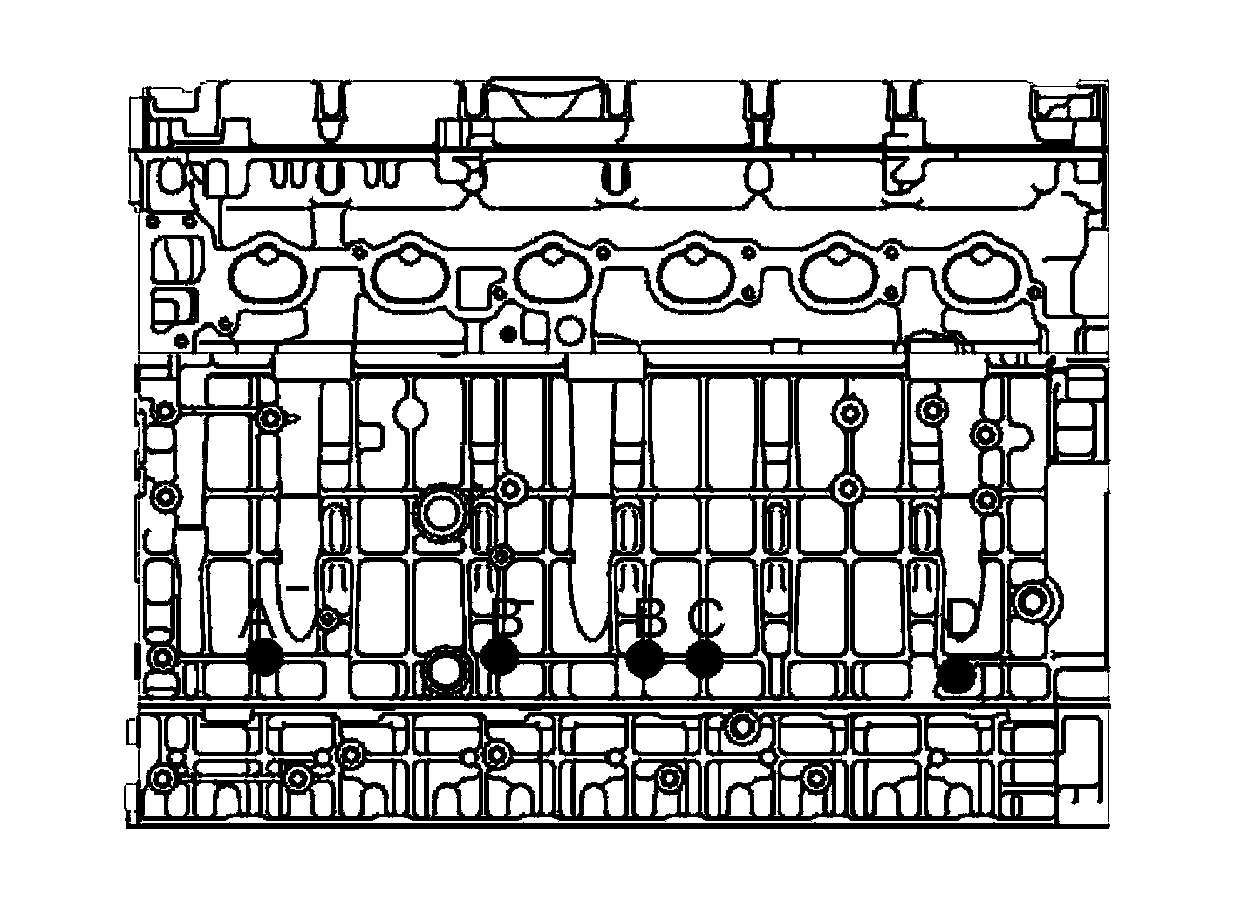

Engine Intake Side

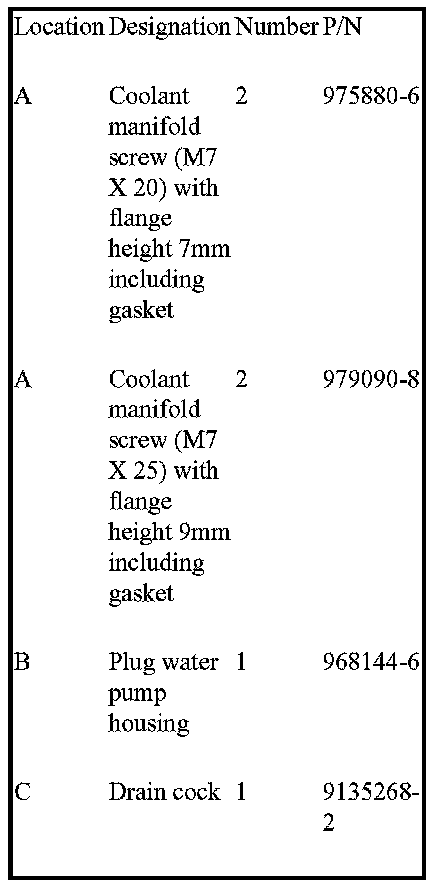

Engine Exhaust Side

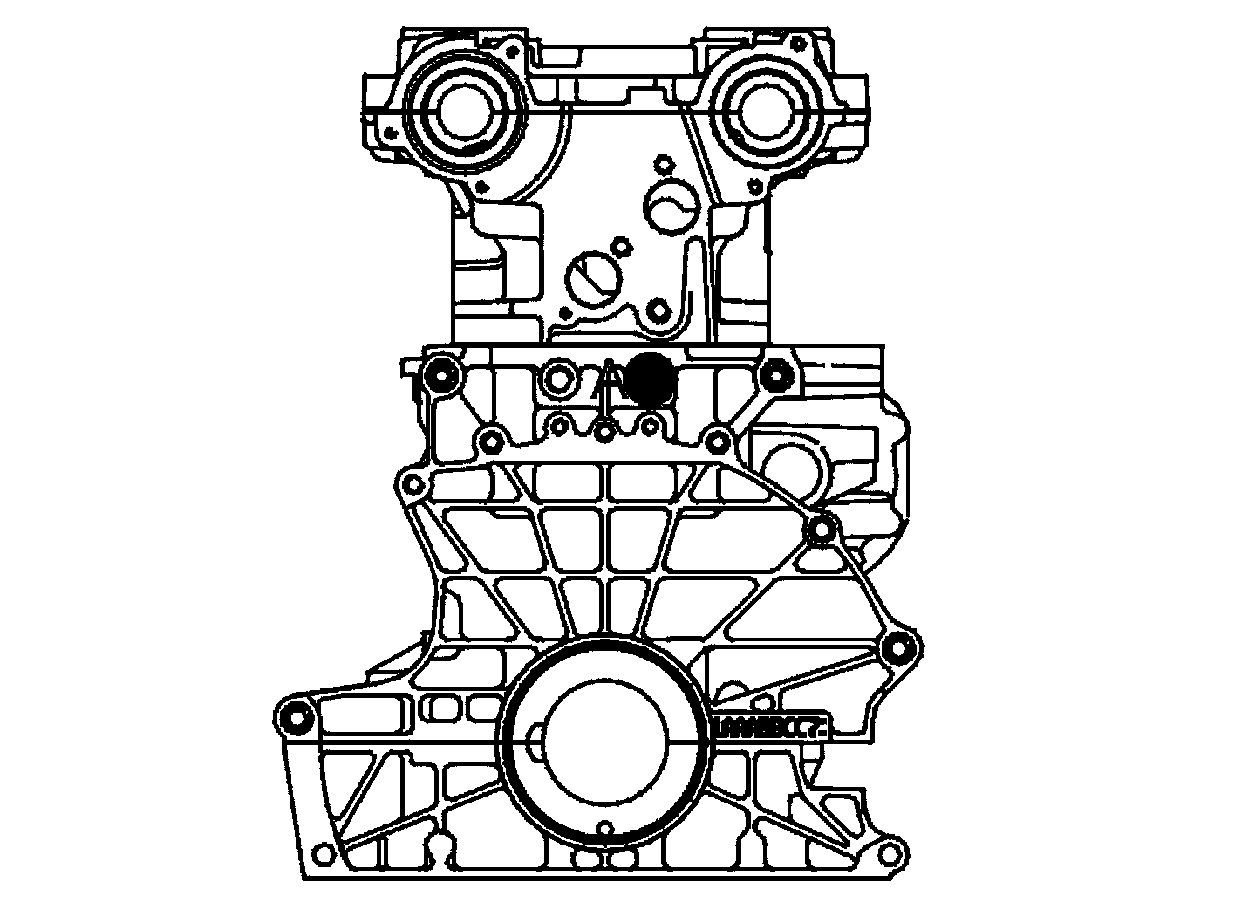

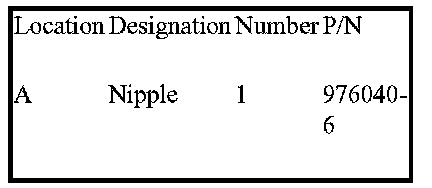

Rear Of Engine

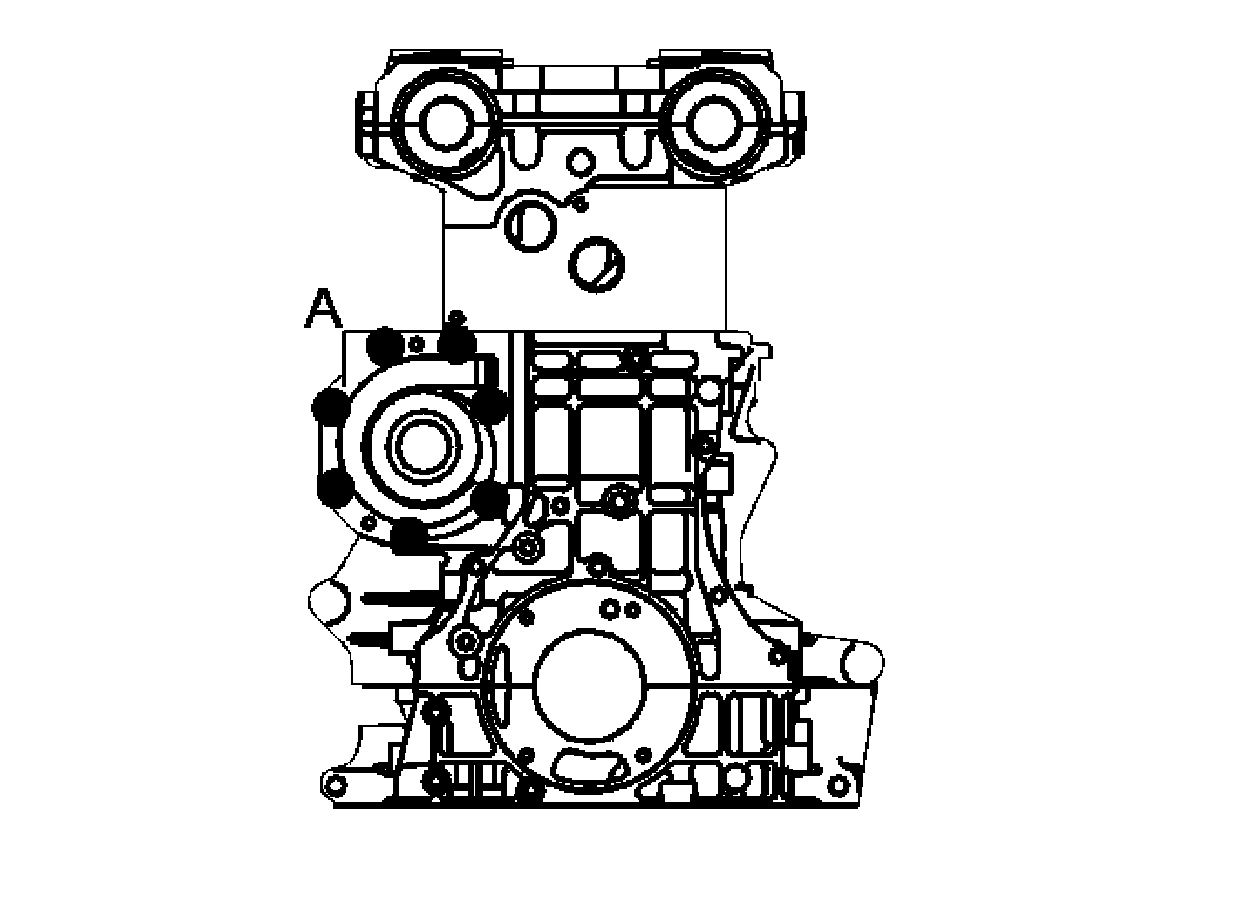

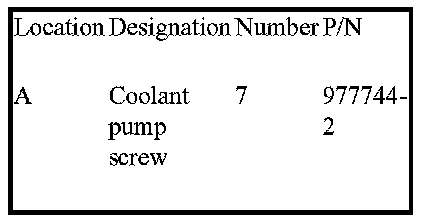

Engine Front
