Torque Rod, Lower, Replacing

Torque Rod, lower, replacing

Removal







Raise the car.

Remove

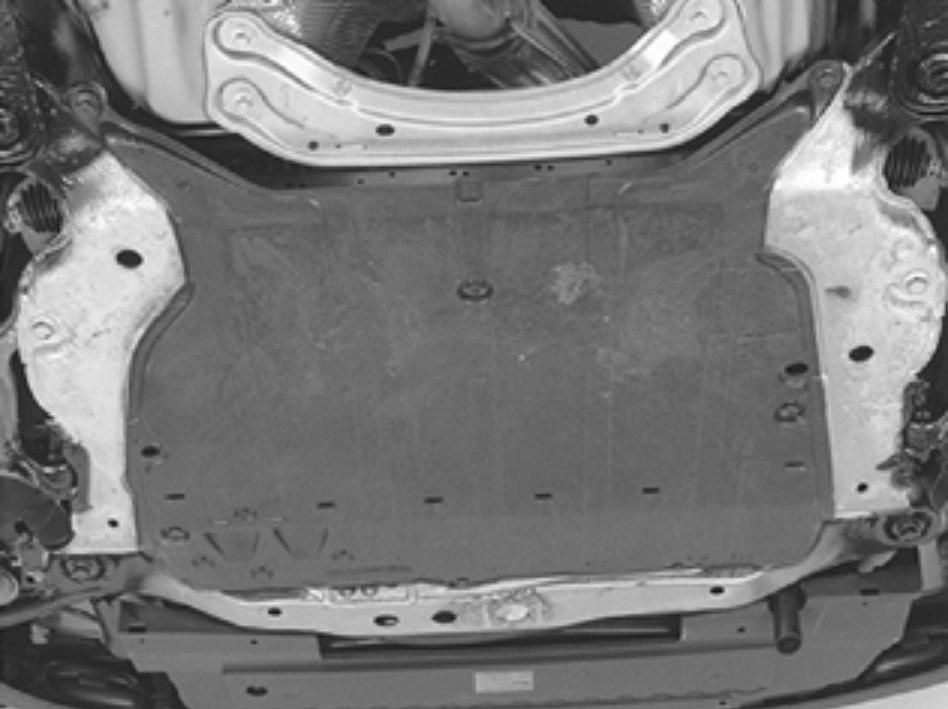

- the splash guard under the engine
- the torque rod from the transmission and sub-frame.







- install the new torque rod

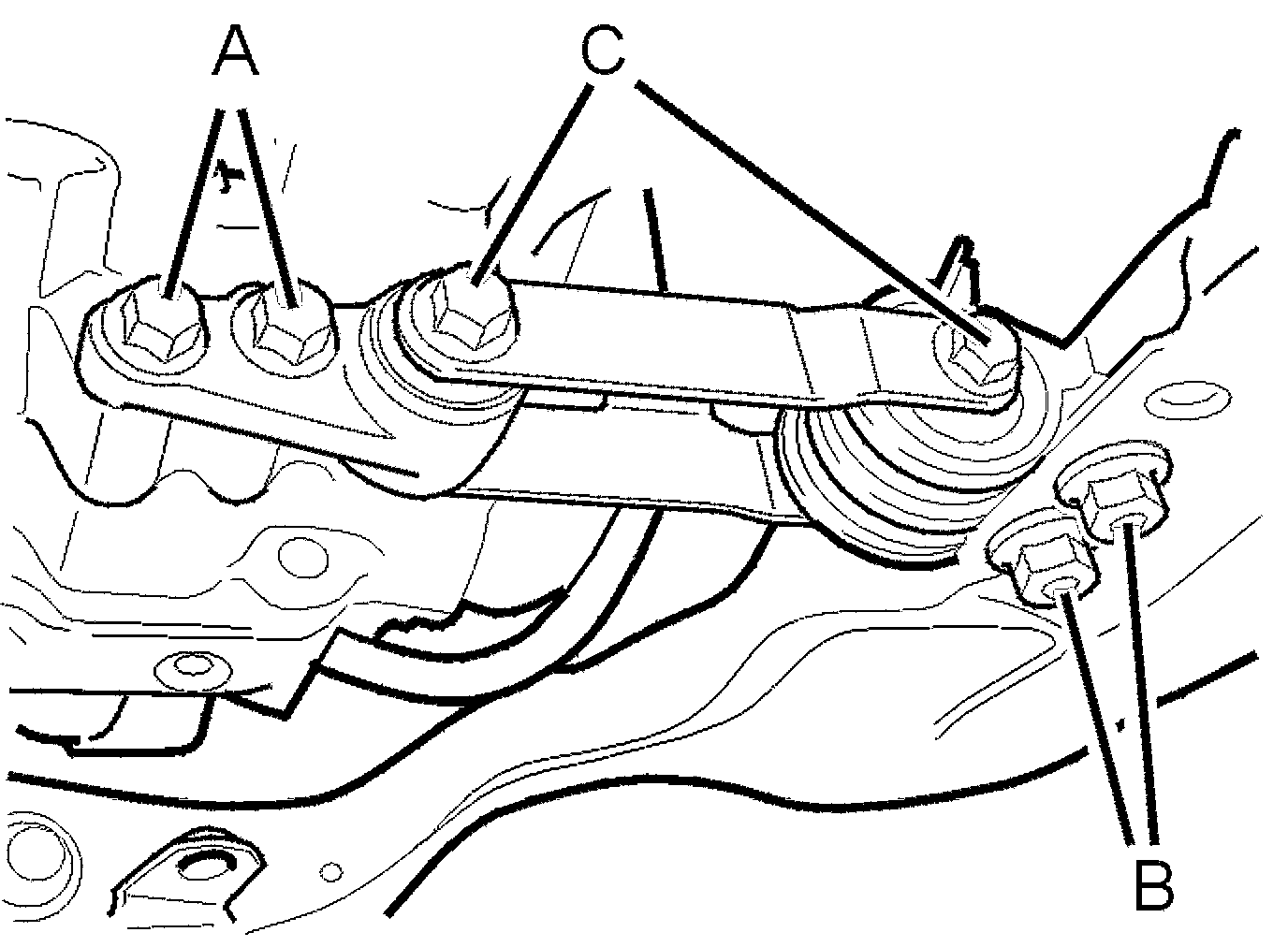

- Tighten the screws (A) to the transmission. Tighten to 35 Nm. Angle-tighten 40 degree
- tighten the nuts(B) to the sub-frame. Tighten to 65 Nm. Angle tighten 60 degree
- Tighten the nuts(C). Tighten to 35 Nm. Angle-tighten 90 degree.
