Replacing the Torque Rod

Replacing The Torque Rod

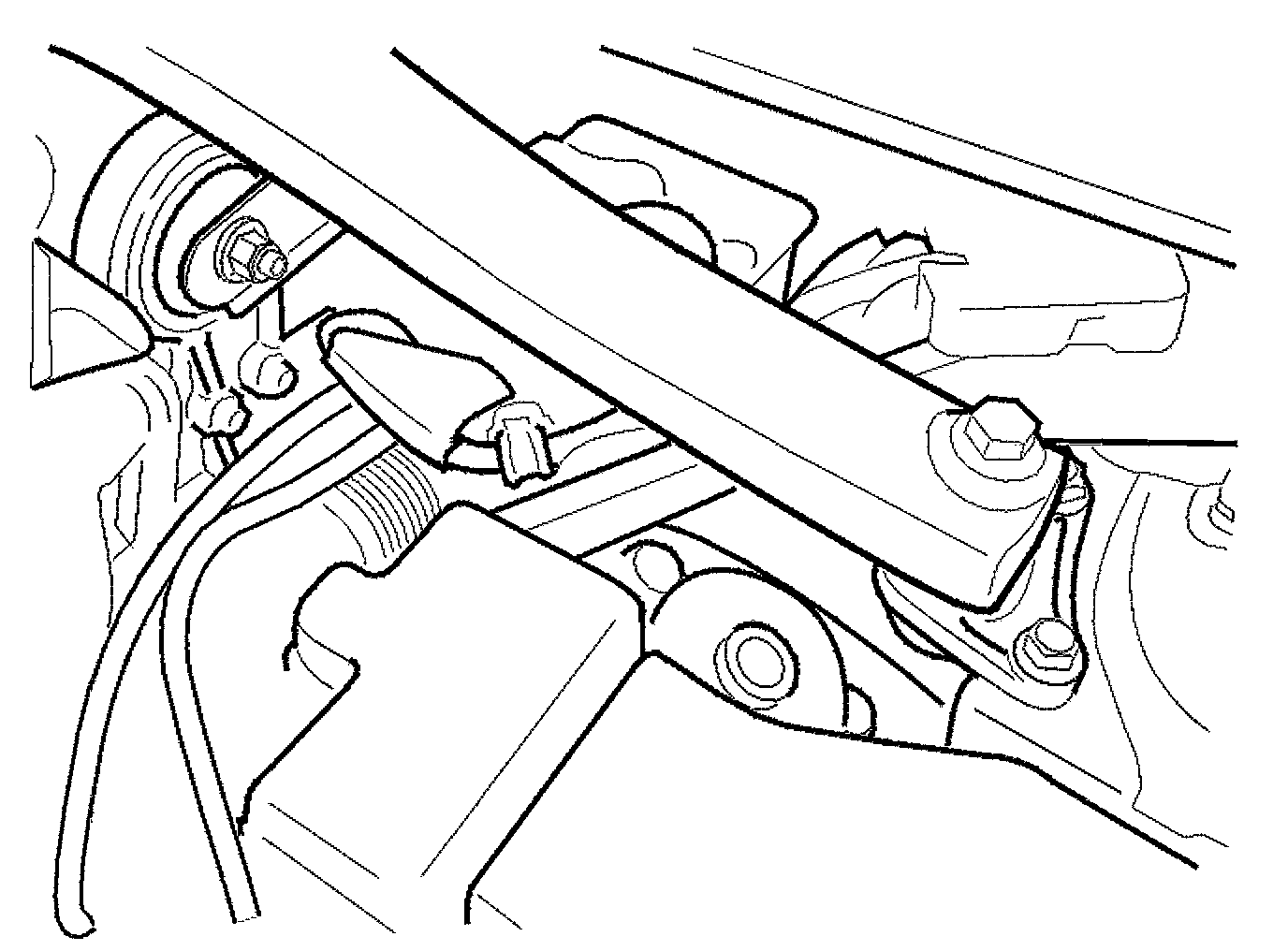

Remove







- the screw for the torque rod mounting in the torque control arm and bracket on the engine
- the screws at the suspension turrets
- the torque rod.

Transfer

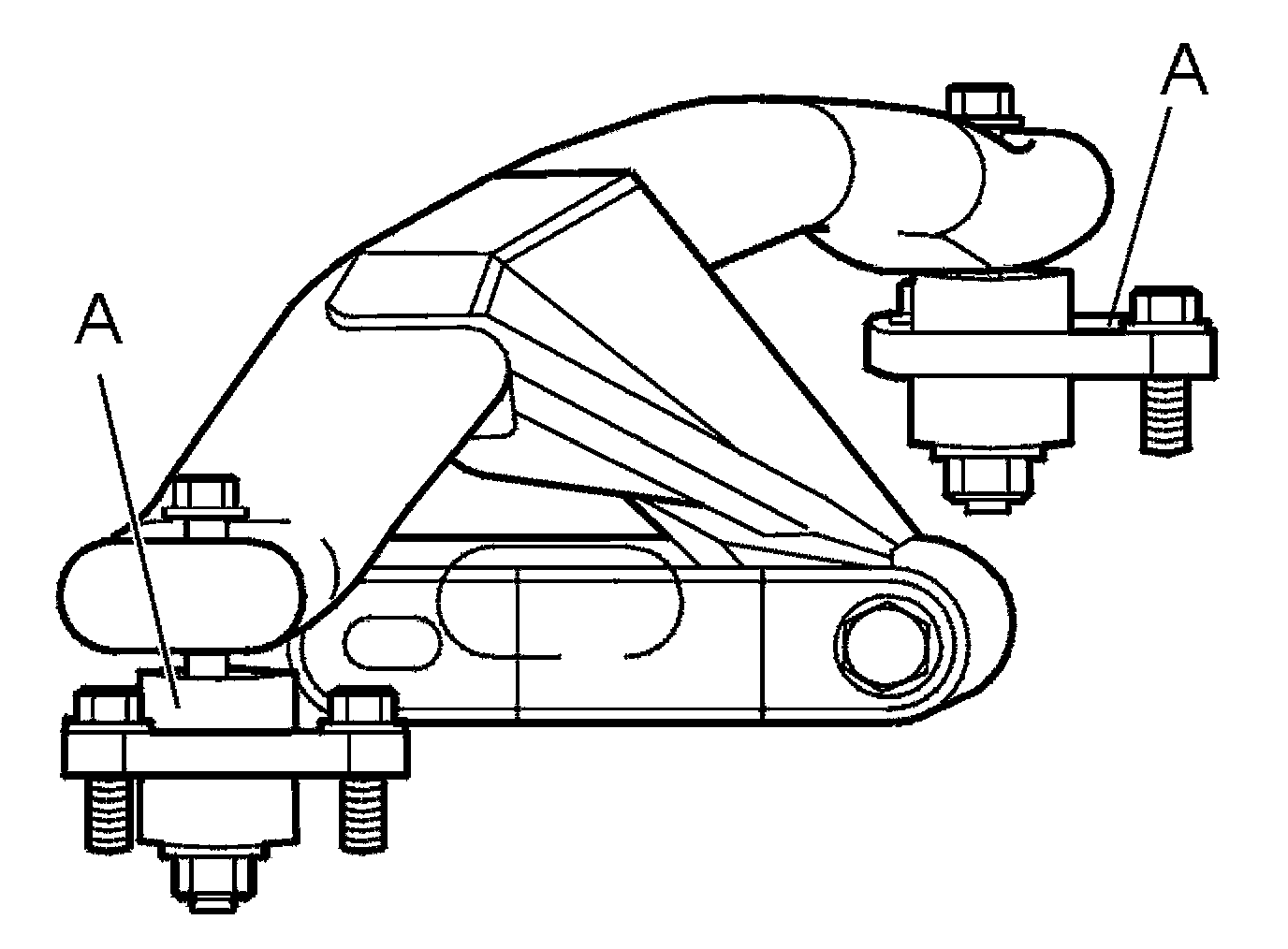

- the brackets (A) on the left and right-hand sides to the new torque rod. Do not tighten yet.

Install







- the torque rod
- the screws for the brackets at the suspension turrets. Tighten to 50 Nm.
- the screw and nut for the torque rod mounting in the torque control arm and bracket on the engine. Tighten to 80 Nm.

Tighten the torque rod to the brackets to 80 Nm.
