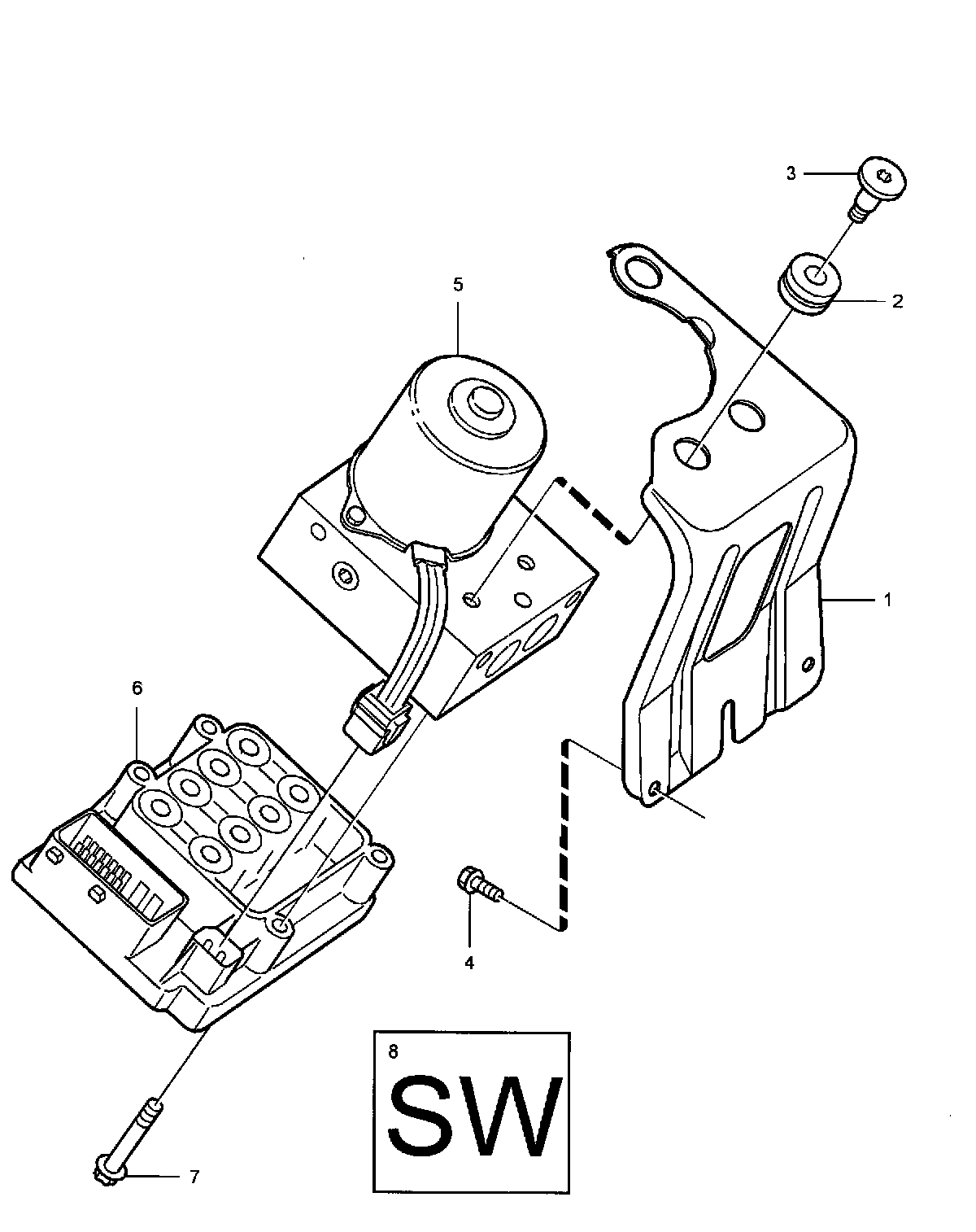

Hydraulic Control Assembly - Antilock Brakes



Part 1 Of 2:

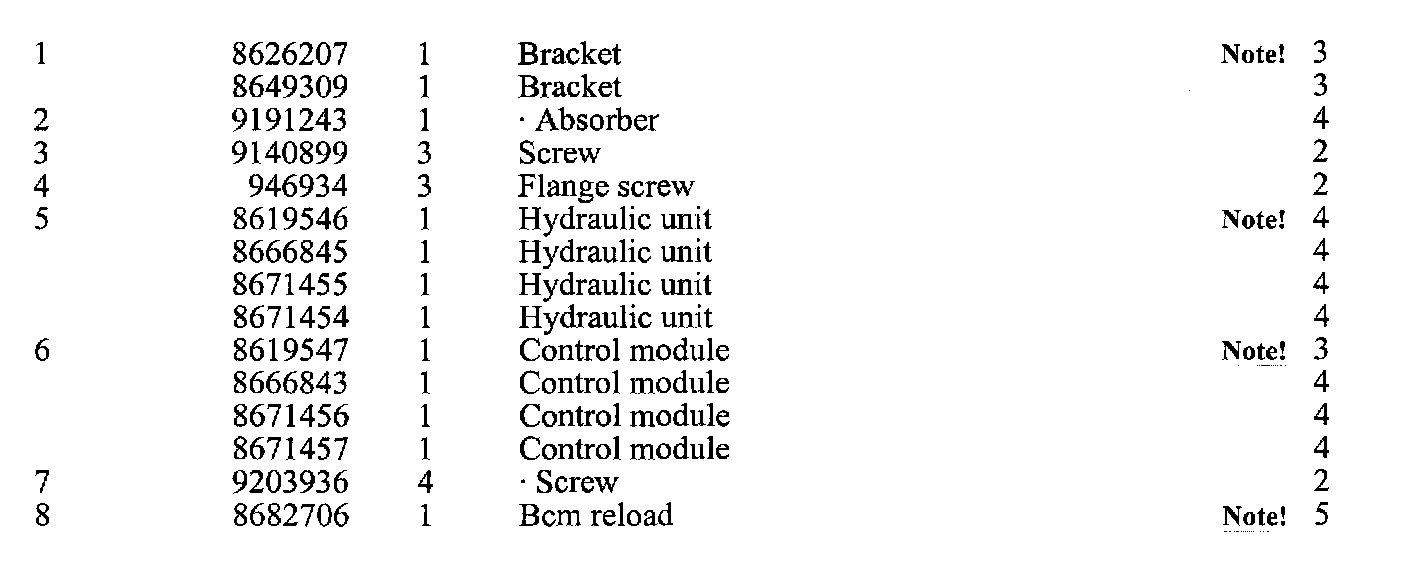

ABS-control unit Hydraulic modulator - AWD, V70, V70XC, XC70
