V70 XC AWD L5-2.4L Turbo VIN 58 B5244T3
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio/Stereo
>>
Radio Without Extra Amplifier
Radio Without Extra Amplifier

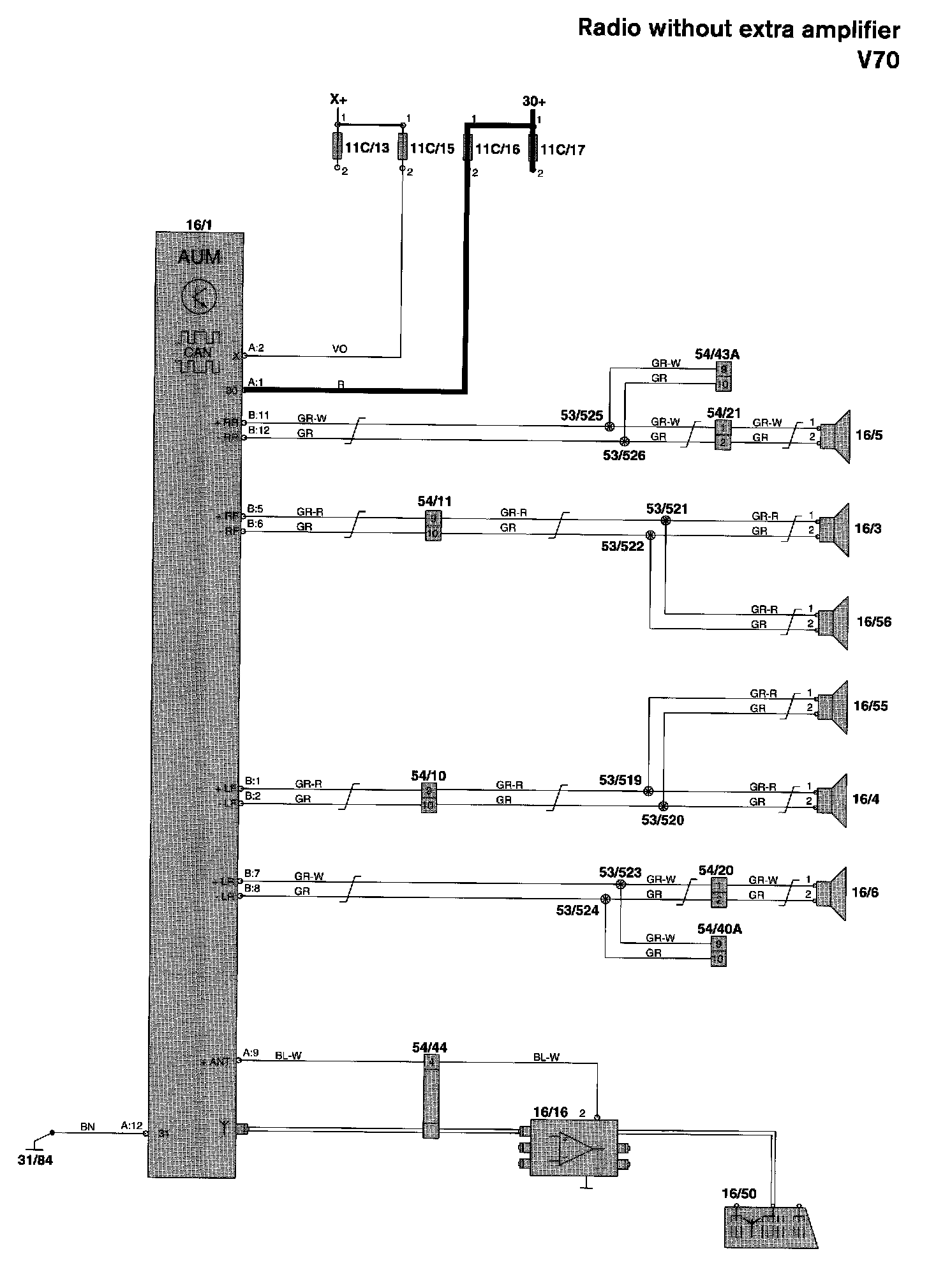

Radio Without Extra Amplifier:
Diagram Legend
Diagram Legend
