Radio With Extra Amplifier
Radio With Extra Amplifier

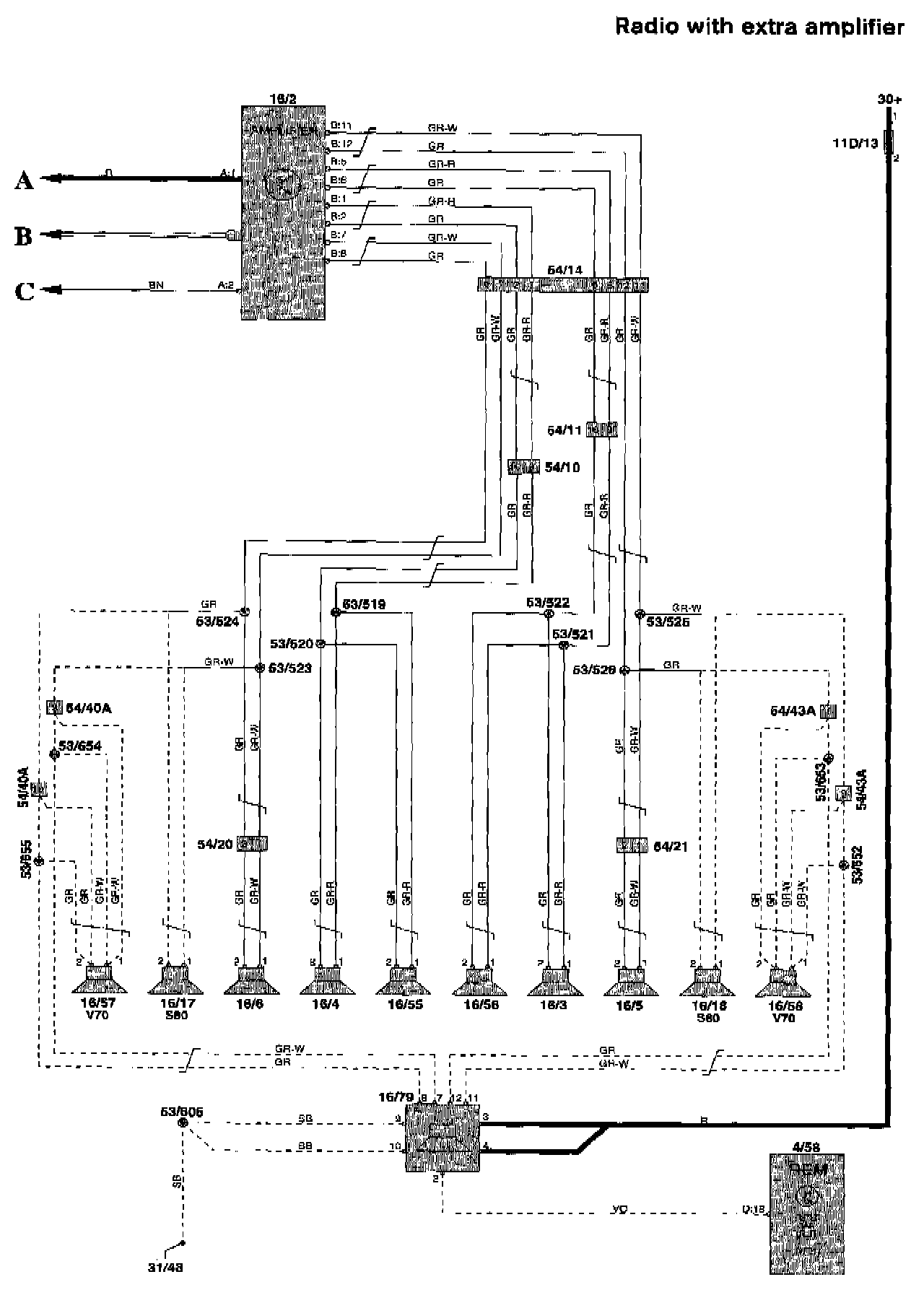

Radio With Extra Amplifier - Part 1:

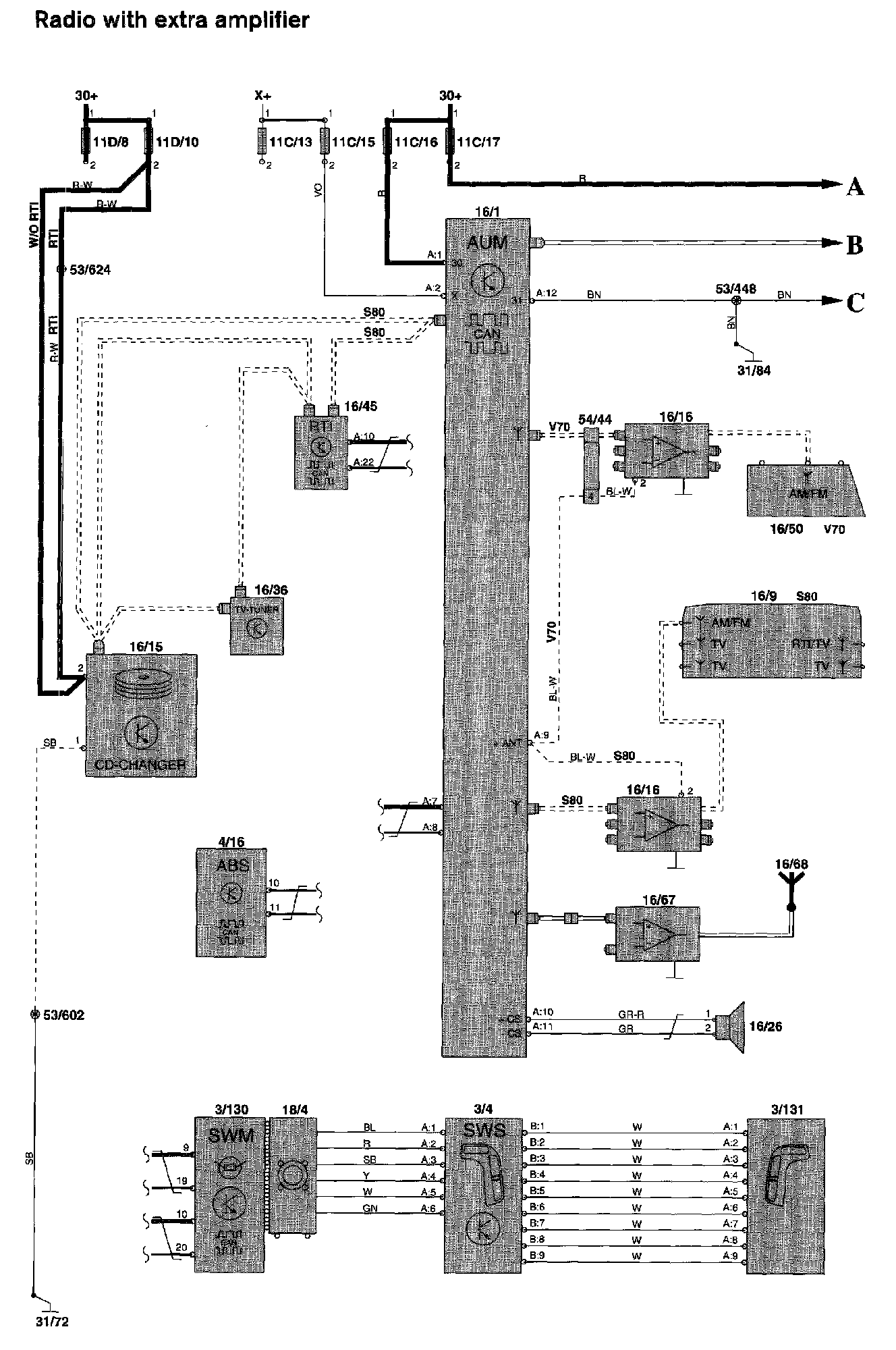

Radio With Extra Amplifier - Part 2:
Diagram Legend
Diagram Legend
