Home >> Volvo >> 2001 >> V70 XC AWD L5-2.4L Turbo VIN 58 B5244T3 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram

System Diagram

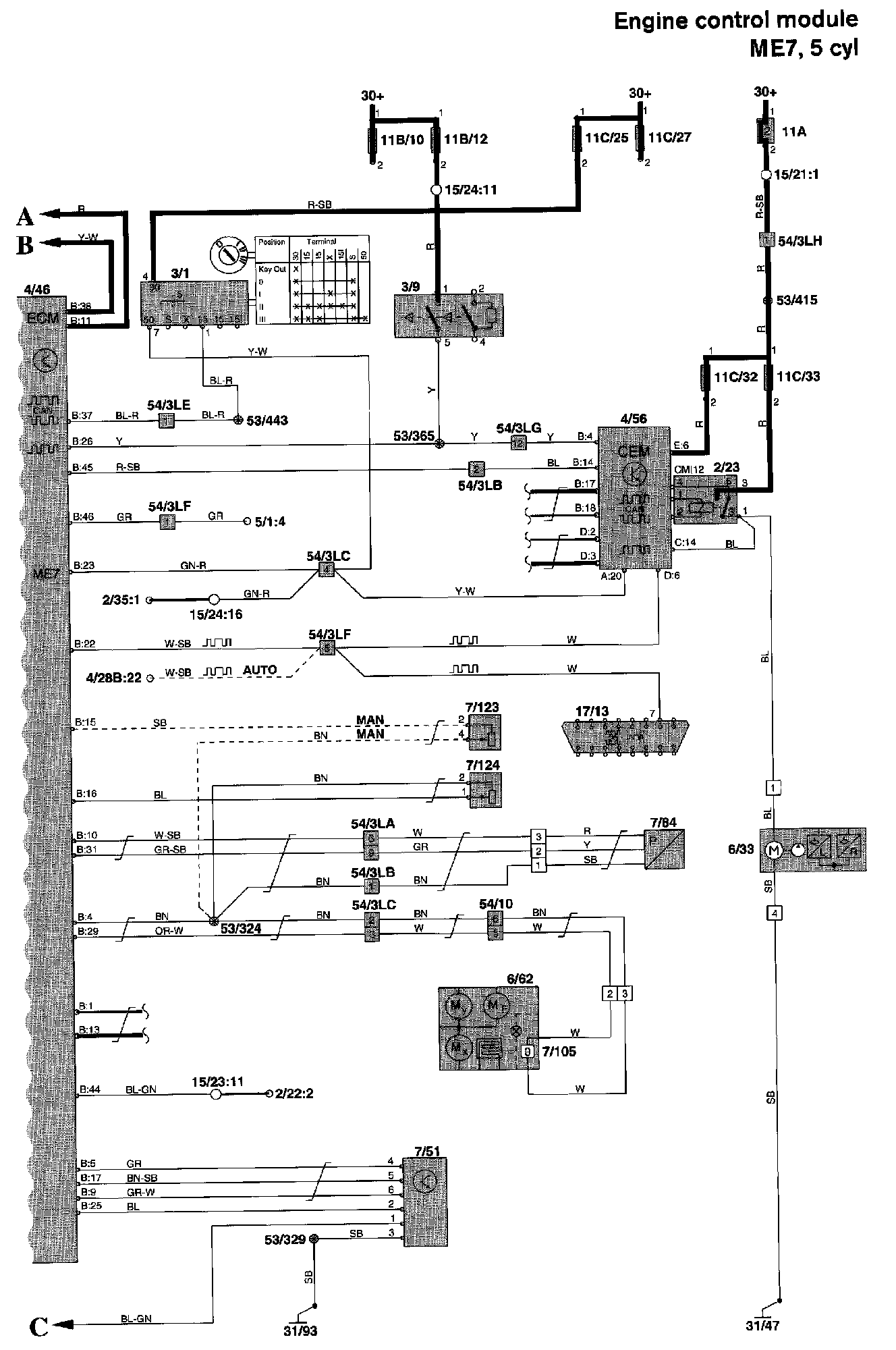

Engine Control Module - Part 1:

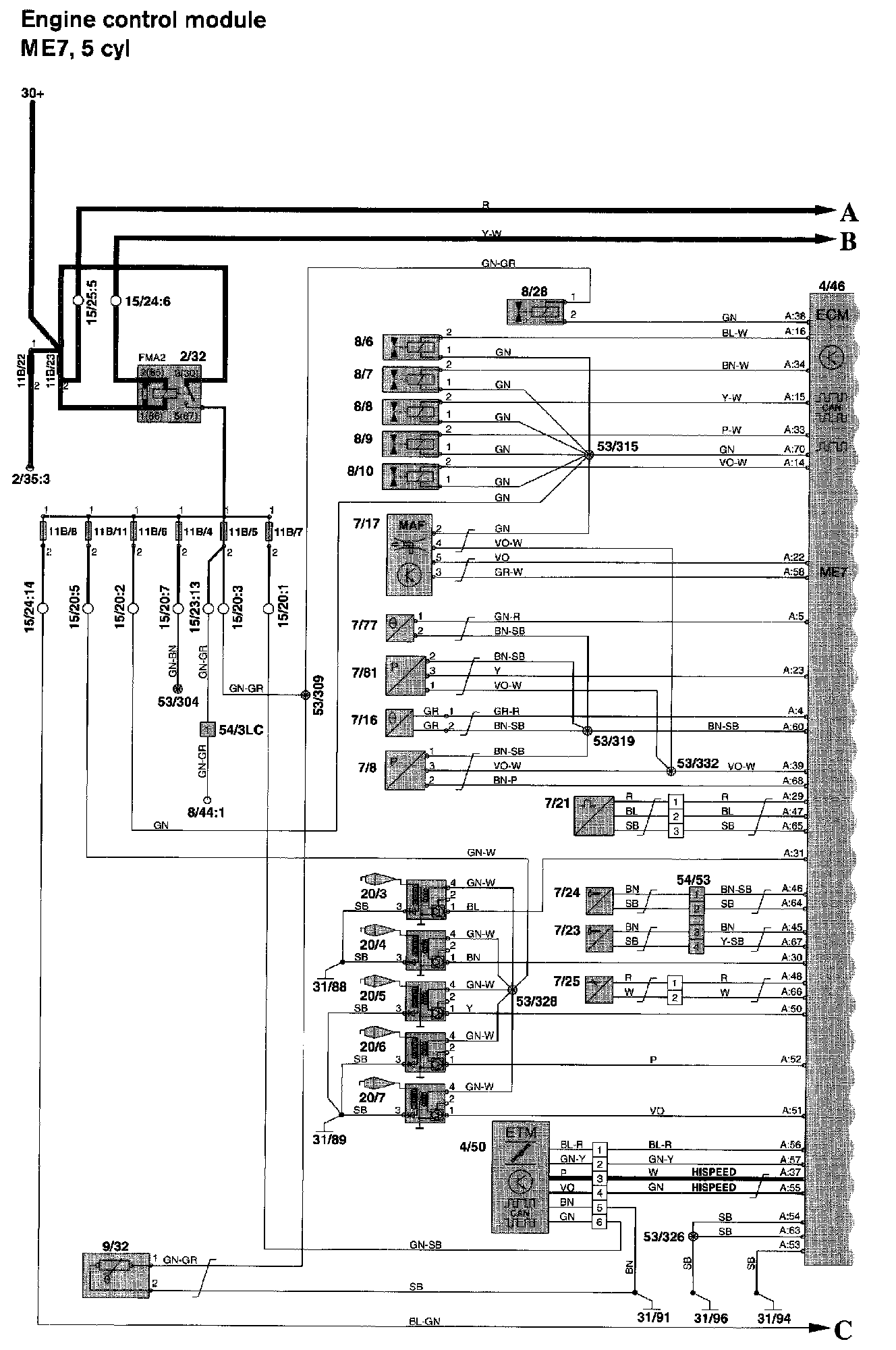

Engine Control Module - Part 2:






Diagram Legend Diagram Legend
