Data Communication

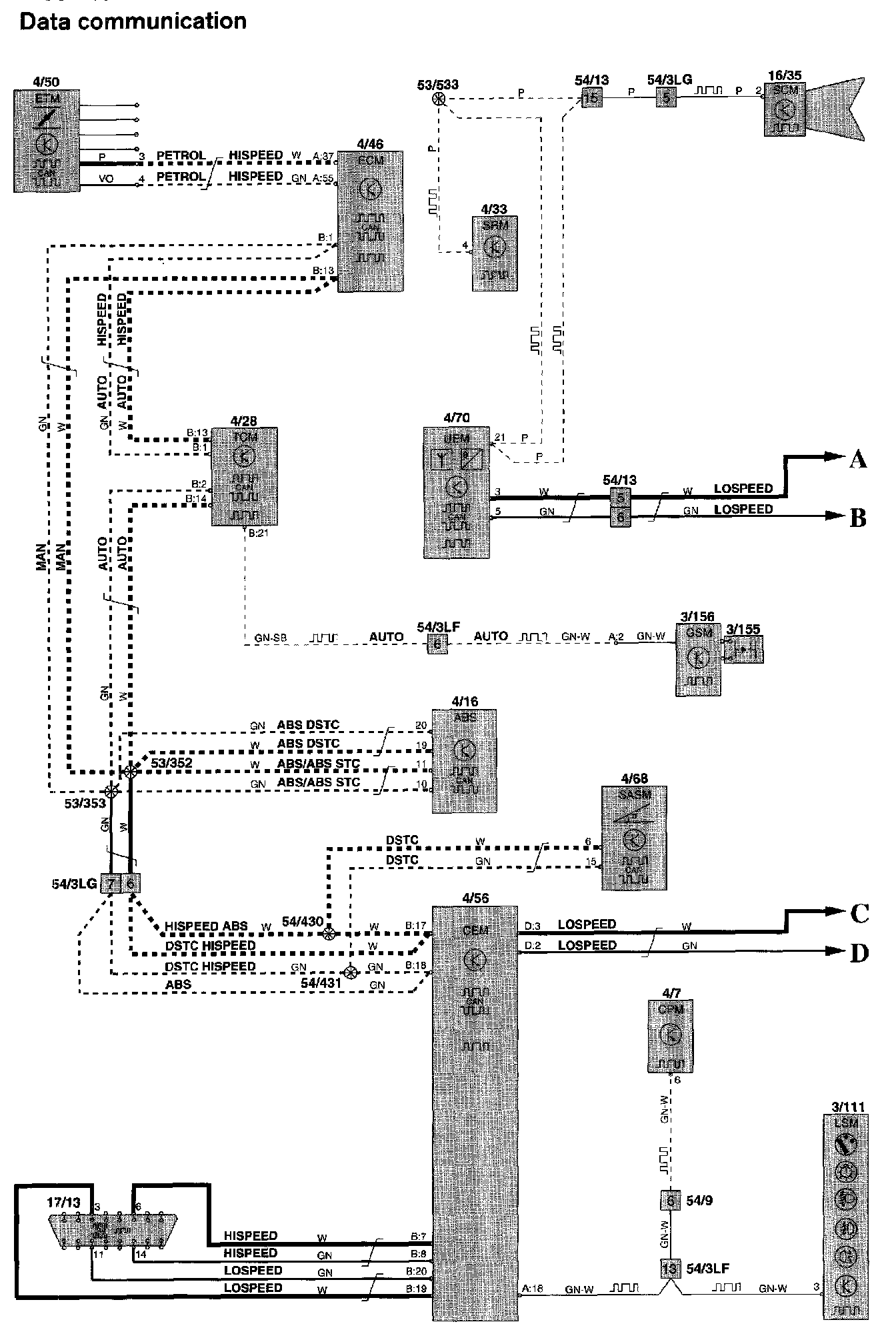

Data Communication - Part 1:

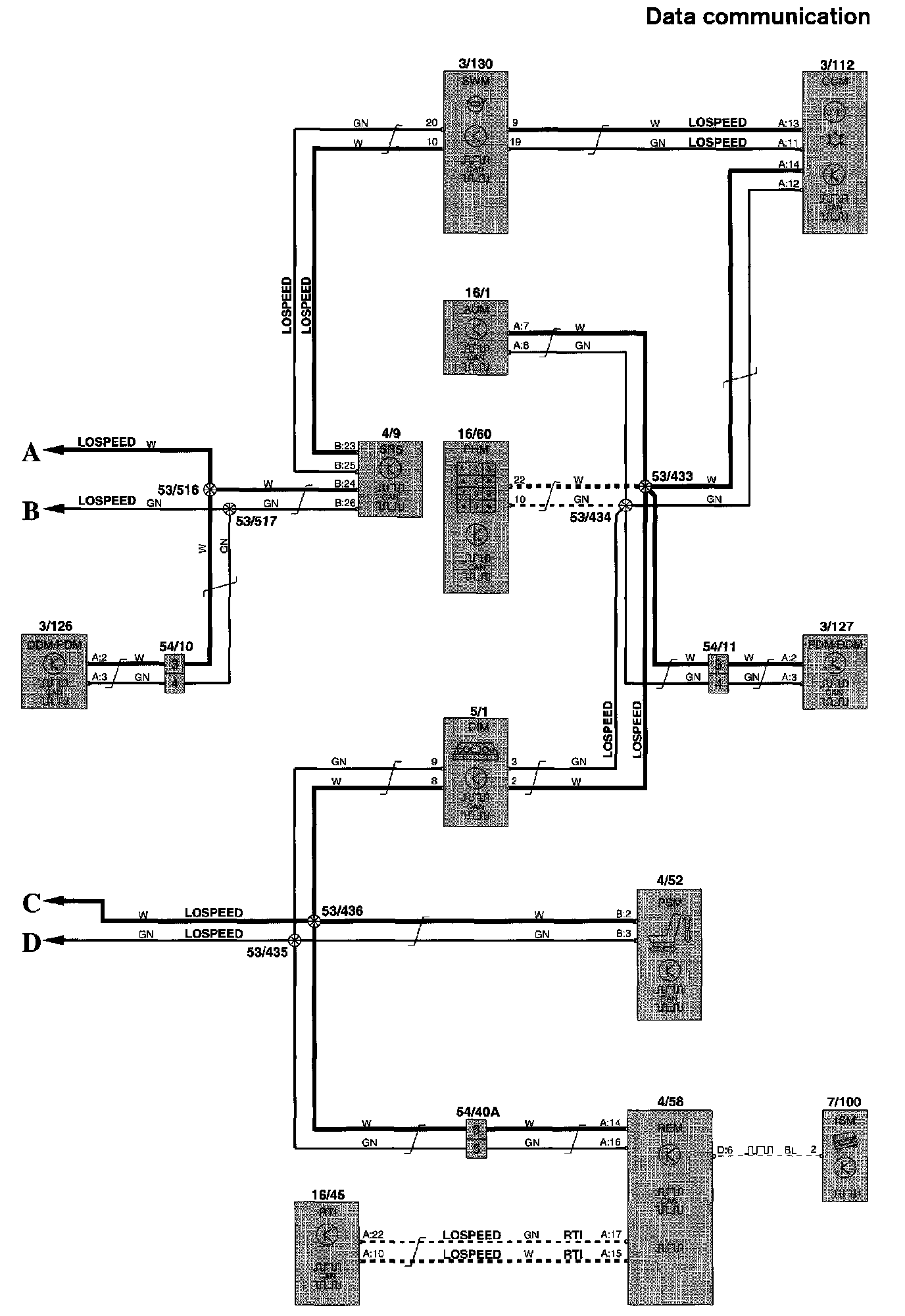

Data Communication - Part 2:






Diagram Legend Diagram Legend
