Electrical Distribution, Overview

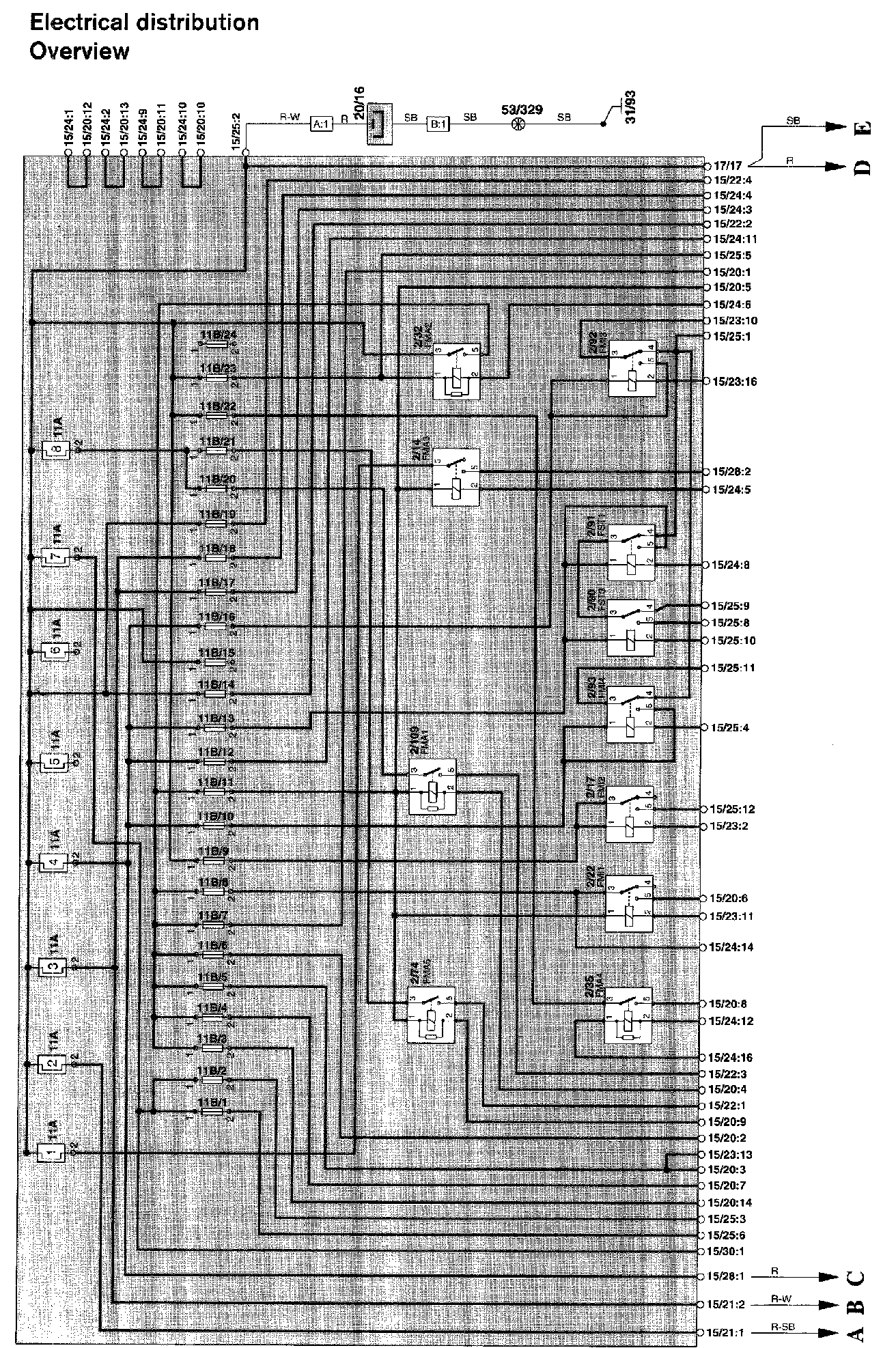

Electrical Distribution Overview - Part 1:

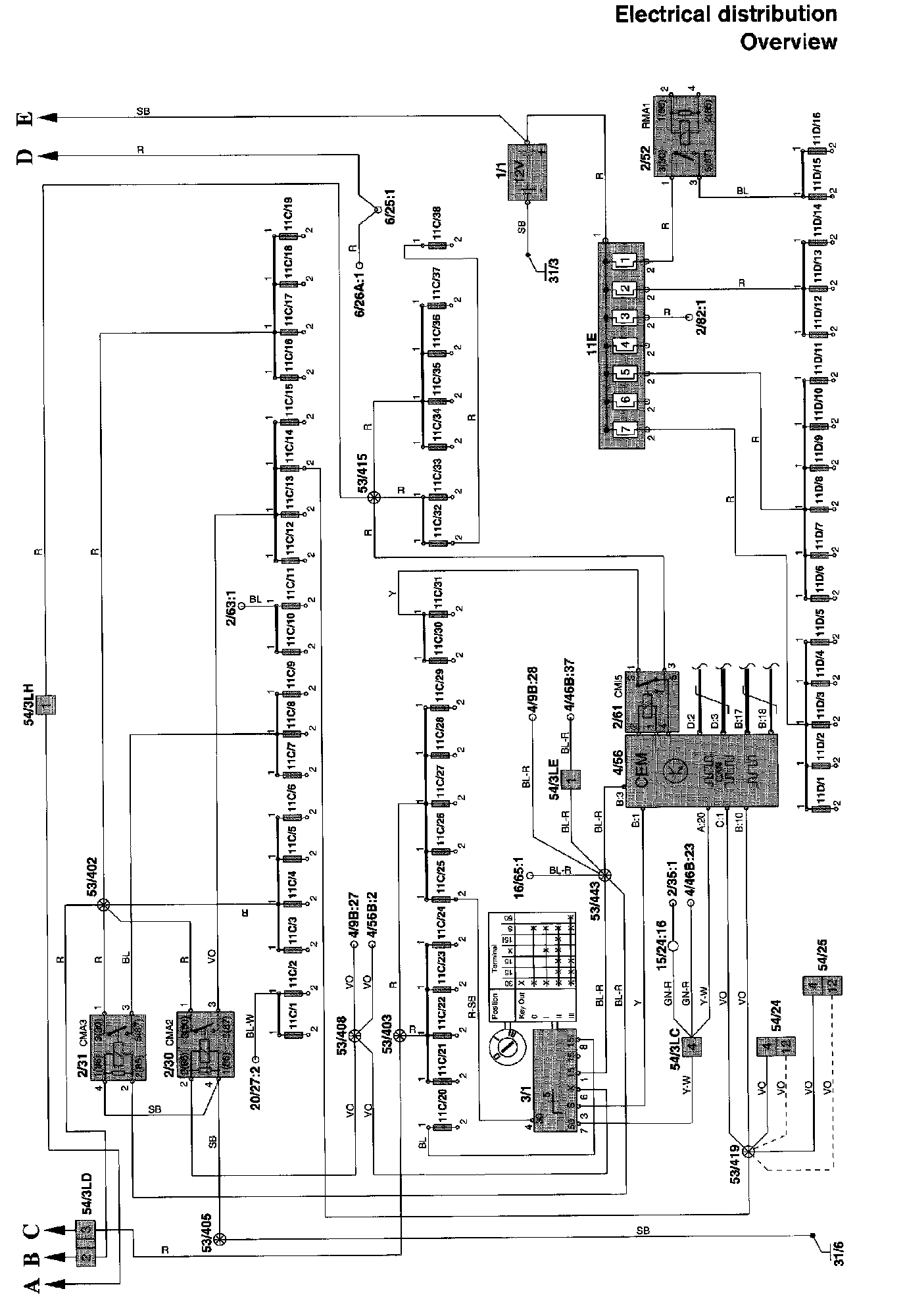

Electrical Distribution Overview - Part 2:






Diagram Legend Diagram Legend
