Home >> Volvo >> 2001 >> V70 XC AWD L5-2.4L Turbo VIN 58 B5244T3 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument and Control Lighting

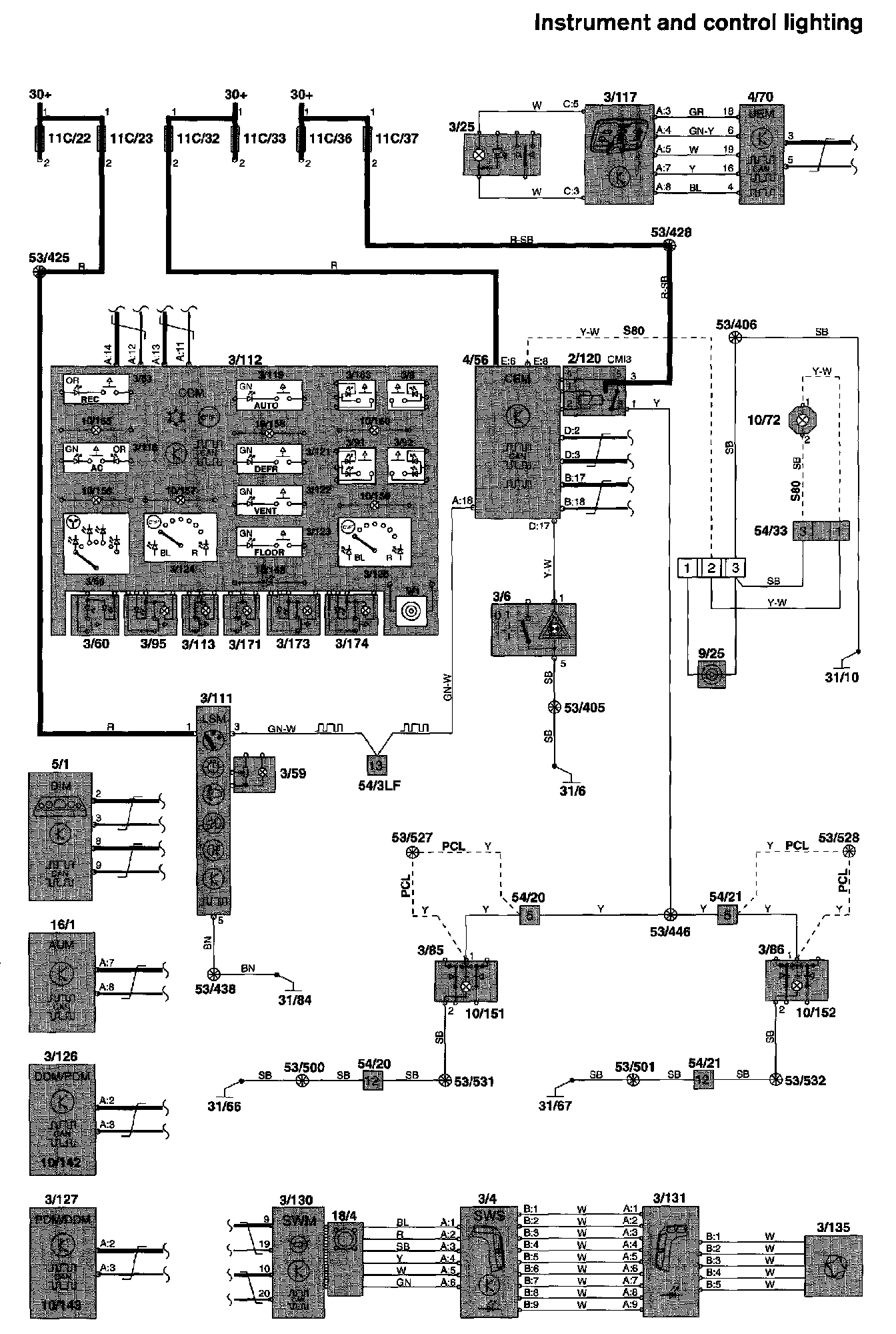

Instrument and Control Lighting




Instrument And Control Lighting:






Diagram Legend Diagram Legend
