Central Electronic Module (CEM)

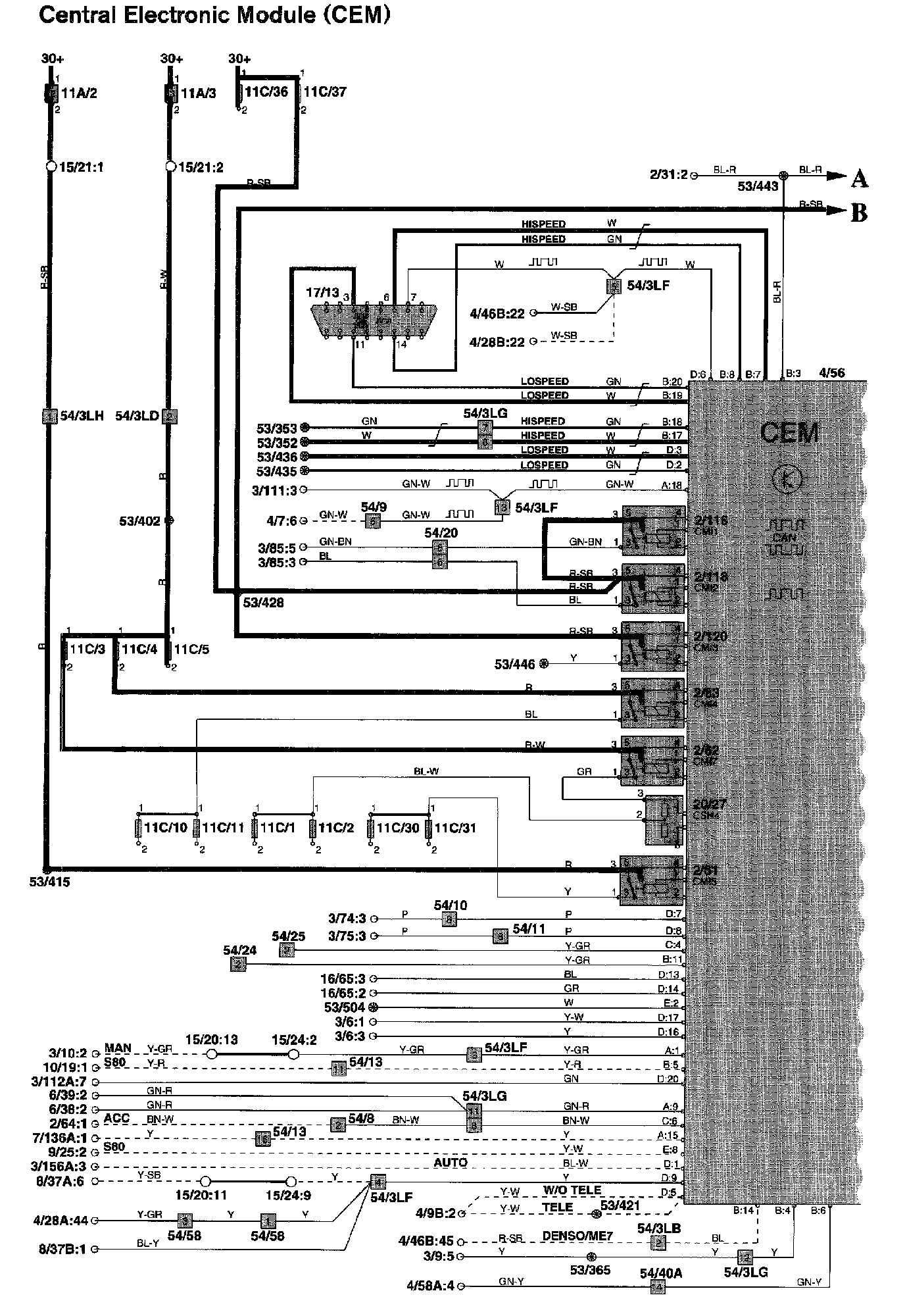

Central Electronic Module - Part 1:

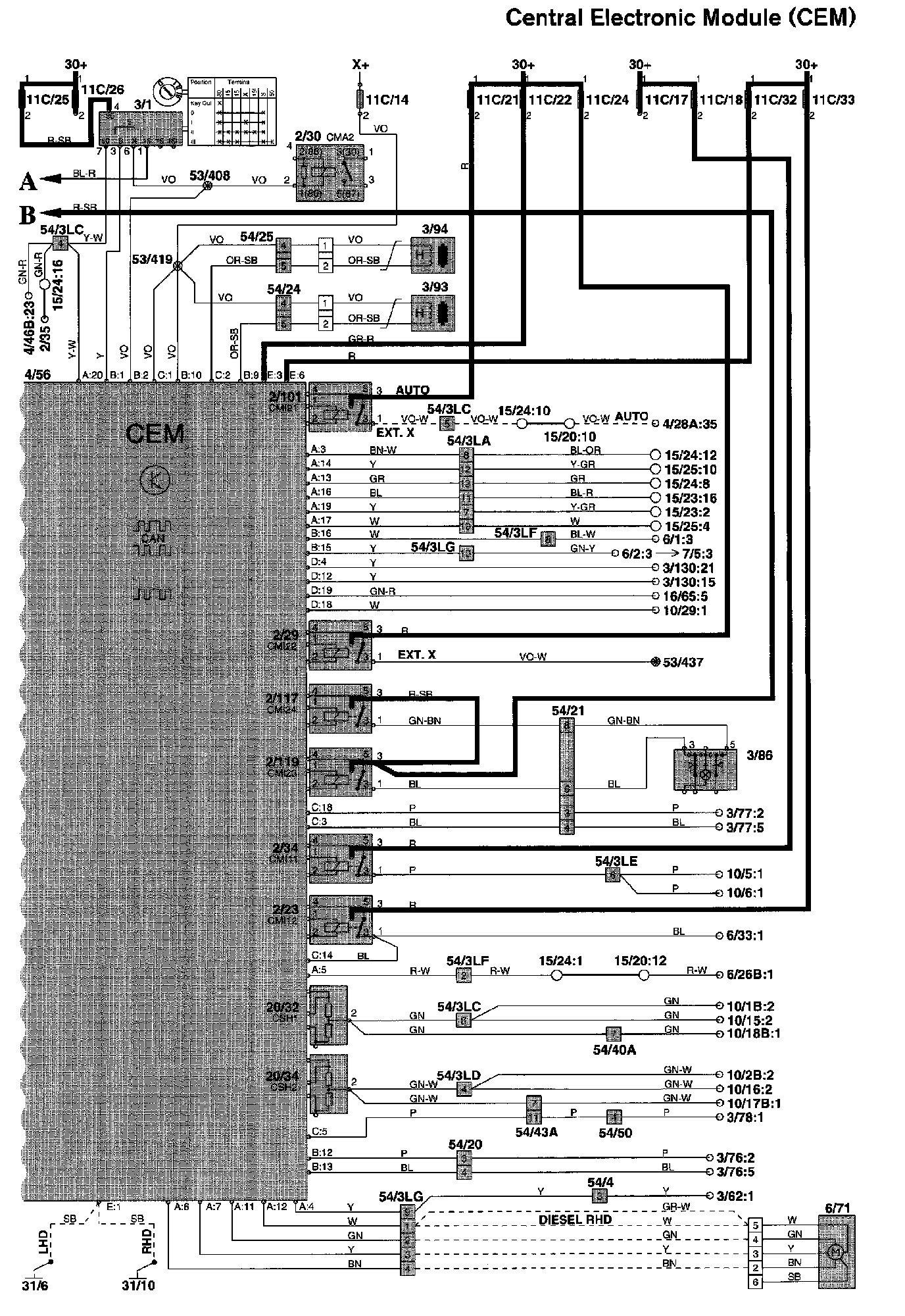

Central Electronic Module - Part 2:






Diagram Legend Diagram Legend
