Electronically Controlled Automatic Transmission

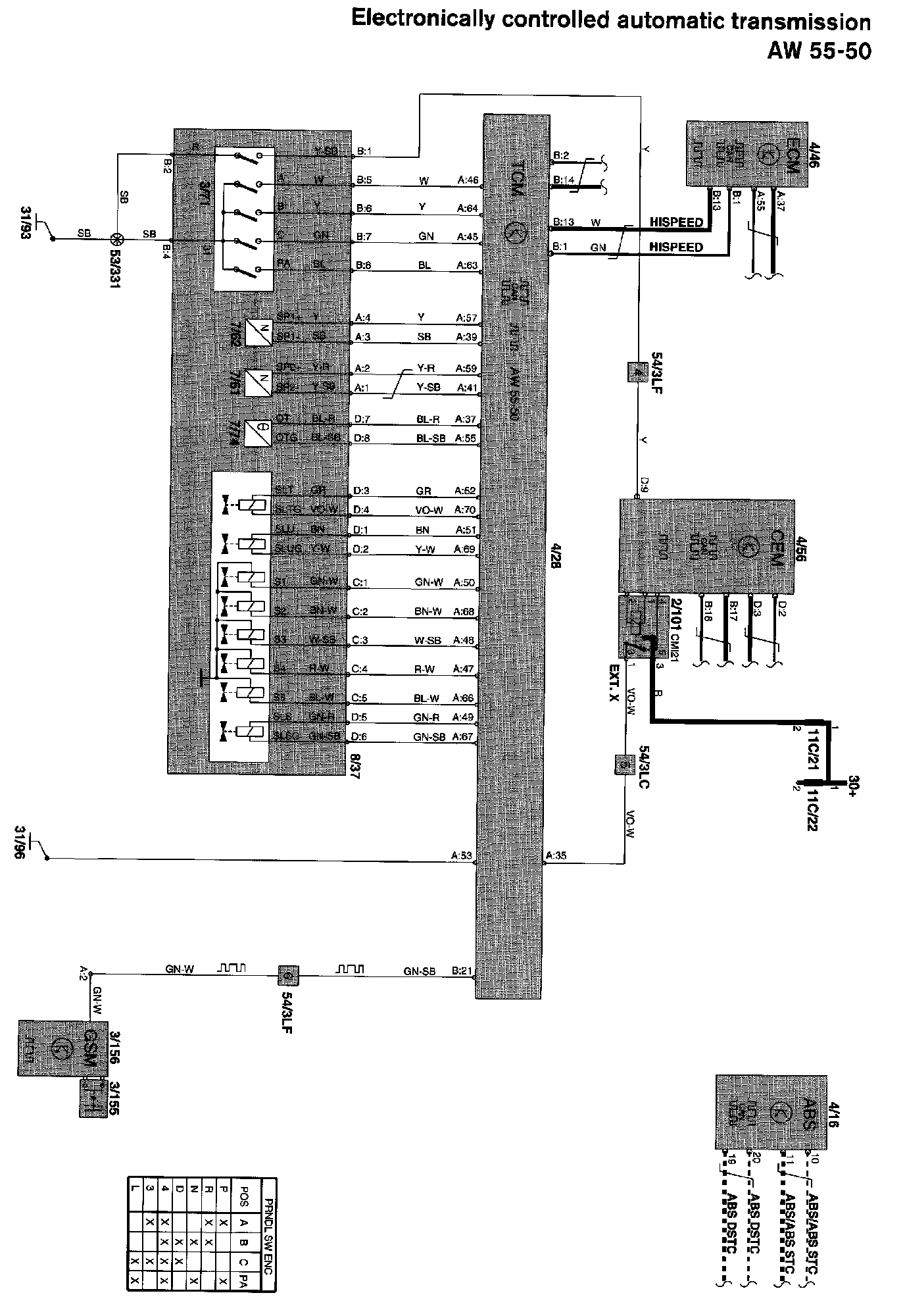

Electronically Controlled Automatic Transmission:

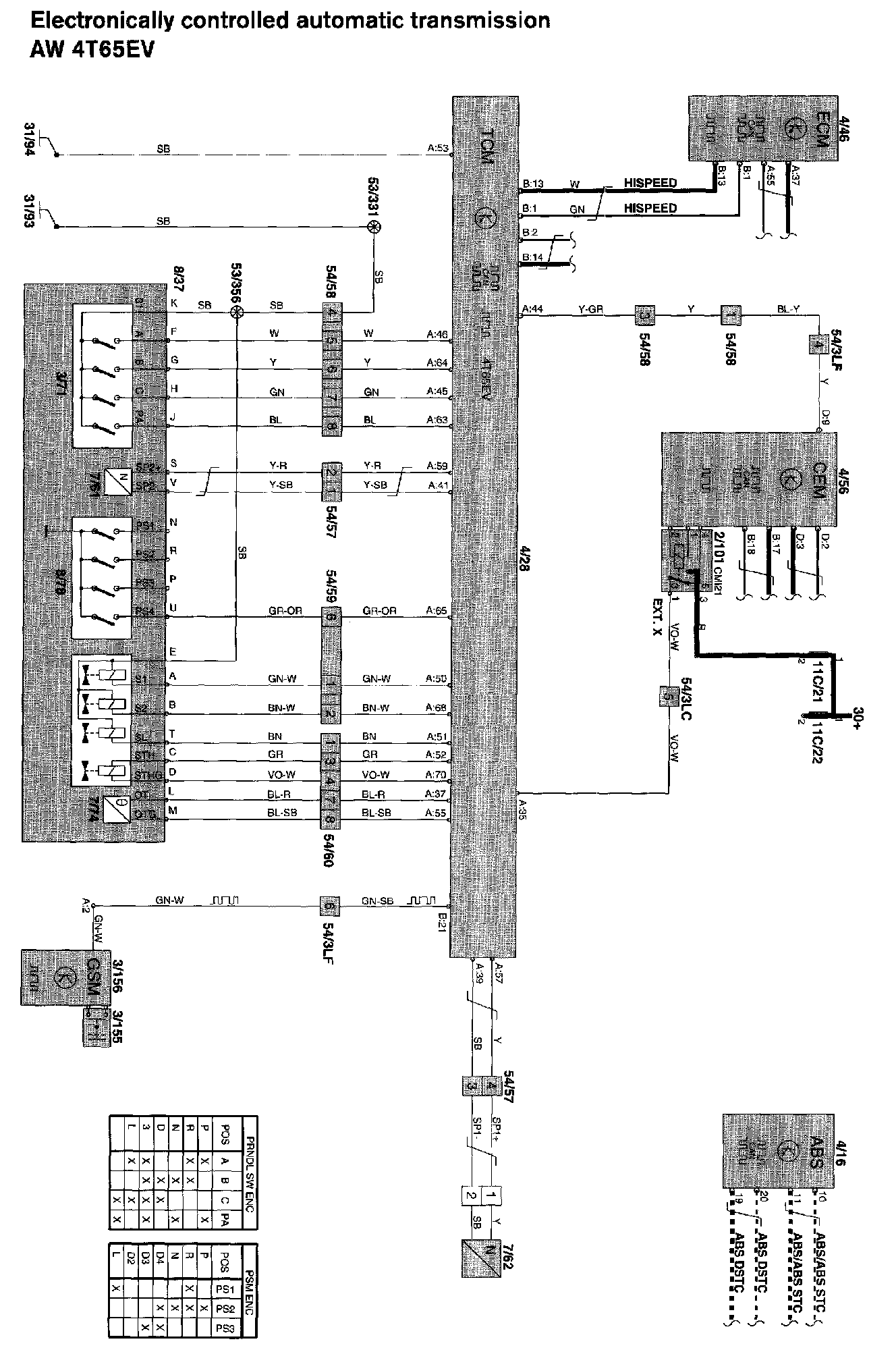

Electronically Controlled Automatic Transmission:






Electronically Controlled Automatic Transmission:






Diagram Legend Diagram Legend
