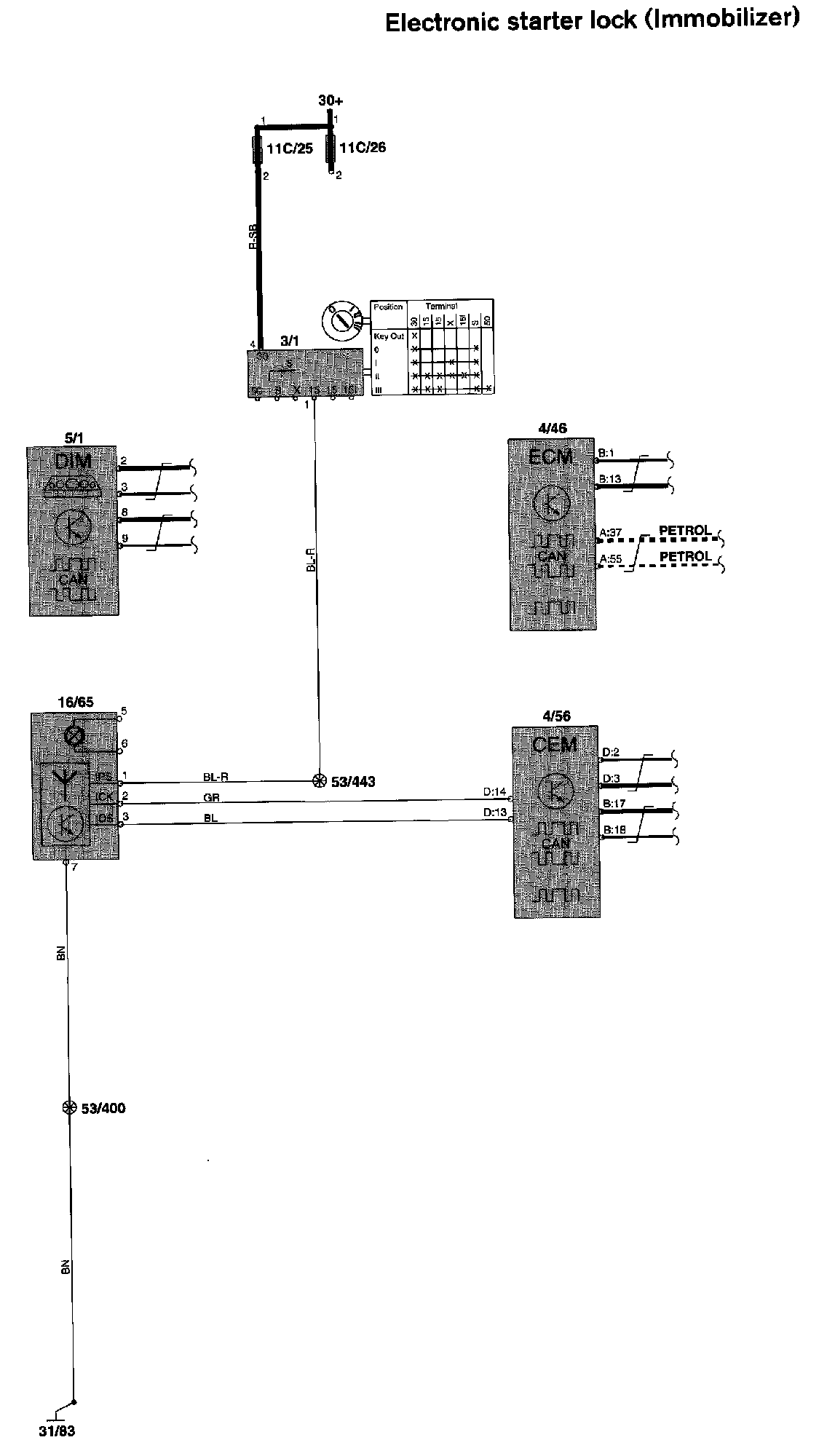

Electronic Starter Lock (Immobilizer)




Electronic Starter Lock (Immobilizer):






Diagram Legend Diagram Legend
