Home >> Volvo >> 2001 >> V70 XC AWD L5-2.4L Turbo VIN 58 B5244T3 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Anti-Theft Alarm

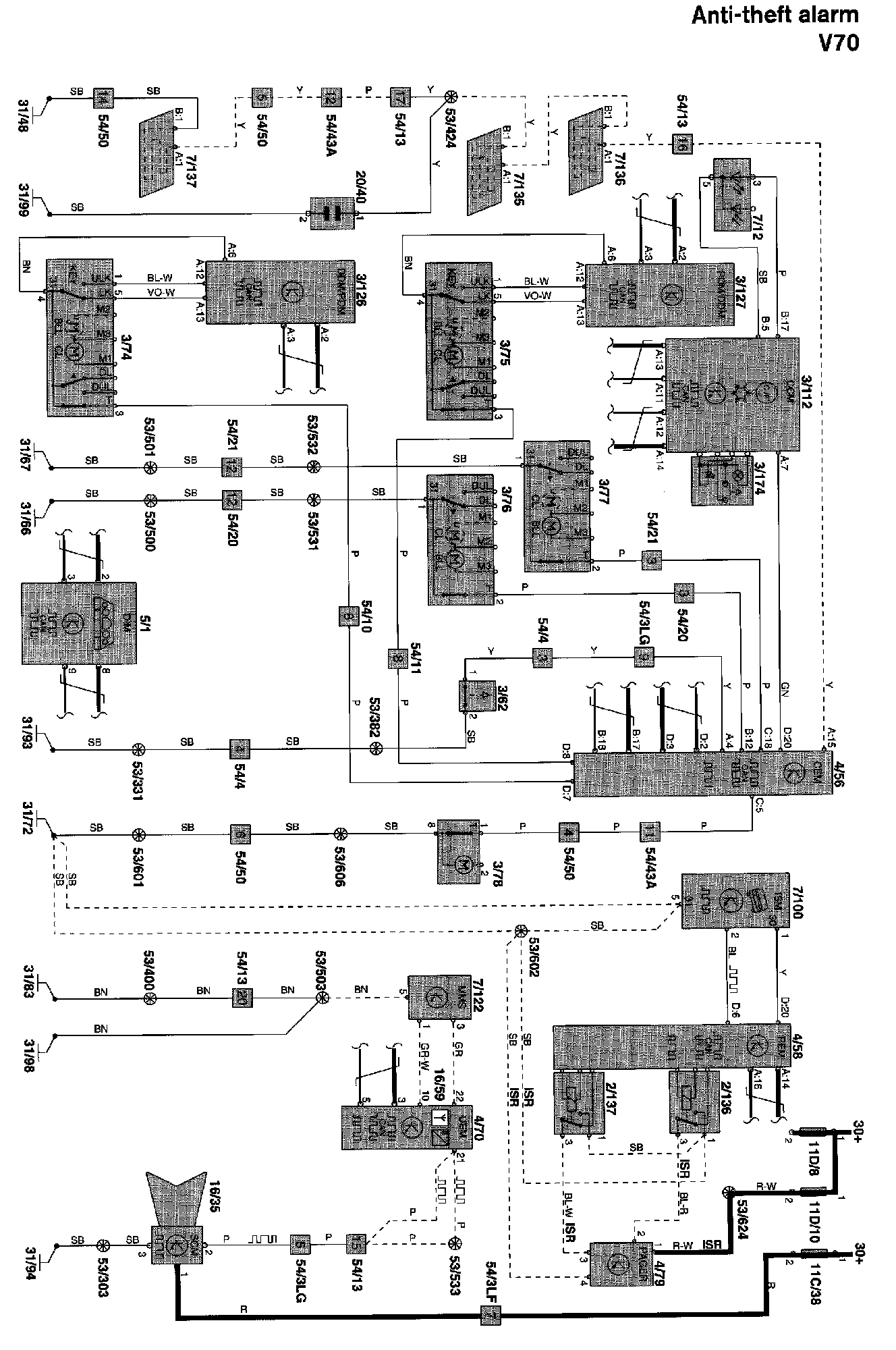

Anti-Theft Alarm




Anti-theft Alarm:






Diagram Legend Diagram Legend
