Location of Components in the DSTC System

Location of components in the DSTC system

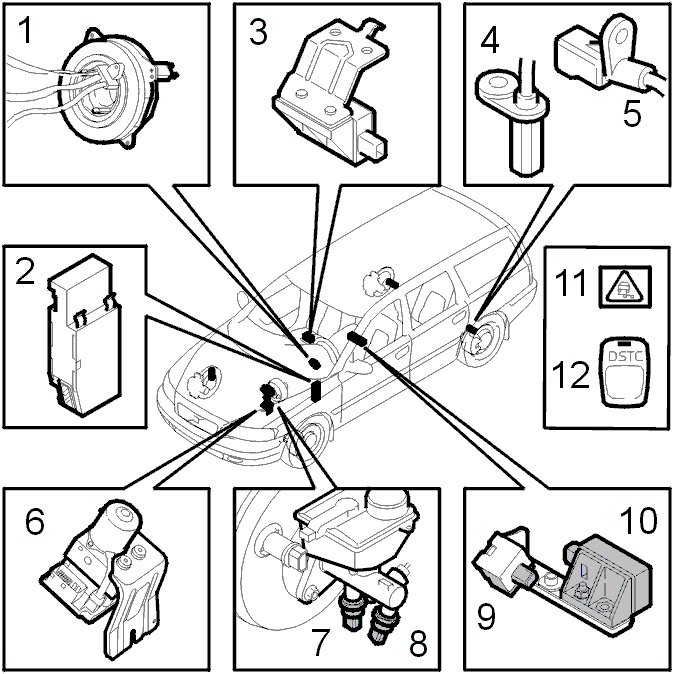

DSTC system components




1 Contact reel / steering wheel angle sensor
2 Control module for the steering wheel angle sensor
3 Yaw rate sensor 2
4 Front wheel sensor
5 Rear wheel sensor
6 Hydraulic unit with control module
7 Pressure sensor, primary line (1)
8 Pressure sensor, secondary line (2)
9 Yaw rate sensor 1
10 Lateral acceleration sensor
11 Warning lamp
12 Switch
