Fault-Tracing Information (Start Here)

Fault-Tracing Information







Condition
No diagnostic trouble codes (DTCs) The fault is permanent


Possible source
- Open-circuit on wiring between control panel and control module.
- Contact resistance in terminals.
- Loose contacts in terminals.

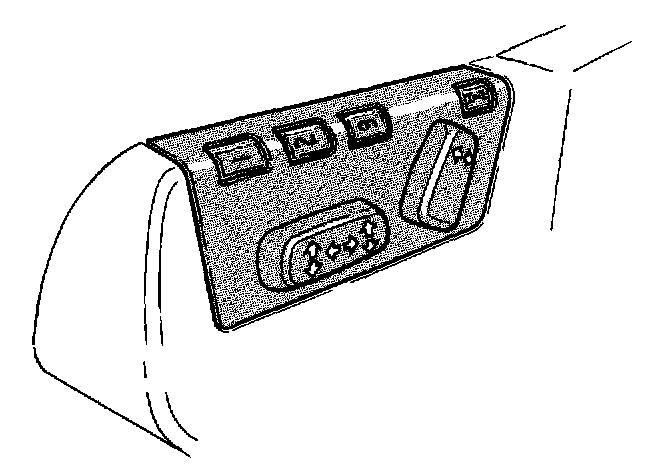

- Defective control panel.
- Defective control module.

Condition
- Seat will not move forward/backward.
- Seat will not adjust height.
- No backrest angle adjustment.
- Memory activation does not work
