Checking For an Open-Circuit, Contact Resistance and Oxidation

Checking For An Open-circuit, Contact Resistance And Oxidation

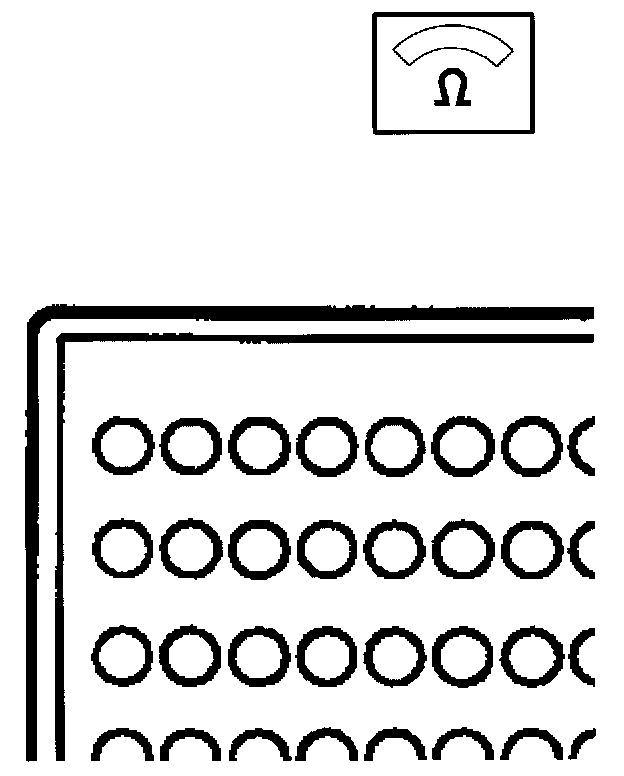

- Check lead between control module connection 31 and control point for break as per HA2 as well as contact resistance and oxidation as per HA5.

- Refer to Checking Wiring and Terminals. Checking Wiring and Terminals
- Signal table for breakout box connection to 16-pin connector D, see following page Connector D. Pinout Values and Diagnostic Parameters

Checking Control Buttons
