Auxiliary rear facing seat






























































Cars equipped with SRS/SIPS (Airbag)

Warning! Extra care must be taken when working on cars equipped with SRS/SIPS air bags. This is important to prevent:1. Personal injury2. Damage to or malfunction of the SRS/SIPS system.Work on the SRS/SIPS systems or related components must be carried out by an authorised Volvo workshop.

Is the car equipped with SRS/SIPS?
Cars with SRS are most easily recognised by the letters SRS on the steering wheel pad. If the car also has an airbag on the passenger side, the letters SRS are embossed on the dashboard above the glove compartment. SIPS decals are located on the seat panels and the windscreen.

Do not damage the SRS wiring!
Do not trap, fray, pierce or damage the SRS wiring. SRS wiring has orange casing and/or is plaited.

Steering and front suspension
The contact reel in the SRS system can easily be damaged when working on the steering wheel, steering shaft or steering gear. Refer to the SRS service information for information on carrying out such work. This is to prevent damage.

SRS warning lamp
If the SRS warning lamp lights after repairs have been carried out, take the car to an authorised Volvo workshop.

SRS collision sensor control module






S60 / V70 (00-) / S80
The collision sensor control module is located on the transmission tunnel in the centre console, beside the parking brake. The air bag inflation areas must not be obstructed. Never place any objects, such as upholstery, within these areas. The panels must be able to open in the correct way and at the right time.






WARNING!
The ignition must be in position "0" and the key removed from the ignition if any connector in the SRS system is to be disassembled. Then wait at least five minutes. Then disconnect the battery negative lead before disassembling any of the connectors.






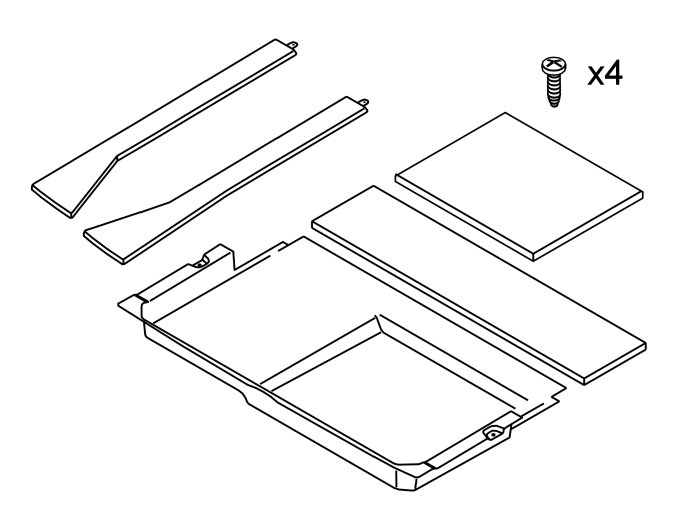

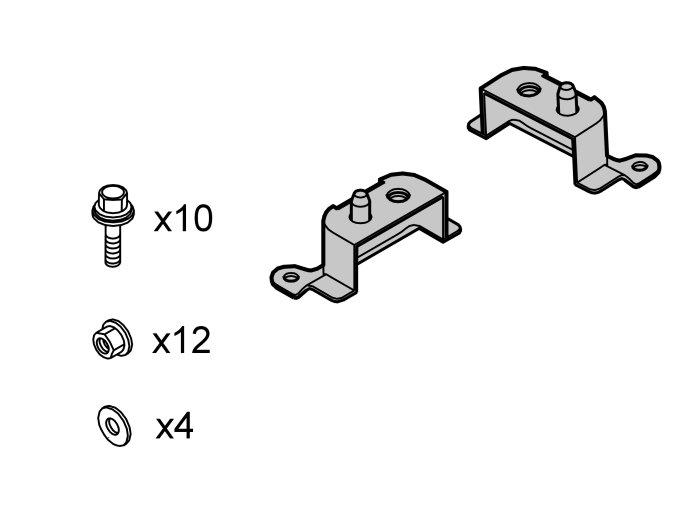

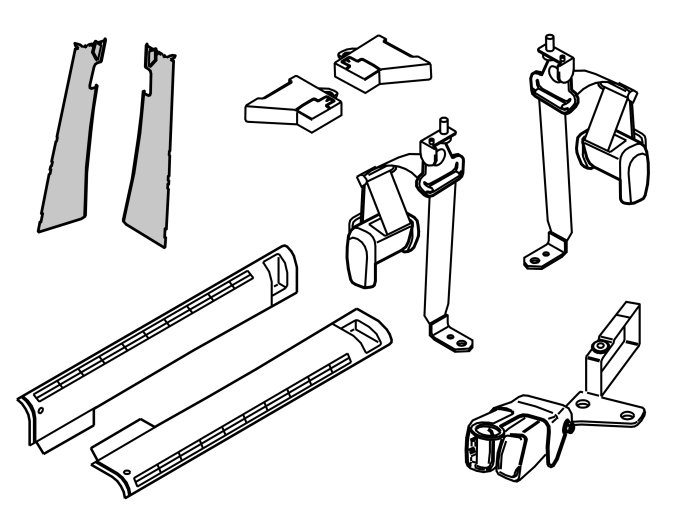

Auxiliary rear facing seat

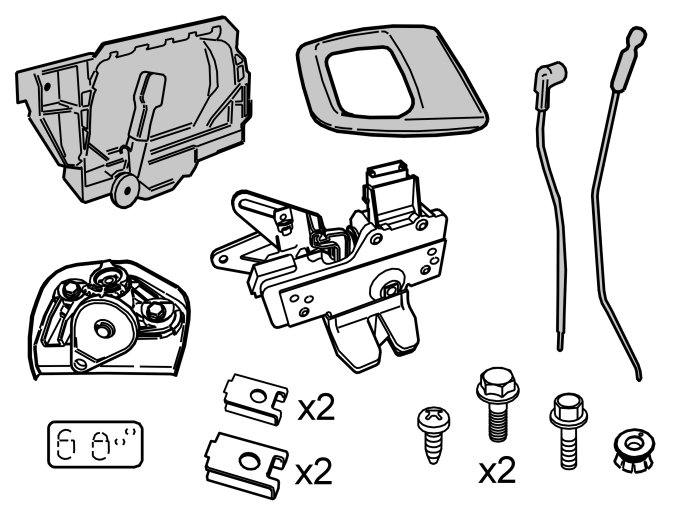

Note! The lock cylinder for the tailgate must be ordered separately.




- Remove the two floor hatches in the cargo compartment. First lift at the rear edges, then remove the floor hatches backwards. The rear floor hatch is securely installed. Detach one side at a time. Lift up the floor hatch approximately 10-15 cm (5"). Detach one corner at a time.
- Place the floor hatches to one side. The floor hatches will not be used again.




- Remove the foldable side panels on the left and right-hand sides of the cargo compartment.




- Remove the storage box from under the rear floor hatch by turning the clip on the left and right-hand sides 90°. Lift out the box. This will not be used again.




- Fold the rear seat cushion forward on both the right and left-hand sides.
- Fold the rear backrest forward on both the right and left-hand sides.




- Remove the Torx screw from the rear edge of the left and right-hand side headlining panels in the cargo compartment. Remove the headlining on the left and right-hand side
- Then pull the panel downwards. Start at the rear edge until all the clips release. Remove the panel
- Place the panel to one side. New panels are in the kit.




- Remove the cover and then the screw from the front edges of the side panels on the left and right-hand sides of the cargo compartment. Remove the side panels from the left and right-hand sides
- Pull the top of the panel out until the clips release.
- If the car is equipped with a 12V electrical socket by the right side panel. First remove the connector from the 12V electrical socket.
- Fold the panel inwards. Lift the panel out.

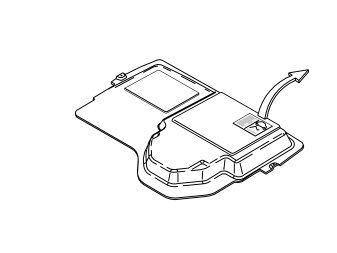

- Remove the insulation panel in the cargo compartment.

Illustration A




- Turn the insulation panel upside down. Place the insulation panel on an underlay

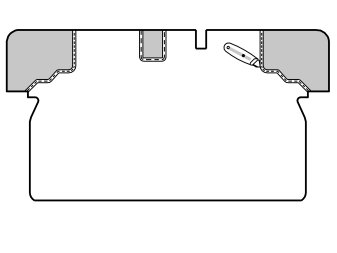

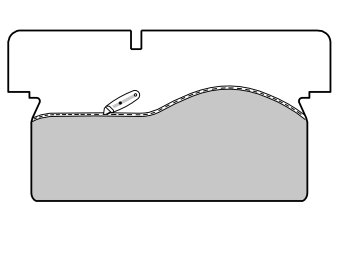

- Cut out the centre of the embossings as illustrated.

Illustration B




- Turn the insulation panel so that the black side faces upwards.
- Cut out the centre of the embossings as illustrated.




- Remove the two mountings (1) for the front floor hatch on the right and left hand sides. The front floor hatch will not to be used again.




- Tear off a small piece of the carpet following the existing perforations on the right and left-hand sides beside the shock absorber mountings.

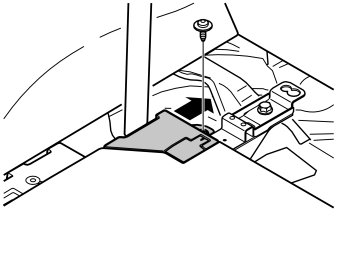

- Remove the two screws from the bracket for the rear floor hatch mounting.
- Remove the bracket. Place the bracket to one side. The bracket will not be used again
- Repeat the operation on the other side.




- Remove the screw on the left-hand side of the tailgate sill.

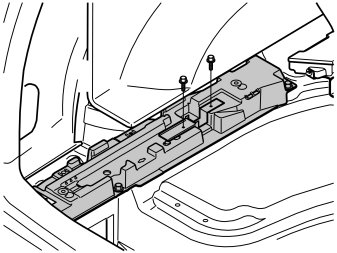

- Remove the three screws from the left-hand floor support.
- If the car is equipped with a CD or RTI, remove the three screws for the CD bracket.
- Lift up the front edge of the floor support. Pull the floor support forward
- Repeat the operation on the other side.

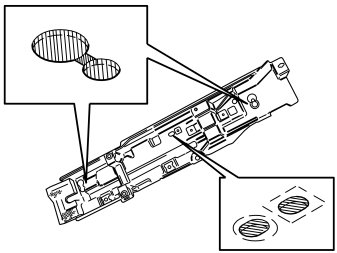

- Turn the floor support upside down. Drill and file out at the existing embossings in the front and rear edges of the floor support. Also drill and file in the centre.

Note! Do not file out more than the embossings show on the underneath of the panel.

- Repeat the operation on the other side.




- Press the clips (from the kit) into the small holes on the front and rear edges of the two floor supports as illustrated.

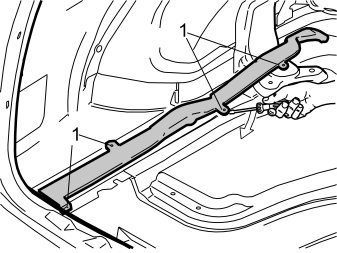

- Carefully pry up the left-hand cable duct. Use a screwdriver. Remove the left-hand cable duct from the mounting points (1).
- Repeat the operation on the other side.




- Carefully lift up the cable duct slightly. Position a shim between the cable duct and floor to support the cable duct

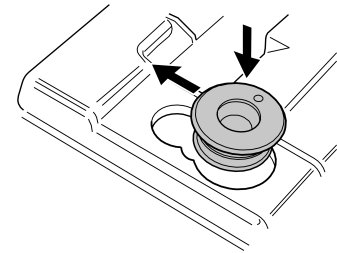

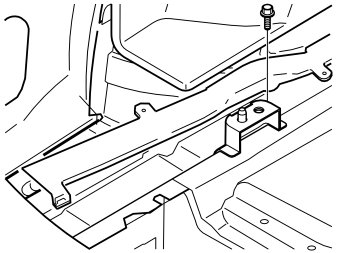

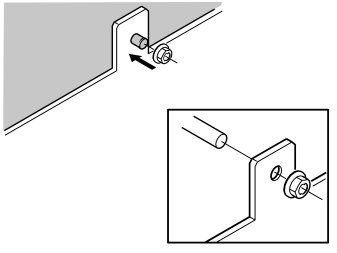

- Position a mounting (from the kit) under the cable duct in the guide hole and over the weld nut in the floor.
- Take a flange screw from the kit and tighten the bracket into the floor. Torque tighten to 50 Nm (37 ft.lbf).
- Press the cable duct into place again.
- Repeat the operation on the other side.




- Reinstall the left and right-hand floor supports. Tighten the floor supports using the three screws in the floor and the screw through the panel for the tail gate sill. If the car is equipped with a CD or RTI, reinstall the three screws for the CD bracket.

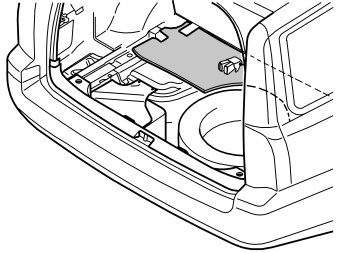

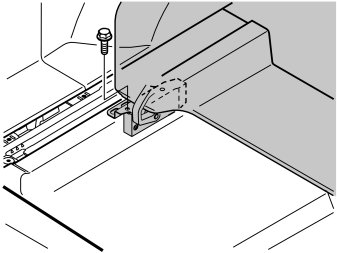

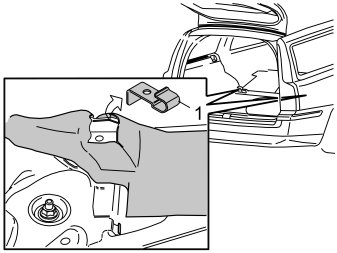

- Remove the blind cover plugs for the holes (1) in front of the spare wheel well.
- Take the buckles (2) from the kit and install them with two flange screws (3) from the kit in the existing holes in front of the spare wheel well. Torque tighten to 50 Nm (37 ft.lbf).

Note! Remove and discard the yellow transportation protection.

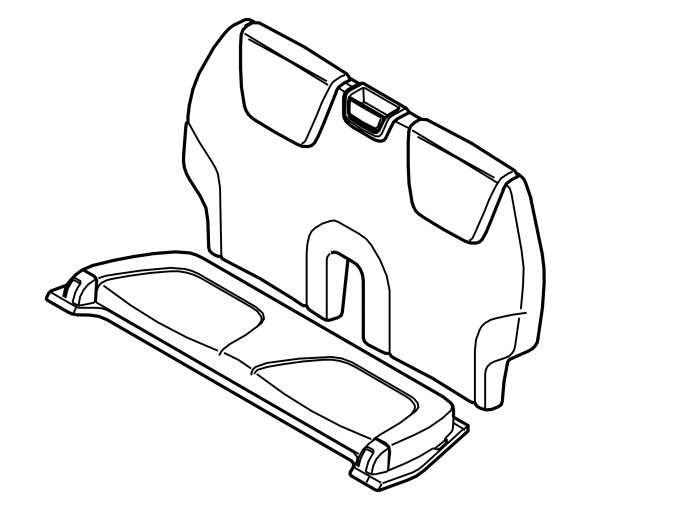

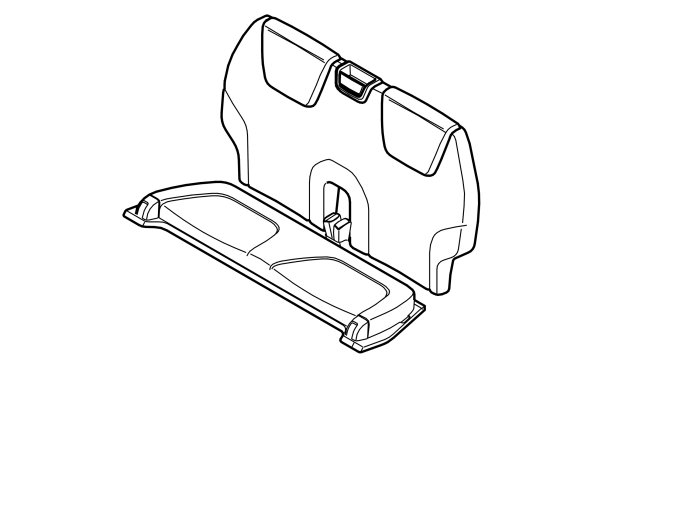

- Take the seat cushion from the kit. Locate the mountings in the mountings for the floor support on the right and left-hand sides
- Take two flange screws with washers from the kit and tighten the seat cushion into the brackets, and at the same time correctly adjust the fit between the tailgate sill trim panel and the rear edge of the seat cushion. Torque tighten the screws to 50 Nm (37 ft.lbf).




- Reinstall the cut out insulation panel in the front edge of the cargo compartment, under the seat belt anchorages.





Does not apply to the V70 XC (00-)
- Position the new "base plate" (from the kit) upside down

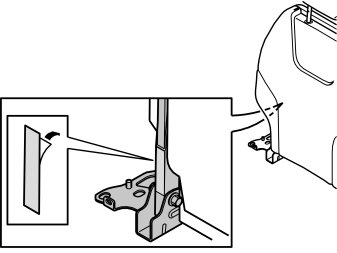

- Carefully remove the decal for the tow hitch (if applicable) - the decal will be reused.





Does not apply to the V70 XC (00-)

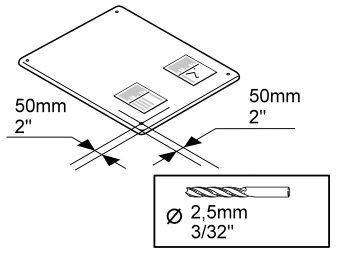

- Remove the wood screw from the kit. Mark out the four holes for pre-drilling as illustrated
- Drill out the holes using a - 2.5 mm (3/32") diameter drill bit according to the marked holes.





Does not apply to the V70 XC (00-)
- Position the "base plate" to obtain a counterhold. Align the new wooden plate with the existing plate. Tighten the wooden plate using the four wooden screws from the kit.
- There are two decals on the wooden plate. Remove the decal that does not correspond to the drive system for the car (2WD/AWD).
- Securely bond the previously removed decal for the tow hitch.

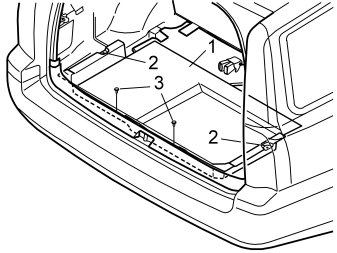

- Position the new "base plate" (1) (from the kit) in the place previously occupied by the storage box.
- Lock the base plate using the two knobs (2). Press the base plate into position at the rear edge into the existing holes in the tailgate sill panel. Use the clips (3).

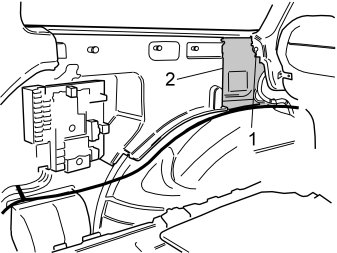

- Remove the clips (1) from the front edges of the insulation panels on the right and left-hand sides by the rear wheel wells, behind the C-posts.

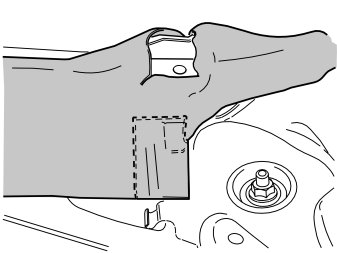

- Cut off the front section of the panel at the perforations (2).




- Remove the screw (1) in the cantrail at the mountings for the cargo net on the left and right-hand sides of the cargo compartment.

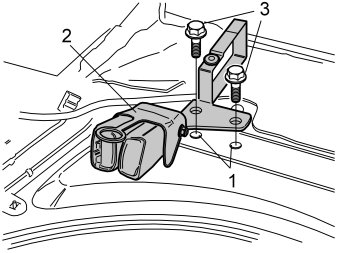

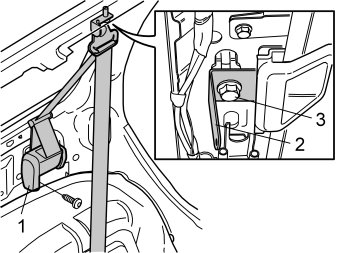

- Take the left safety belt reel (1). Remove the yellow plastic washer on the screw
- Install the reel in the existing hole on the lower / front edge of the rear side window as illustrated.

Note! The locating pin on the reverse of the reel.

- Tighten in the inertia reel and torque tighten to 50 Nm (37 ft.lbf), while pressing the inertia reel forward.

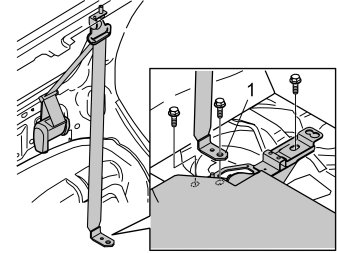

- Remove the yellow plastic washer from the screw on the upper seat belt guide (2).
- Tighten in the belt guide with the screw (3) in the existing hole. Torque tighten to 50 Nm (37 ft.lbf).

Note! Do not damage the yellow cable for the SRS.

- Repeat the operation on the other side.




- Remove the transportation protection on the backrest hinges, on the right and left and sides.




- Take the backrest cushion from the kit. Position the mountings over the three mounting holes on the inside of the upper mountings for the rear shock absorbers. Check that the insulation panel is not positioned between the brackets for the floor and backrest cushion
- Insert the four flanged screws and washers (from the kit) into the front and rear holes on the left and right-hand sides. Do not tighten fully yet.
- Take the left-hand seat belt (marked L on the face of the seat belt reel) from the kit.
- Remove the yellow locking washer from the screw in the mounting on one end of the seat belt.

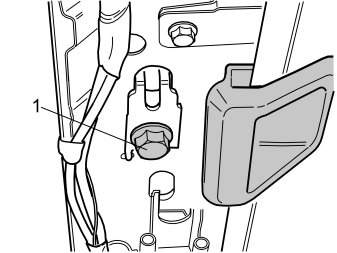

- Install the mounting (1) in the remaining hole by the left-hand shock absorber mounting.
- Repeat the operation with the right-hand seat belt.
- Adjust the backrest cushion so that it aligns in the cut out in the seat cushion.
- Tighten all six screws and torque tighten to 50 Nm (37 ft.lbf).




- Take the left-hand protective cover for the safety belt mountings from the kit. Install as illustrated
- Insert the locating pin for the protective cover in the corresponding mounting under the backrest cushion. Fold the protective cover down
- Tighten using the screw from the kit.
- Repeat the operation on the other side.

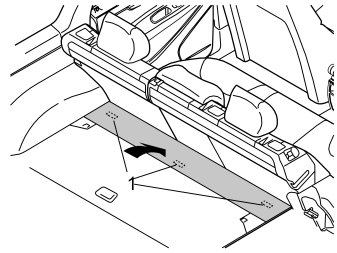

- Press the front floor panel (from the kit) into the three clips (1).




- Take the side panels from the kit. Drill out the centre of the six mounting points. Use an -8 mm (5/16") diameter drill bit.
- Do not damage the lower section of the panel which will be used again.
- Remove the upper section from the lower section. Place to one side
- Repeat the operation on the other side.




- Take a new upper section of the panel from the kit. Press the new upper section of the panel into the holes in the lower section of the panel.
- Take six steel nuts from the kit. Tighten the upper section of the panel
- Repeat the operation on the other side.
