Seat Cushion Padding

Seat cushion padding

Replacing seat cushion padding
Carry out Upholstery, seat cushion, replacing Upholstery, Seat Cushion, Replacing.

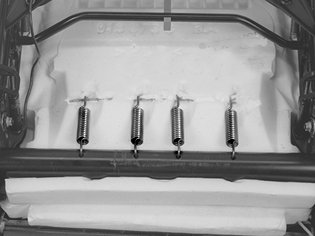

Disconnect the four springs on the underside of the cushion.
Remove backrest wiring according to Heater pad, replacing Front Seat.

Replace padding.
Install new seat heater element according to Heater pad, replacing Front Seat.

Install:
In reverse order.
Upholstery, seat cushion, replacing Upholstery, Seat Cushion, Replacing
