Bracket (Cross Stay)

Bracket (cross stay)

Replacing bracket (cross stay)

Hint: Adjust the seat to the upper position at front and back, otherwise the bracket cannot be removed.

Remove the seat from the car according to Lifting seats in and out Removal and Replacement.

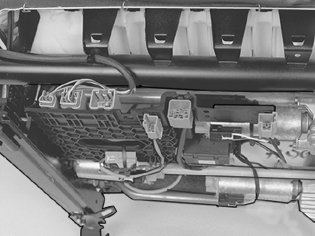

Remove one screw.
Press out the clip in the bracket.
Disconnect connectors.
Lift the panel up.
Remove the bracket.

Install:
In reverse order and according to Lifting seats in and out. Removal and Replacement
