Replacing the Seat Rail

Replacing the seat rail

Removal

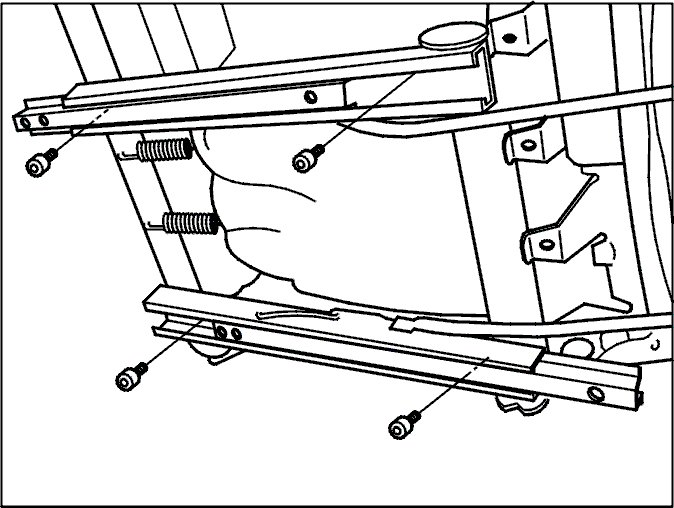

Remove:
- the seat. See Replacing the seat Replacing the Seat
- the 4 screws.

Installation
In reverse order
Tighten the screw for the seat rail. Tighten to 25 Nm.

Note! Thread sealant 115 1053 must be applied to the screws for the seat and turn table.
