Installing the Adapter Cable

Installing the adapter cable

Preparations
Prepare to install the adapter cable (P/N 9452668) as follows:
- Move the front seats as far forward as possible
- Lift the backrests as high as possible
- Ignition off.

Connecting the adapter cable

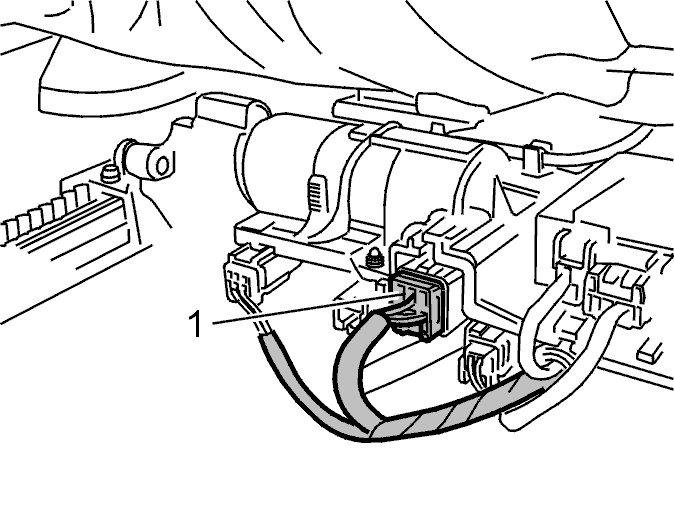

- Disconnect the connector for the seat heater (1).

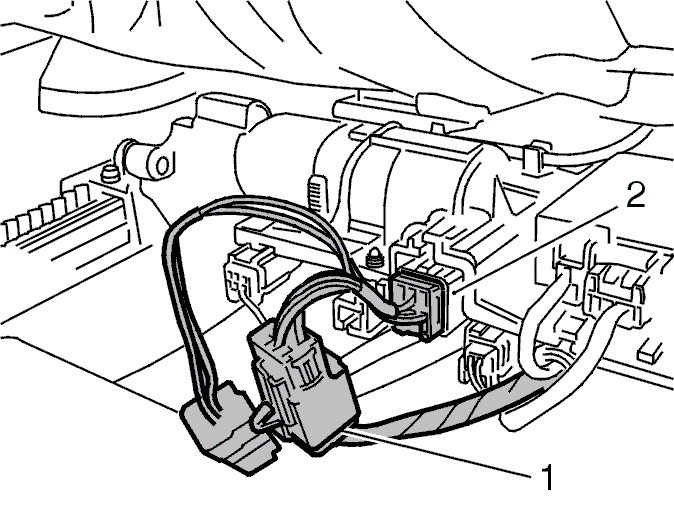

- Connect the adapter cable to the switch in the seat (2)
- Connect the adapter cable to the switch for the seat heater (1).

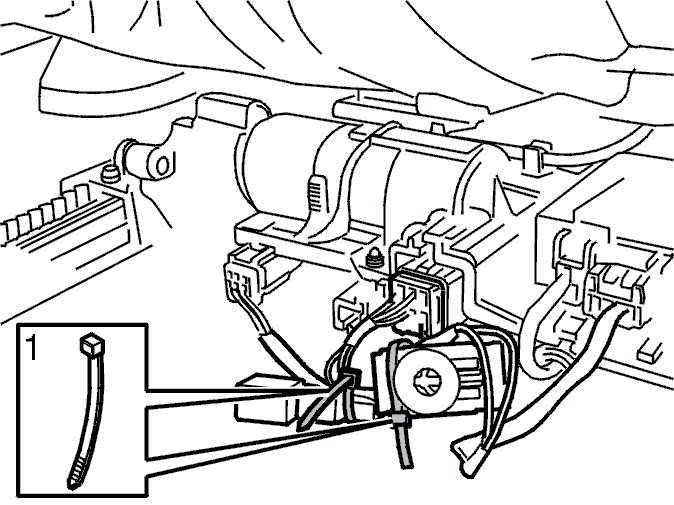

- Secure the wiring and resistor using tie straps (1). Ensure that the wiring and connectors do not touch other components and are secure.
