Lumbar Support Adjustment Knob

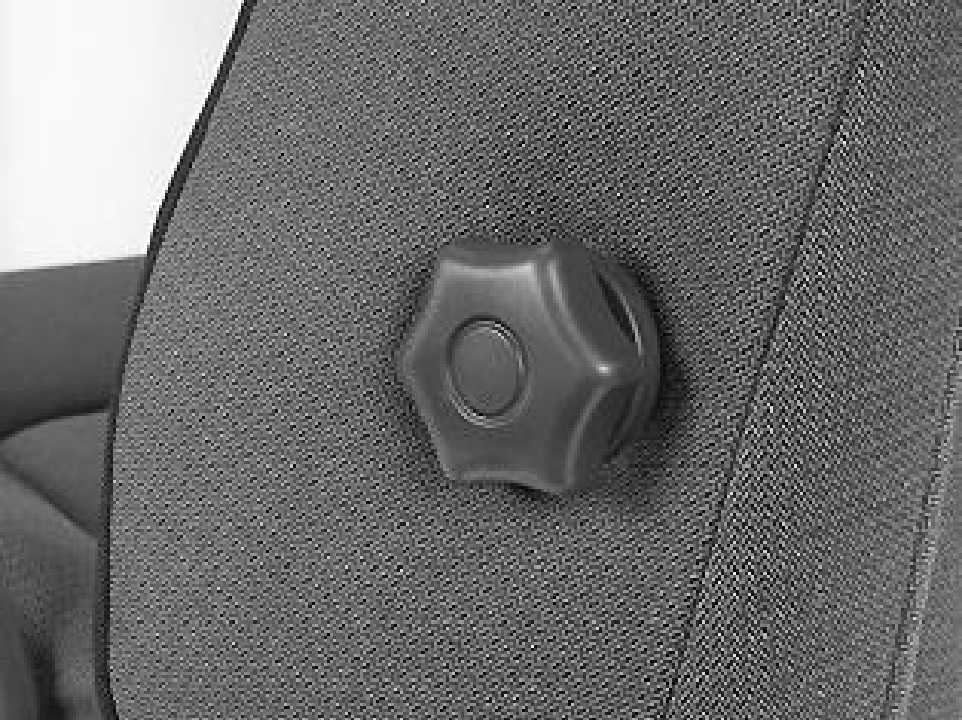

Replacing The Lumbar Support Adjustment Knob







- Screw the knob anti-clockwise until stop.
- Continue screwing anti-clockwise and pull out hard.

Install:
Press the knob on and screw the knob into place.

Lumbar support strap
- Carry out Lifting the front seats in and out and Lumbar support adjustment knob.
- Pull the side piece straight out.
- Carry out Backrest adjustment knob.







- Fold the backrest or position the backrest in the forward angled position.
- Slacken off tension in lumbar support.

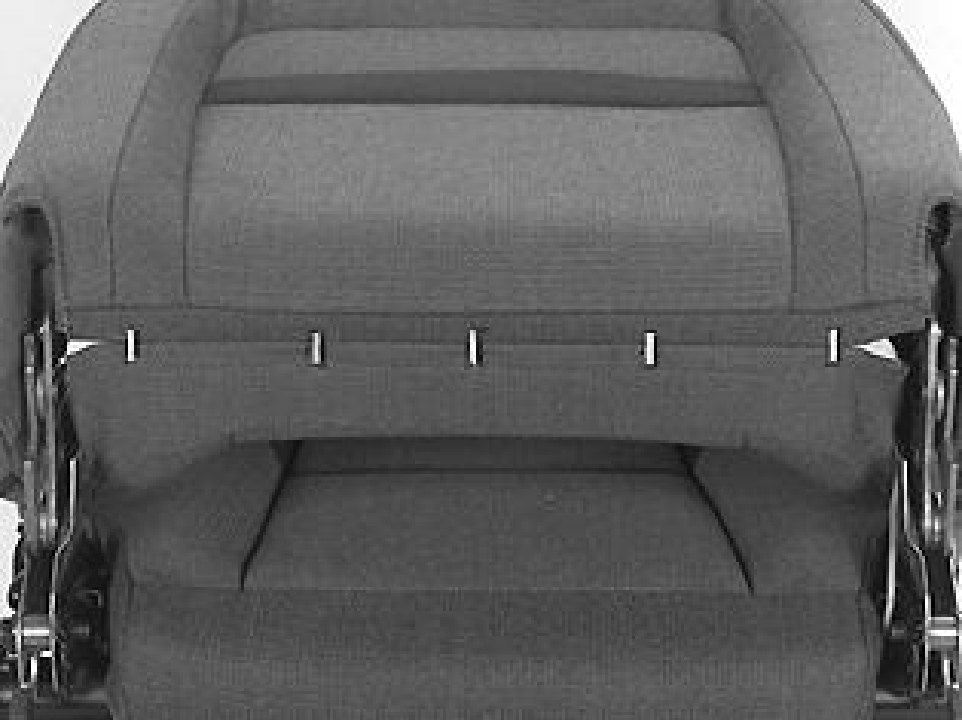

- Remove the five half moon clips at the bottom edge of the backrest.

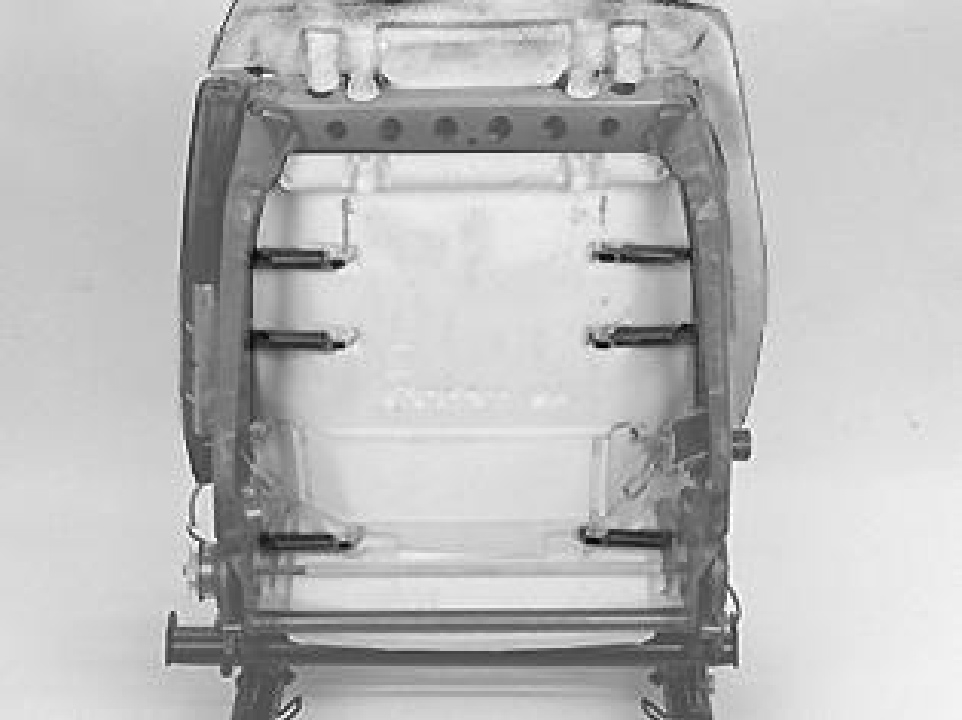

- Disconnect the springs from the mountings in the backrest frame and lumbar support adjustment mechanism.
- Replace damaged components.

Install:
In reverse order.
