Sunroof / Moonroof Weatherstrip: Service and Repair

Apron Molding Sun Roof, Replacement

NOTE: The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

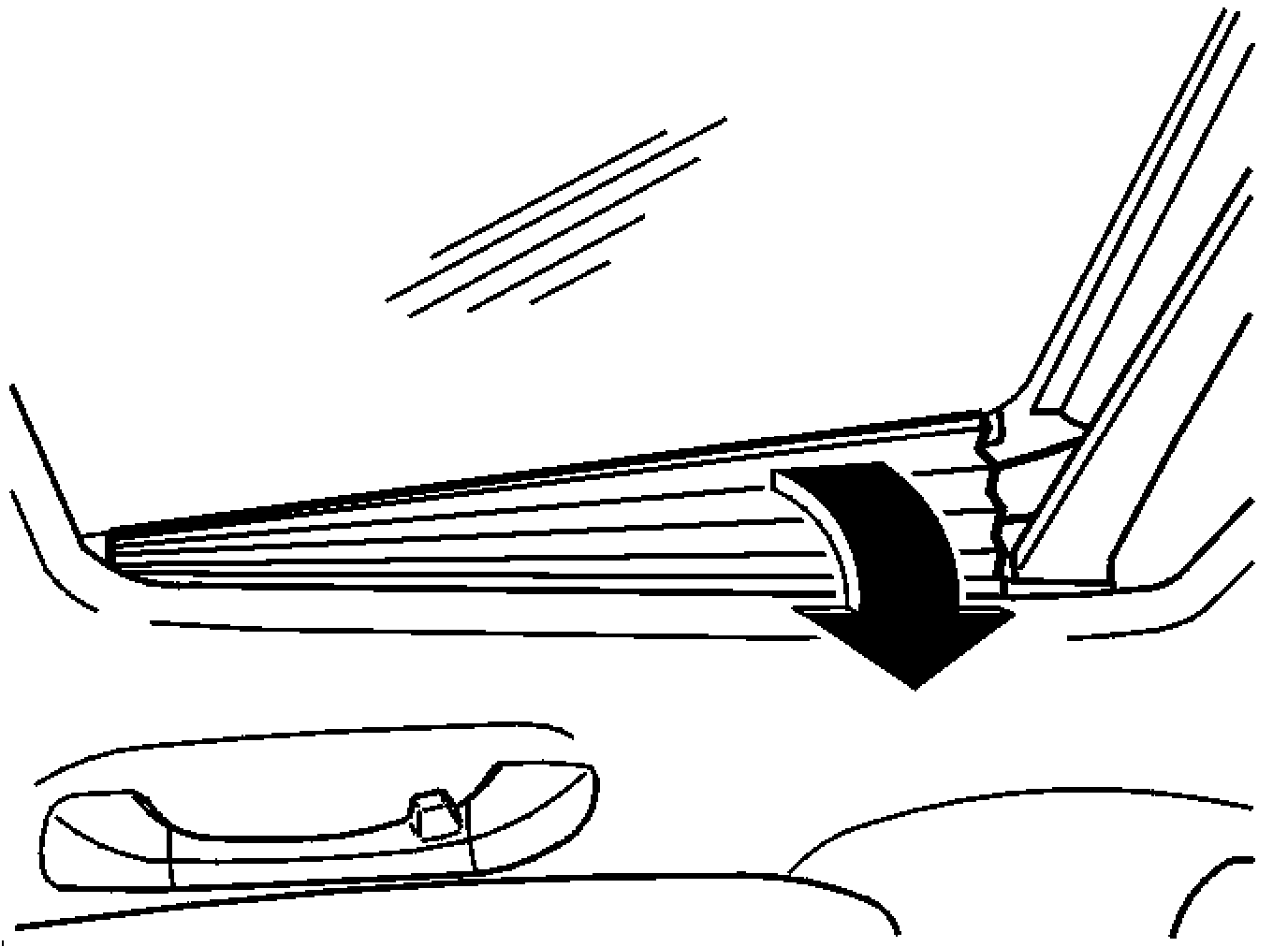

Removing the apron molding for the sun roof







- The sun roof must be in the half open position.
- Pull the apron molding inwards into the car.
- Detach the upper edge of the apron molding.
- Unhook the lower edge of the apron molding.
- Remove the apron molding.

Installing apron molding for the sun roof
Hook the apron molding into place at the top and bottom edges.
