Styling Roof Rails/Rails, Replacing

Styling roof rails/rails, replacing

Removing the styling roof rails

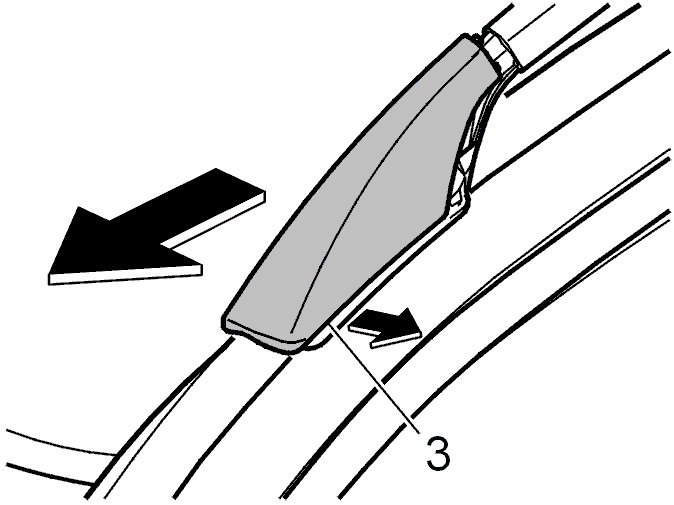

- Remove the front and rear covers by pulling the covers to the sides until the tab is released (3)
- Pull forwards.

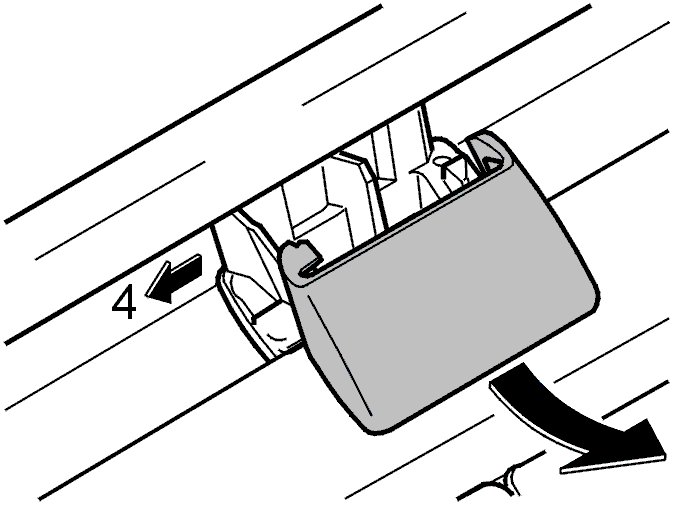

- Remove the center cover by grasping the lower corner and pulling straight up and to the side (4).





Remove:

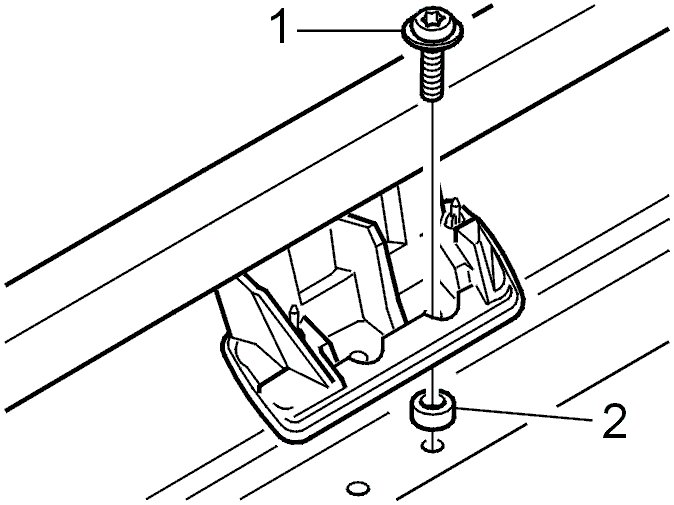

- Screw (1)
- Sealing washers (2).

Note! Sealing washers and screws must be replaced for reinstallation.

Installing the styling roof rails

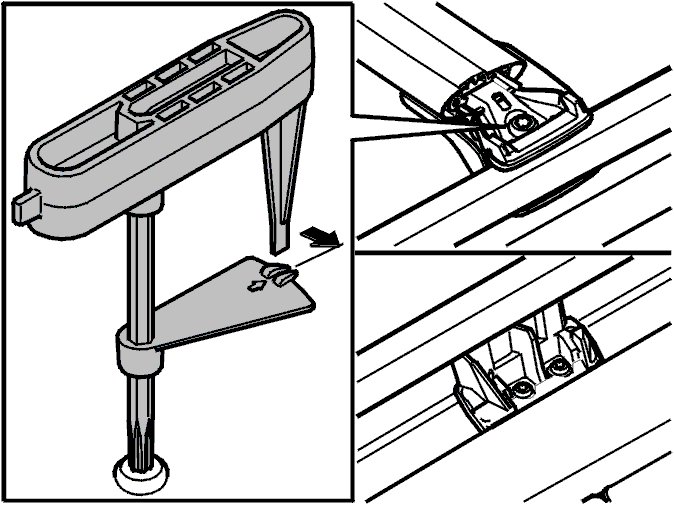

- Start by installing the center foot
- Tighten the screw to: 6Nm.

Note! Check that the screw threads engage.

Note! Do not exceed the stated torque. The gasket may no longer seal correctly.

If the roof rails and load carriers have carried a heavy load: check the tightening torques.
